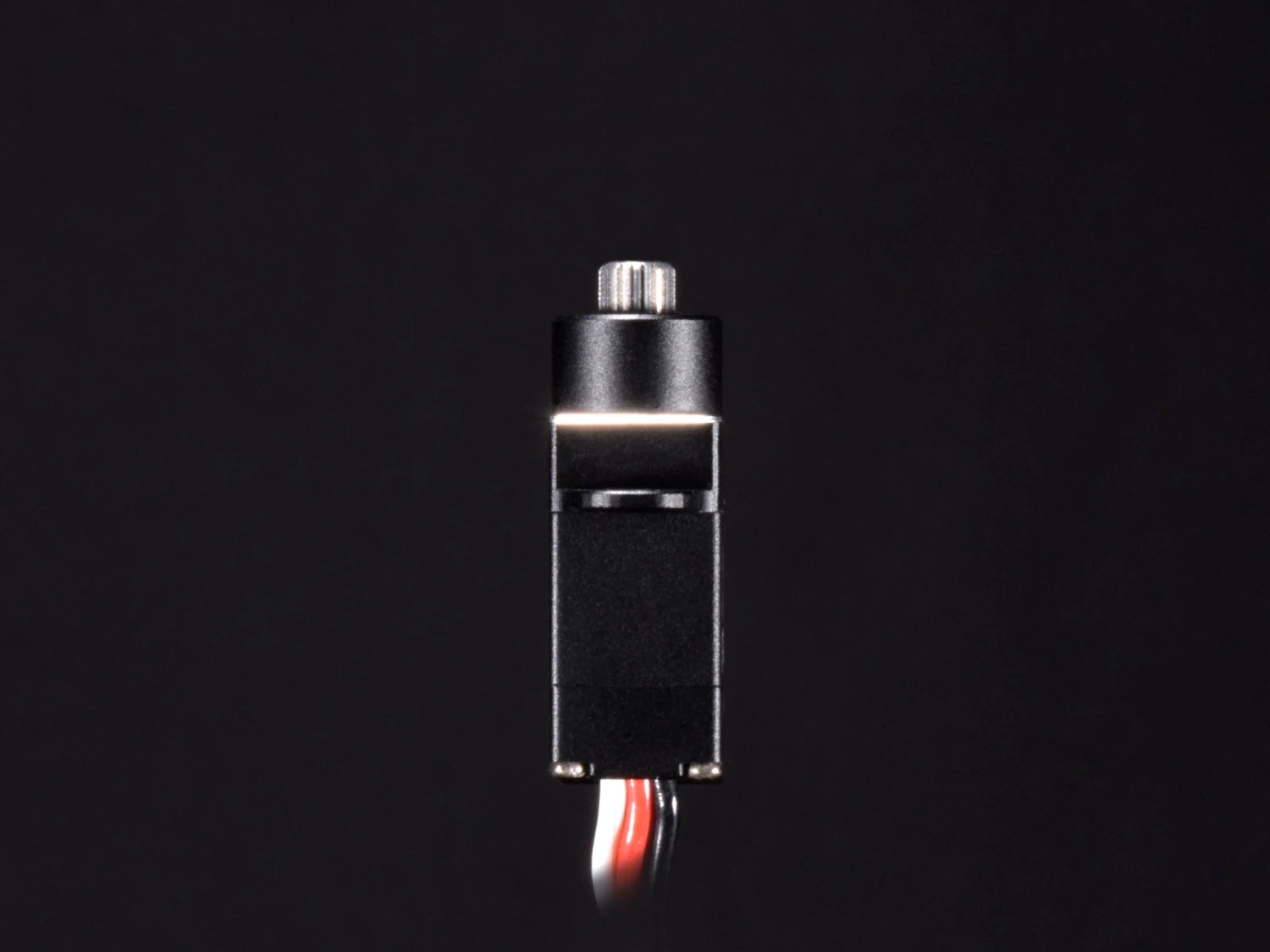

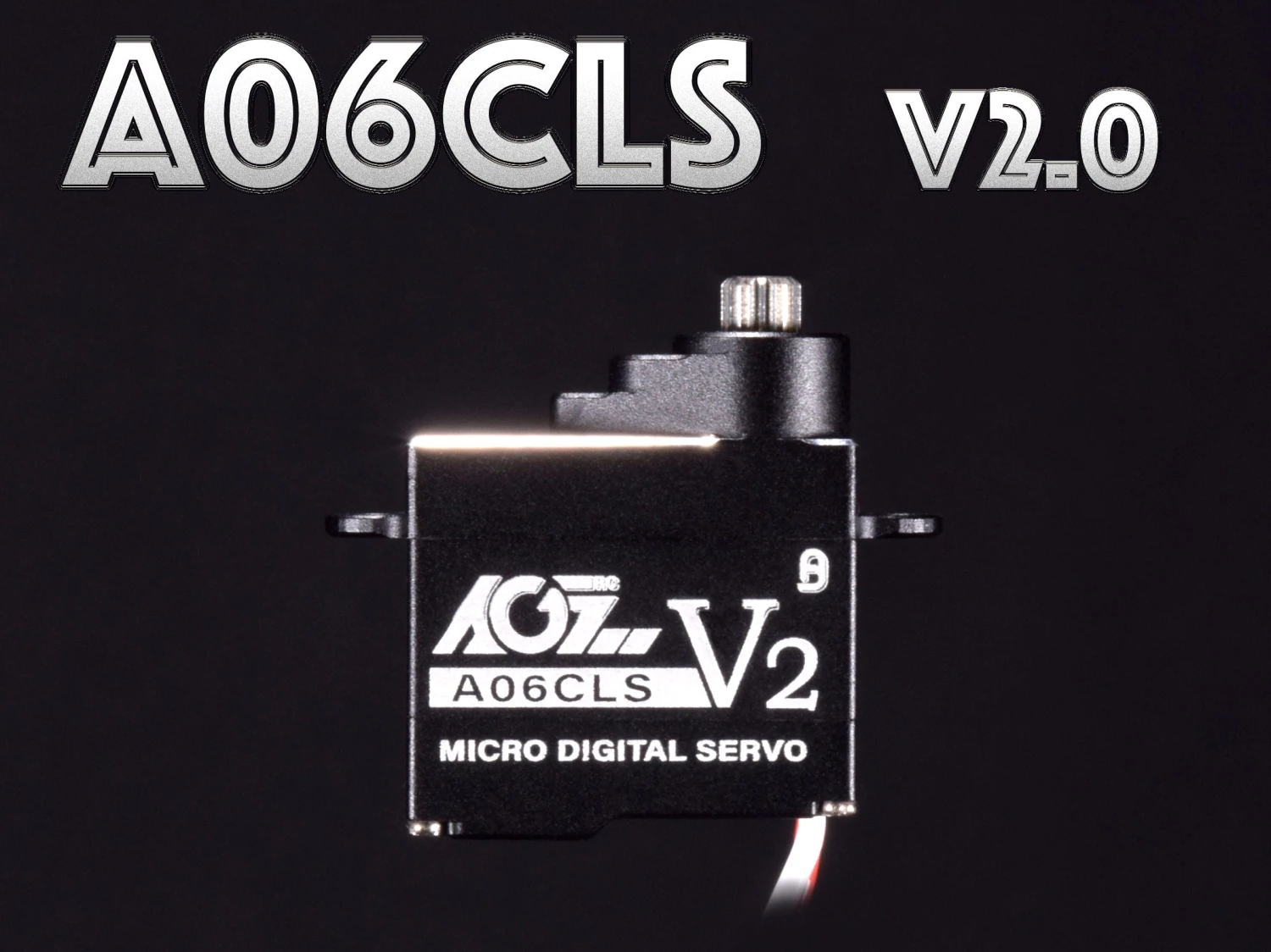

AGF A06CLS V2 3.0 Kg (41 Oz In) 0.052 Sec – 7g

Aloft Hobbies is excited to finally find what looks like an outstanding little servo for a great price. So far very pleased with the quality on these. The AGF A06CLS V2 is an excellent option for those looking for a less expensive, yet high quality all metal 8mm width servo.

Inside the CNC aluminum case is a set of durable titanium gears, with super tight tolerances for outstanding centering and precision and a coreless motor, all driven by a programable digital circuit. The output spline is supported by a quality ball bearing too. It also features a fairly wide voltage range, up to 3kg of torque and blazing speed across the board. We’re certain it’ll be an excellent servo for your needs.

Yes, they work fine on 1S voltages. We have heard from people running these in 1 meter gliders with very good results.

Normal servo plug (Careful other places sell it with an RC car connector.)

Specifications:

Servo Type	Digital
Gear Type	Metal (Titanium)
Motor Type	Coreless
Stall Torque	1.8Kg-cm (24.9 oz-in) @4.8V 2.2Kg-cm (30.5 oz-in) @6.0V 2.6Kg-cm (36.1 oz-in) @7.2V 3.0Kg-cm (41 oz-in) @8.4V
Speed	0.075sec/60°@4.8V 0.066sec/60°@6.0V 0.058sec/60°@7.2V 0.052sec/60°@8.4V
Output Spline	4mm, 20T
Voltage Range	4.8 – 8.4v (2s LiPo)
Dimensions	20 x 8 x 17.8mm
Weight	7g
