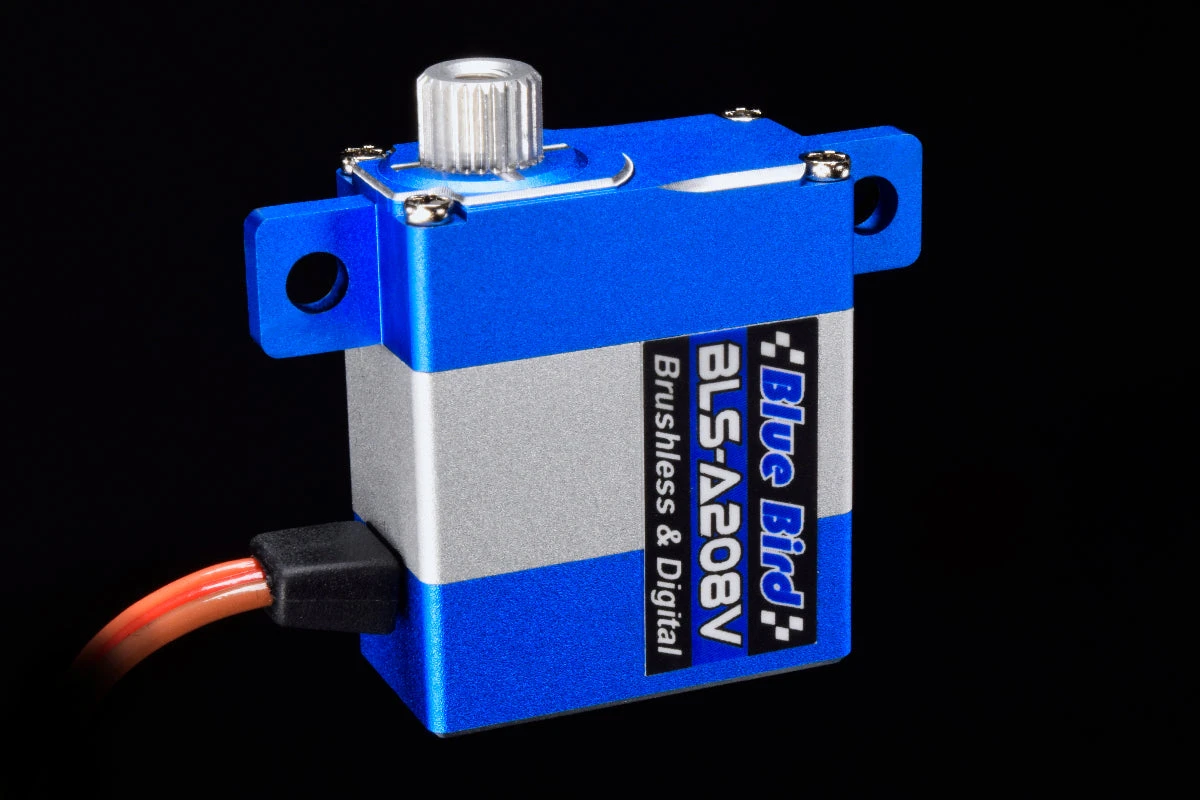

Blue Bird BLS-A208V 8.2kg-cm (113.9oz-in) 0.05sec – 60°

Brushless Motor, Digital Control, High Voltage. 0.05 / 60° Transit Time = Fast!

This servo is at home in:

• Medium sized Airplanes
• 250 / 450 Class Heli’s
• 1/12 scale Cars

Safety Systems:

• Soft Start Protection

Specifications:

• Torque @ 6.0V 6.2 kg-cm / 86.1 oz-in
• Torque @ 7.4V 7.3 kg-cm / 101.4 oz-in
• Torque @ 8.4V 8.2 kg-cm / 113.9 oz-in
• Speed @ 6.0V 0.07 sec / 60°
• Speed @ 7.4V 0.06 sec / 60°
• Speed At 8.4V 0.05 sec / 60°

Power Supply:

• Operating Voltage Range – 4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S Li-Poly / 2S Li-Fe)

Control Specifications:

• Control System – Digital Controller / AD 12-Bits Resolution ( 4096 Steps )
• Frequency – 333Hz / Neutral: 1520us or 1520us
• Dead Band Width – 0.001ms ( Default：1us)

Mechanical Specifications:

• Ball Bearings – Dual
• Gears – Metal Gear
• Servo Case – One-Piece Aluminum CNC
• Motor – Premium Brushless Motor
• Horn / Gear Spline – 25 Teeth ( Same as F-Type )

Dimensions:

• 23 x 12 x 27.25 mm / 0.9 x 0.47 x 1.07 in

Weight:

• • 22.0 ± 0.5 grams / 0.78 oz
