Blue Bird Servos utilize quality components and materials, making them an excellent choice for your next project.

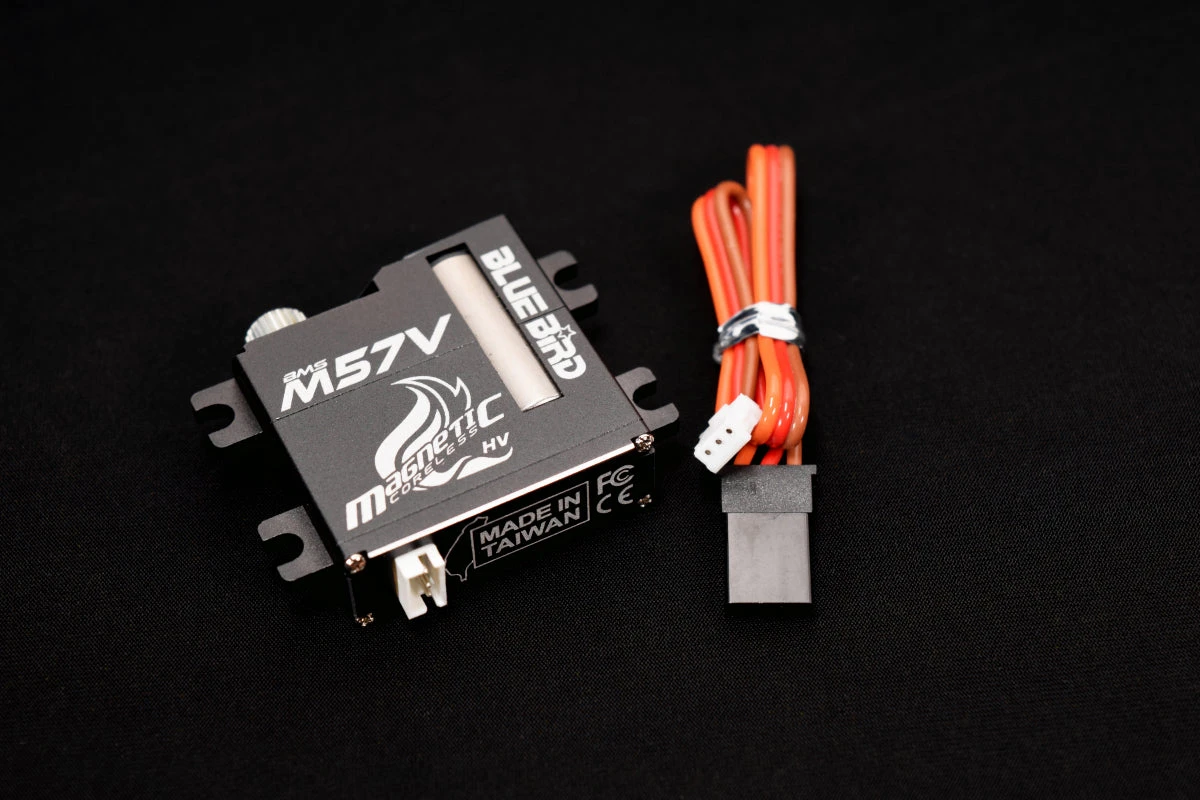

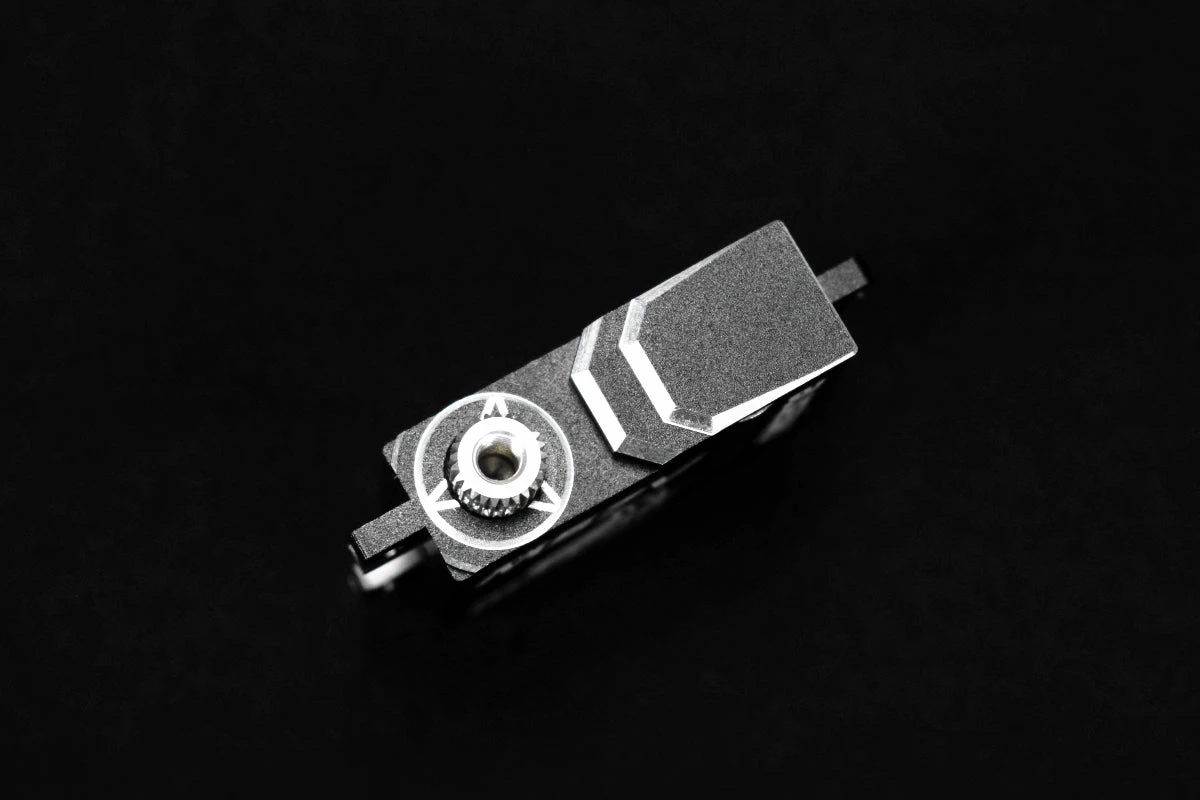

From Blue Bird Model comes the BMS-M57V Hall Effect wing servo, ready to effortlessly move your control surfaces. Inside is a powerful coreless motor and a beefy metal gear train, riding on not one or two, but three ball bearings. But the main feature of this servo is a contactless Hall Effect sensor in place of a potentiometer for better longevity. It also features a removable servo cable, great torque and plenty of speed and is only 10mm thick, making it a great choice for wherever space is sparse.

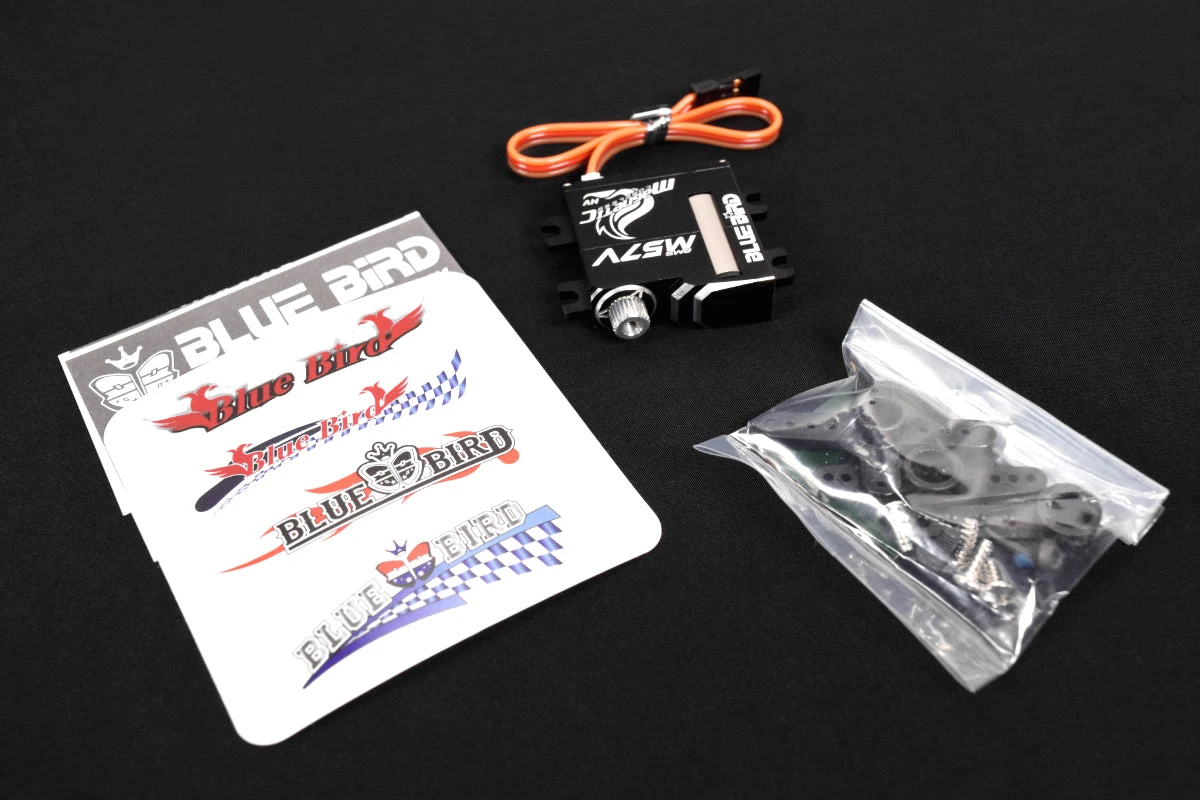

Included Accessories:
- 1x Single output arm
- 1x Double output arm
- 1x Quad output arm
- 1x Adhesive foam pad
- Mounting Hardware
Specs:
| Servo Type | Digital |
| Gear Type | Metal |
| Motor Type | Coreless |
| Stall Torque | 8.1Kg-cm (112.3 oz-in) @6V |
| Speed | 0.13sec/60°@6V 0.10sec/60°@7.4V 0.09sec/60°@8.4V |
| Deadband | 0.001ms (1 us) |
| Voltage Range | 6.0 – 8.4V (2s LiPo) |
| Weight | 22.5g |

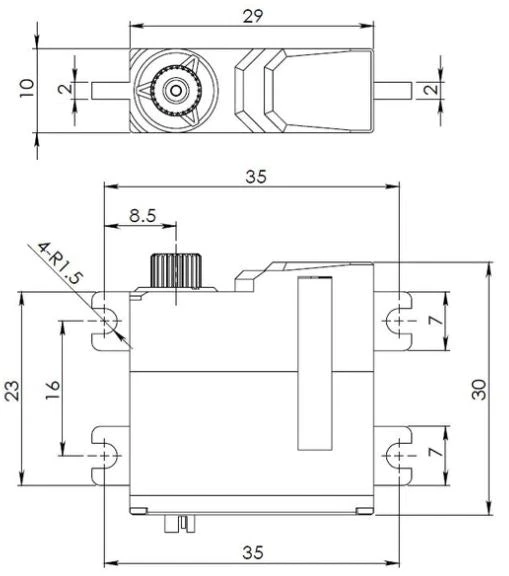

| Dimensions | 29 x 10 x 30mm |
