Sale!
Corona SB3029 Servo – 4.5 Kg (62.4 Oz-in), 0.11 Sec – 32g
Original price was: $12.00.$8.40Current price is: $8.40.
- The best quality products, always.
- Sustainable materials, for a better tomorrow.
- Control the delivery date and try to deliver it in the fastest time
- Safe and Secure Shopping

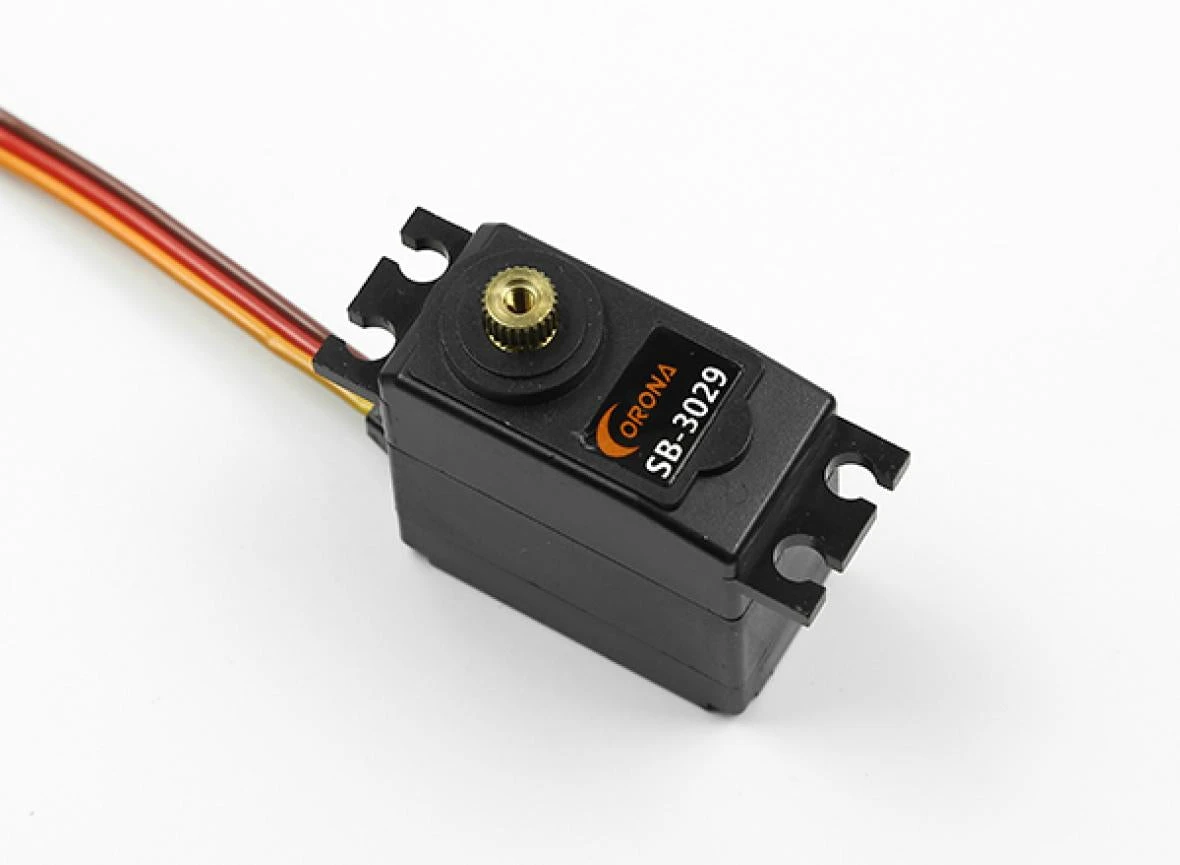

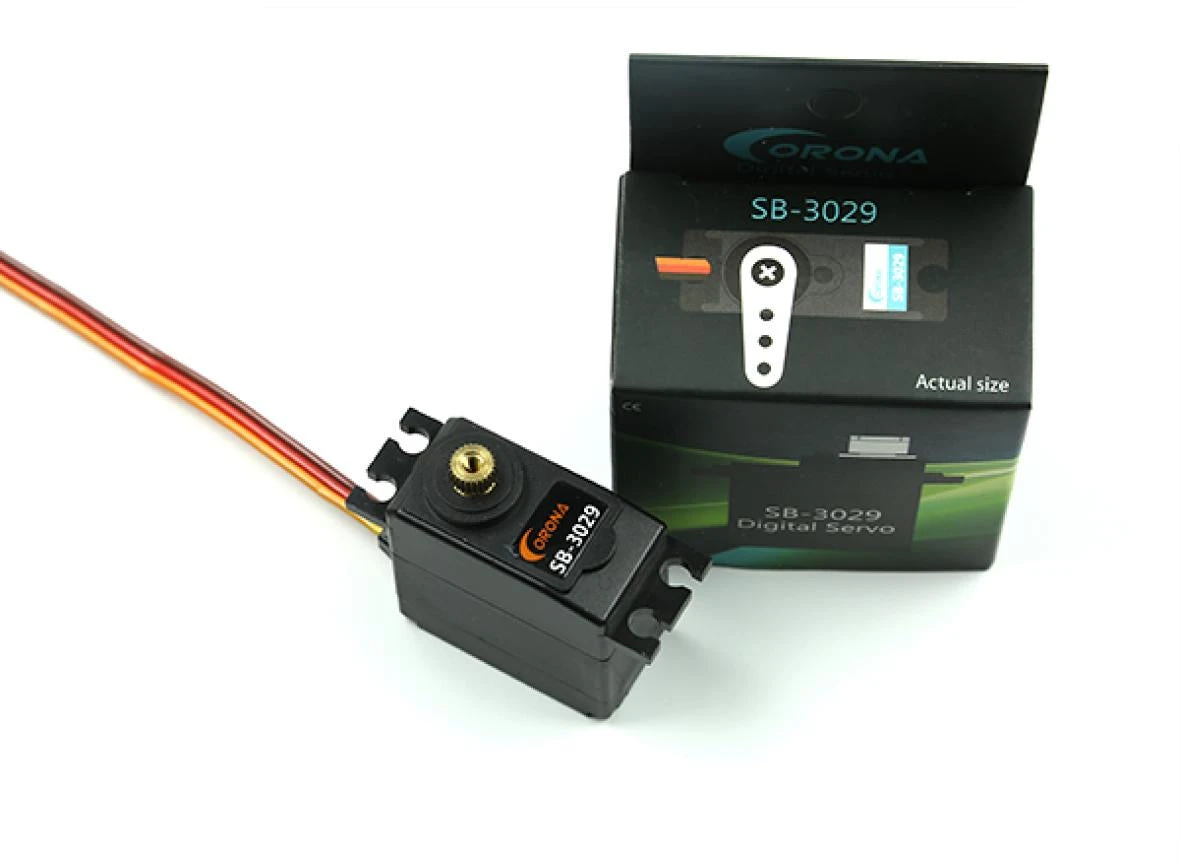

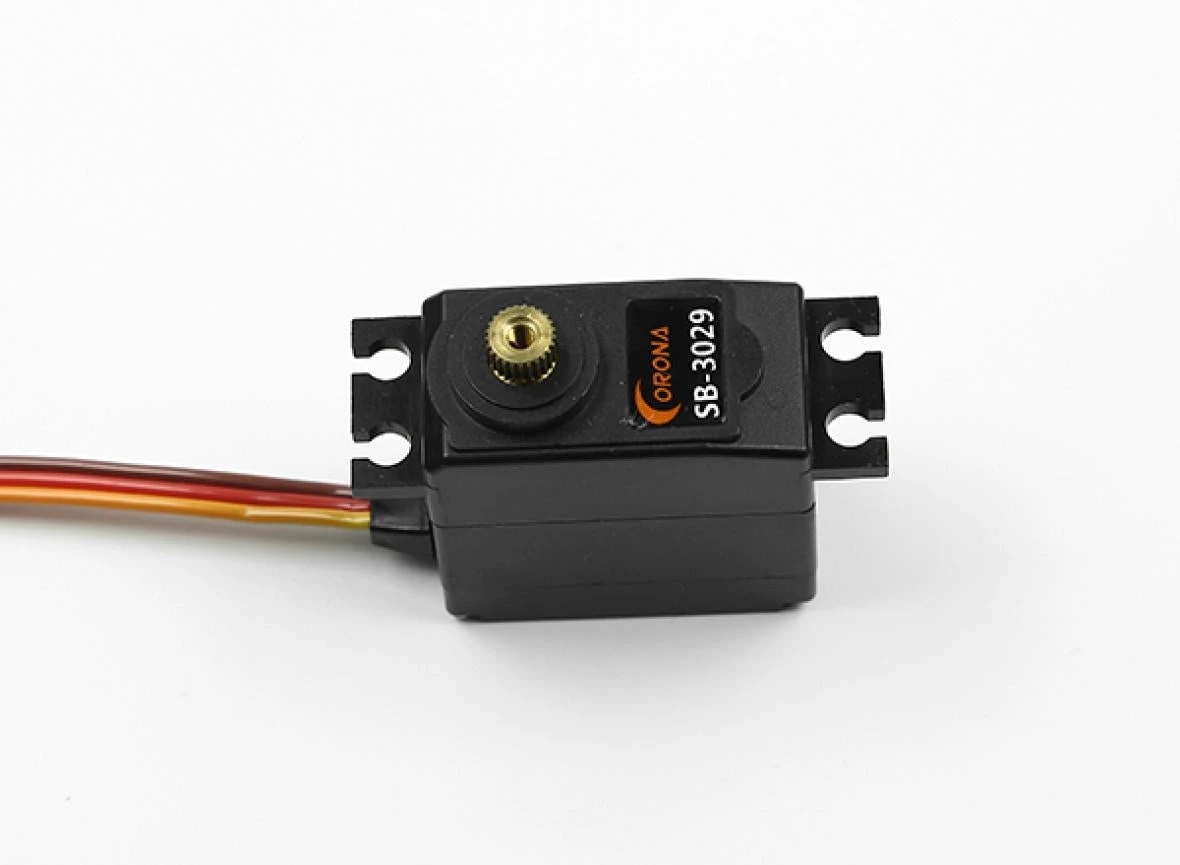

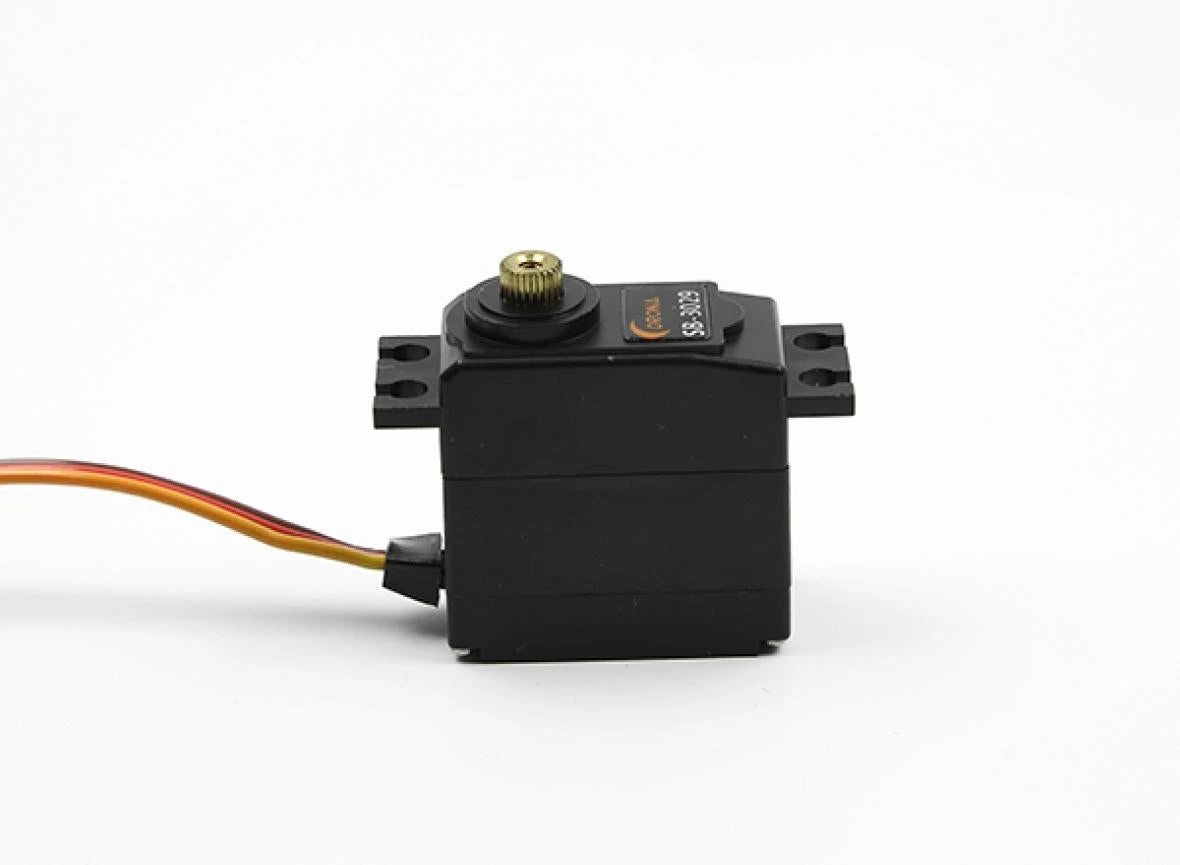

The Corona SB3029 S-BUS Servo.
This servo can use both PWM and S-Bus signals.
The S-bus servo channel can be programmed using the Corona CSBP-1 SBUS Servo Programming card.
| GEAR TYPE | Metal |
|---|---|
| STALL TORQUE | 3.8kg.cm | 4.5kg.cm |
| SPEED | 0.11sec.60º | 0.12sec.60º |
| DIMENSIONS | 32.5 x 17 x 34.5mm (1.28″ x 0.67″ x 1.36″) |
| WEIGHT | 32g (1.1oz) |
| WIRE / PLUG LENGTH | 300mm |
| OPERATING TEMPERATURE | -20℃～+60℃ |
| OPERATING VOLTAGE | 4.8V | 6.0V |
| POSITION SENSOR | 5 wiper / Indirect Drive |
| BEARINGS | MR106 |
| DEAD BAND | ≤3uSec |
| SERVO TRAVEL | 40º/one side pulse traveling 400us |
| OPERATING CURRENT | 300mA | 400mA |
