Dualsky’s 10mm, high torque wing servo.

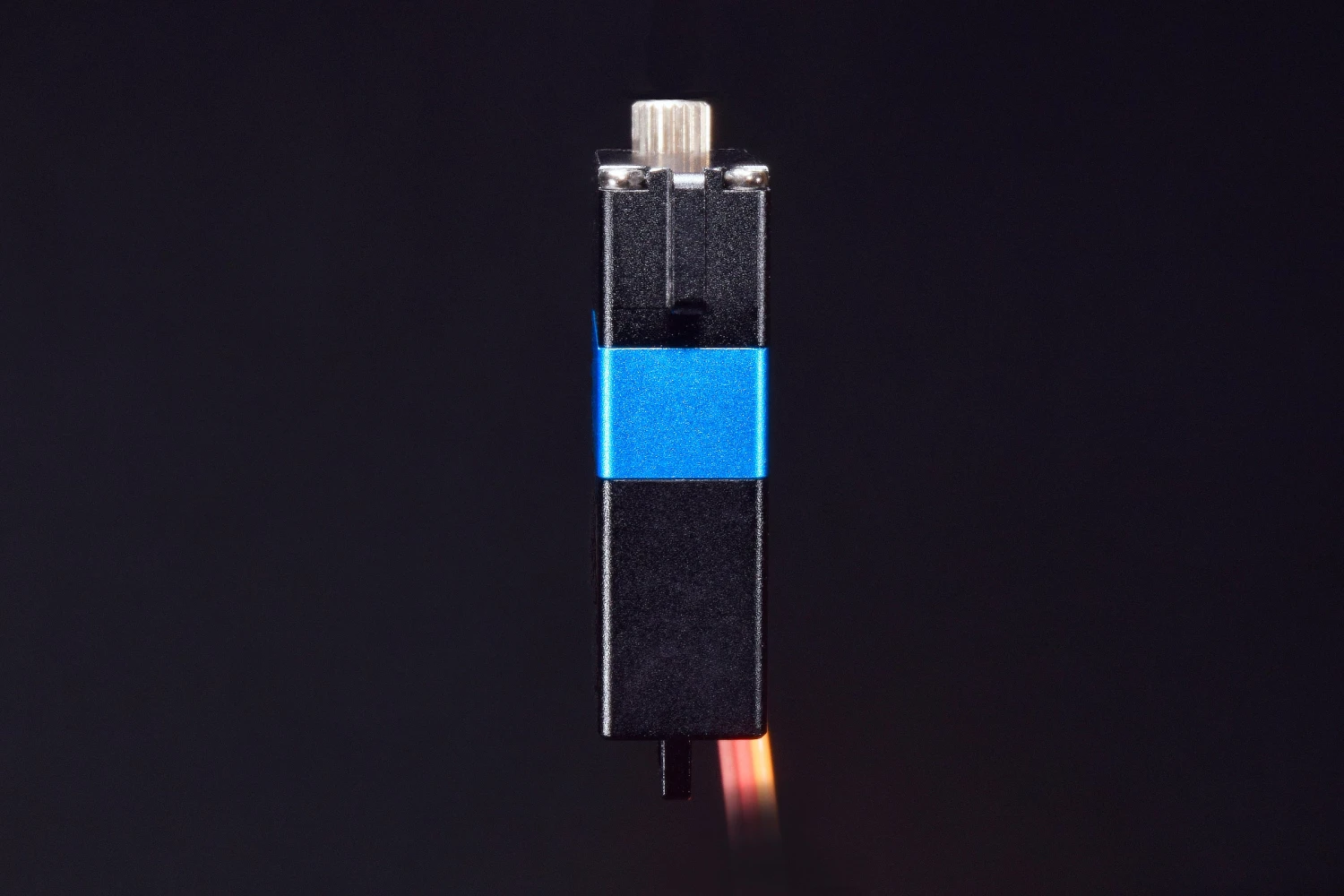

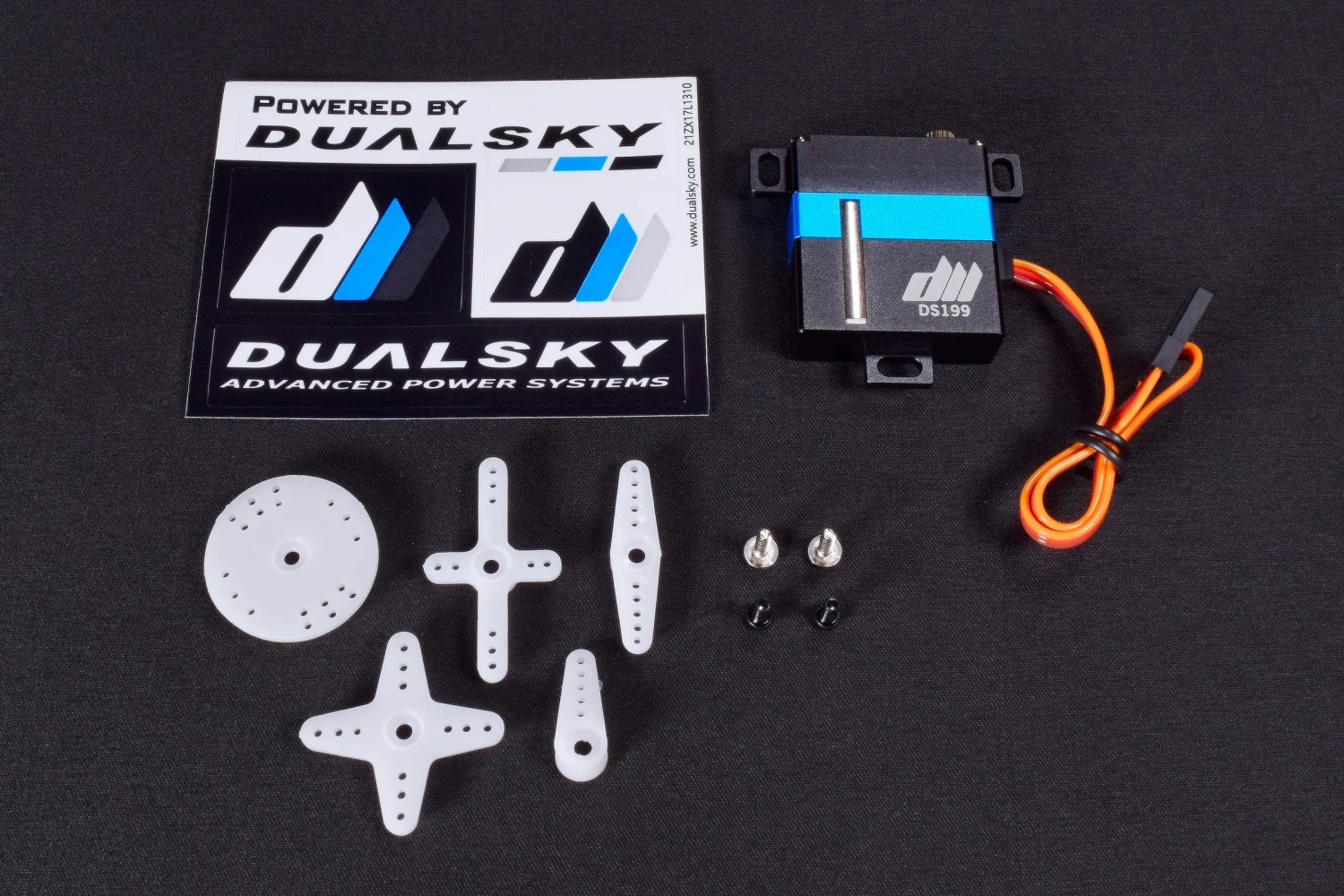

From the ESC/motor company Dualsky, comes the DS199 thin wing servo. Inside the 10mm thick CNC machined Aluminum case is a set of full metal gears, driven by a responsive coreless motor, which work together to make 7kg of torque at great speed. Ideal for use in thin wings or wherever you need a relatively inexpensive quality high voltage wing servo.
NOTE: Though not specified, these servos WILL work on 8.4V, we have even confirmed this with Dualsky themselves.
| Servo Type | Digital, High Voltage, Wing |
| Gear Type | Metal |
| Motor Type | Coreless |
| Stall Torque | 6.2Kg-cm (86.1 oz-in) @6.0V 7.0Kg-cm (97.2 oz-in) @7.4V |
| Speed | 0.08sec/60°@6.0V 0.07sec/60°@7.4V |
| Spline | 21T |
| Voltage Range | 6.0-7.4v (2S LiPo) |
| Dimensions | 30.1x10x33.6mm |
| Weight | 25g |
