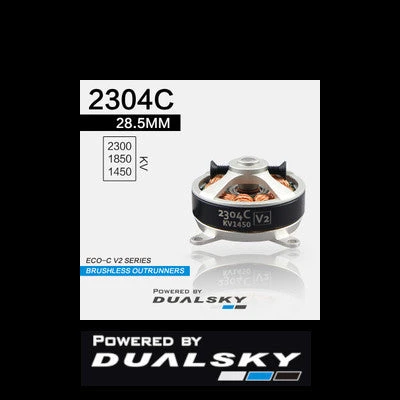

Dualsky ECO 2304C-V2 1850kv Motor
Original price was: $20.10.$14.07Current price is: $14.07.
- The best quality products, always.
- Sustainable materials, for a better tomorrow.
- Control the delivery date and try to deliver it in the fastest time
- Safe and Secure Shopping
A good choice for indoor freestyle or an F3P trainer plane with airframes weighing in at 100 – 200 grams.
Designed for use with sport or performance planes weighing 100 to 200 grams, that require a lightweight powerful motor. The C-Series V2 motors are powerful yet very light and are a solid choice for your next build.
Dualsky motors are manufactured to high tolerances using high quality materials and are fairly priced.
So whether you fly in competitions or just love free flying, the DUALSKY C-Series V2 motors will help you keep your all up weight down and your thrust to weight ratio up.
Comes with motor mounting screws, built in aluminum motor mount, female bullet connectors and heat shrink for the ESC and a prop saver style propeller mount with o-rings.
Technical info:
| Eco Series | ECO 2304C-V2 |
| KV | 1850 |
| Stator Wind | 18 Turns |
| Stator Teeth / Mag. Poles | 12 / 14 |
| Weight w/o wires | 23 grams |

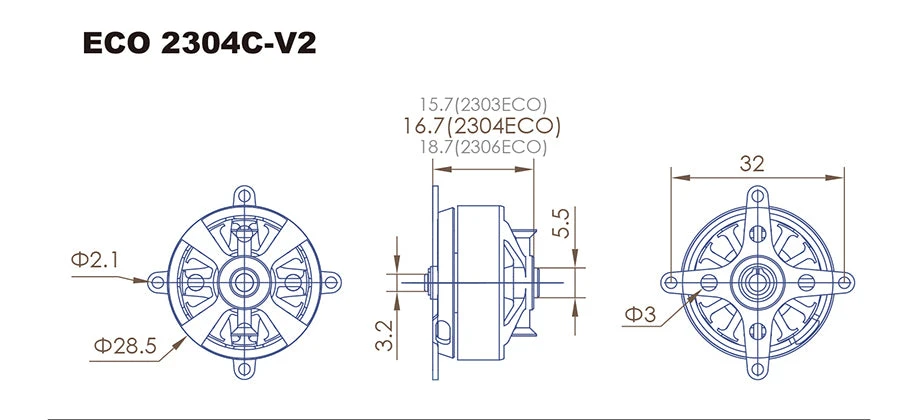

| Outer Diameter | 28.5mm |
| Length | 16.7mm |
| Shaft Dia. | 3.175 mm |
| Motor Mount Hole Spacing | 32x32mm |
| Motor Idle Current @ 10V | 0.7A |
| Winding Resistance | 165.0mOhm |
| Max Efficiency Current | 7.6A |
| Burst Current (15s) | 12A |
| Peak Power Output (15s) | 96 Watts |
| Recommended ESC | 12A min. |
| Recommended Propellers | (2S) 9×4.7 / 10×2.8 (3S) 5.1×4.5 / 6×3 |
| Prop Thrust Test Data | ns |
| Prop Thrust Test Data | ns |
| Airframe Recommendation | 100-200 gram airframe |
