F5J Push Rod Set

A high performance push rod kit produced by Tomas Liu Studios, for F5J ships that are designed to use “thread-in” control horns. (see pics)

Studying the parts kit, you will find exceptionally well machined components; the CNC parts are beautiful, the anodizing is clean, resulting in a very good fit and finish.

You are given a choice for your pushrod assembly, you can use the included carbon rods to create exact length push rods or you can make adjustable length pushrods using the included threaded rod. The designer has proven that the carbon pushrod assembled using super glue can withstand 220lbs in tension.

 Here is an e-clip installation tool that makes it much easier to install the clips.

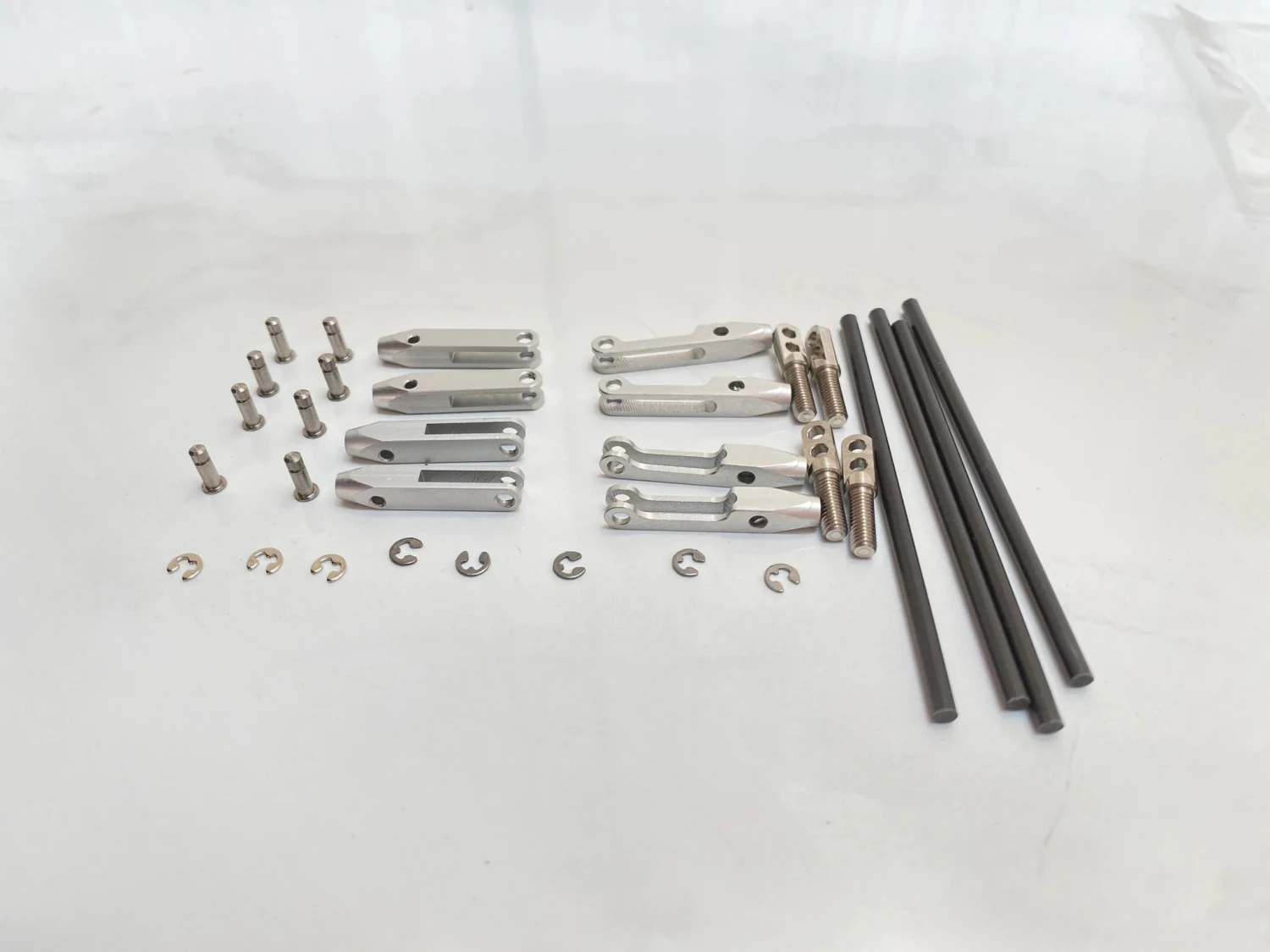

Package includes:

• Aluminum Clevis re for Ø2.5mm Rod*4
• Aluminum Clevis r for Ø2.5mm Rod*4

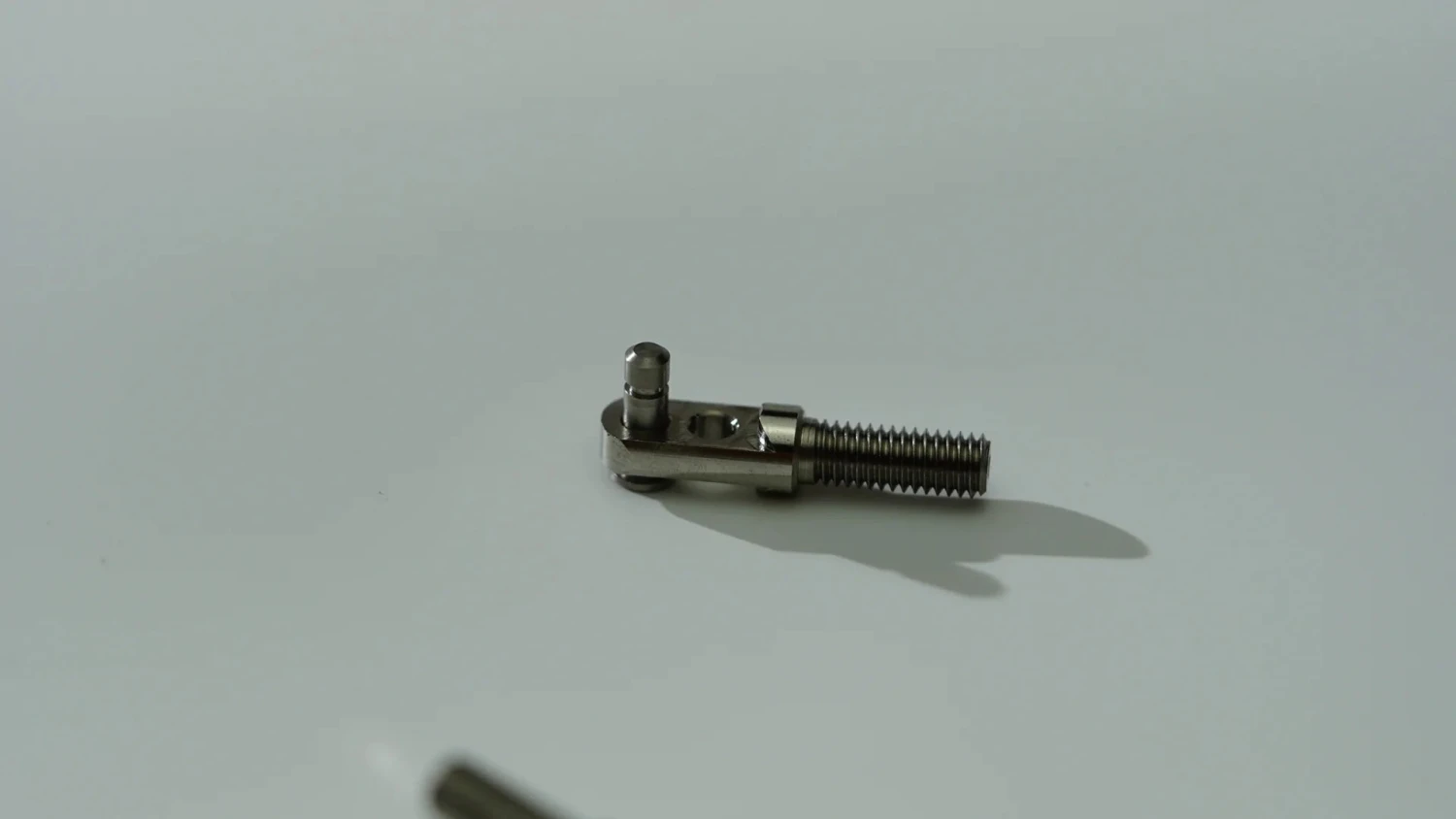

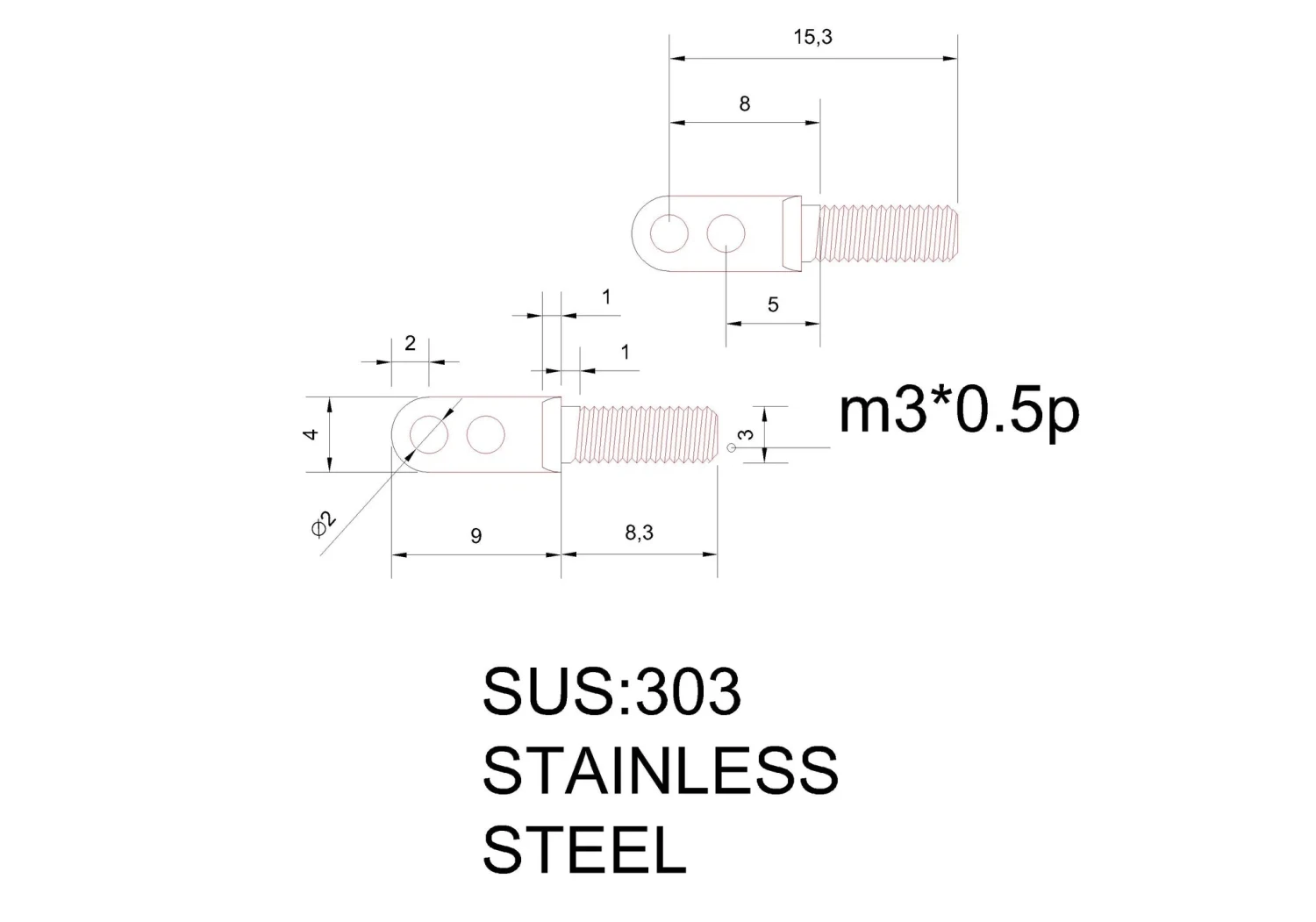

• 303 Stainless Steel Threaded Clevis’*4
• Ø2.0*4.2mm 303 Stainless Steel Pins*8
• E-clips*8
• Carbon Rods*4
• m3*50mm Threaded rods*4

Here is a video demonstrating how to assemble the carbon push rods.
