FrSky Advanced Engine Suite

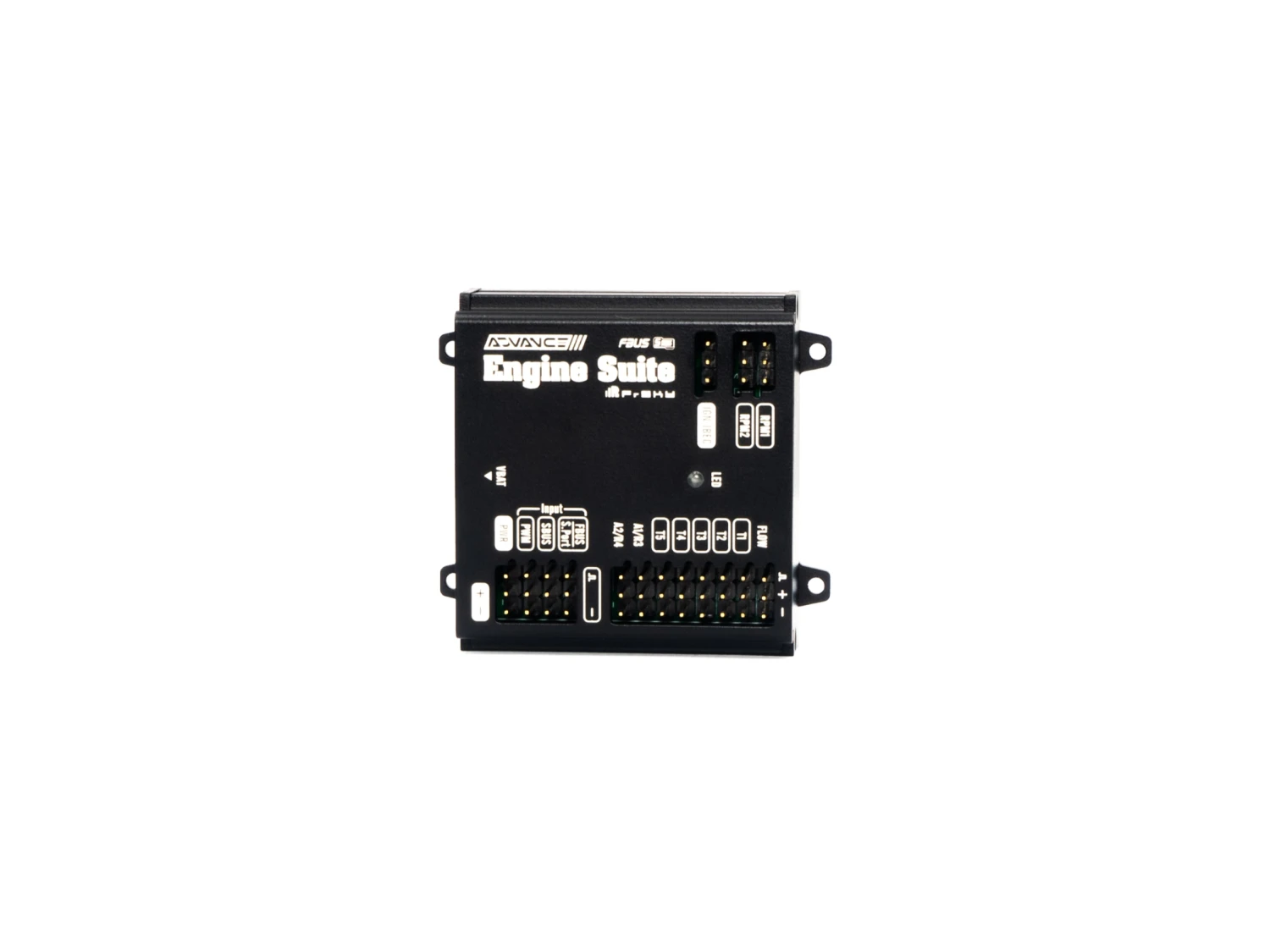

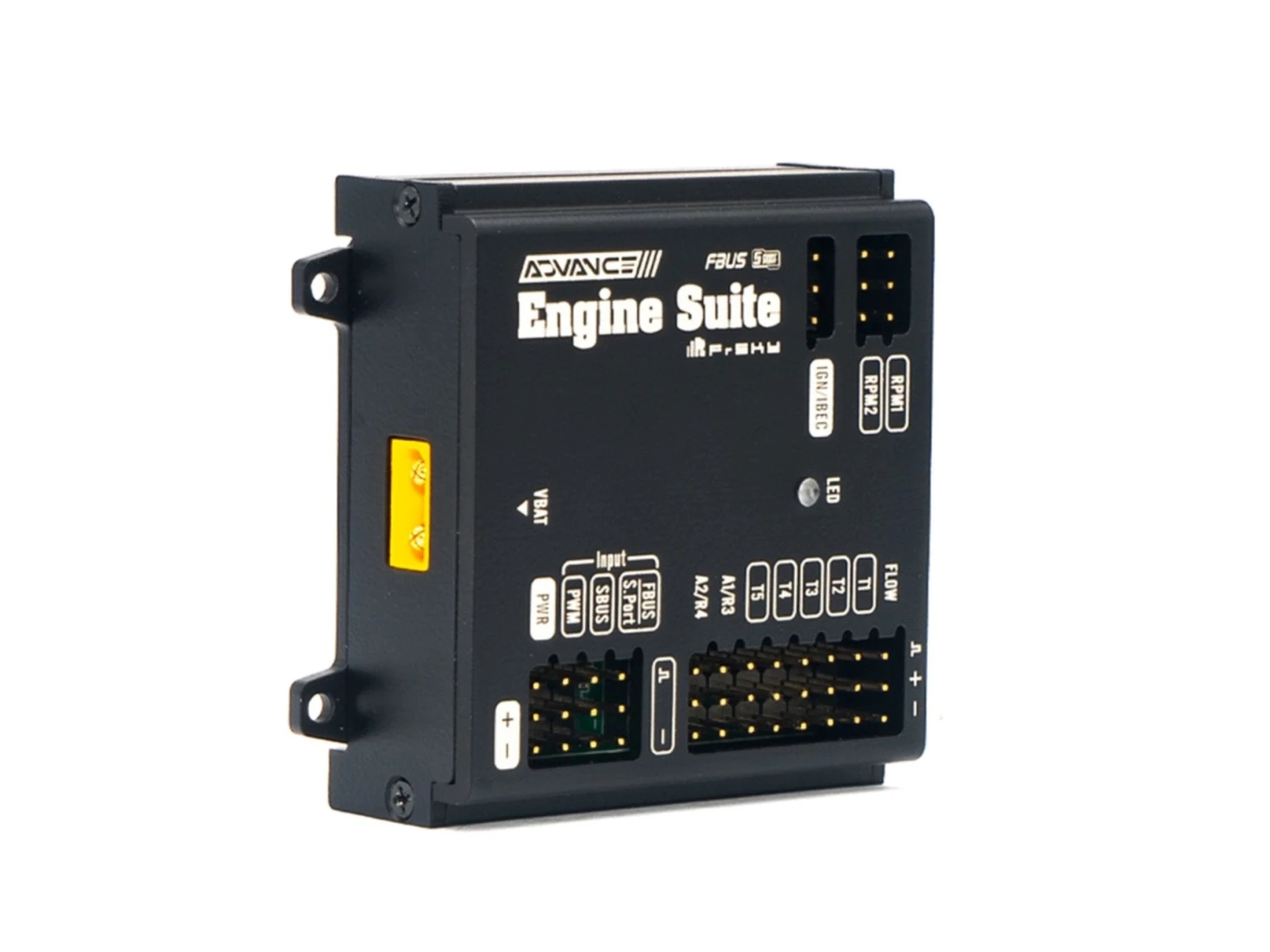

Advanced Engine Suite (AES) is a multi-function management system suitable for application in airplanes equipped with engines.

Using the VBAT (XT30) power input port, users only need to use one battery to power all connected devices; eliminating the trouble of providing an independent power supply for the ignition control unit. AES also adopts a safety solution to avoid potential risks caused by interference between the connected ignition and receiver devices.

The AES module is equipped with a wealth of sensor interfaces, including 2 RPM sensor ports, 1 flow meter sensor port (sensor sold separately), and 5 temperature sensor ports (Sensors are required to be purchased separately. Sensor options: TEMS Temperature Sensor [04100427], Flowmeter [03040703] ). In addition, AES also provides 2 AD ports, allowing users flexibility in the use different types of AD devices required in your airplane. At the same time, the FBUS/S.Port feature of the connected receiver, allows users to monitor the telemetry data in real-time on the transmitter.

Features:

• Ignition Battery Eliminator Design (Independent battery is NOT needed.)
• Anti-interference Protection between Ignition & Receiver Parts
• 5 Ports for Temperature Sensors
  2 Ports for RPM Sensors
  2 Ports for AD/RPM Sensors
  1 Port for Flowmeter Sensors
  (Sensors are required to be purchased separately. Sensor options: TEMS Temperature Sensor [04100427], Flowmeter [03040703] )
• 1 Power Port for Receiver
• 1 Power Port for Ignition Kill Switch Unit
• Signal Input Ports for FBUS/S.Port (Auto Recognition), SBUS, and PWM
• 1 Battery Input Port with XT30 Connector (Input Range: 4.5-13V)
• Real-Time Configuration Capability (by S.Port of ETHOS radio or FBUS capable receivers)

Specifications:

• Dimension: 50×46.4x18mm (L×W×H)
• Weight: 53.5g
• Battery Voltage Input Range: 4.5-13V
• Battery Input Connector: XT30
• IGN (Ignition Port) Voltage Output Range: 4.5-13V (Sync with the input voltage settings of VBAT.)
• Operating Current: 20mA@5V
• Signal Voltage Level
  – RPM1/RPM2 Port: 3V-12V (Requires the driven current＞5mA)
  – Flow Port: 3.3V
  – AD1/AD2 Port: 0-3.3V

Fuel flow sensor sold separately.
