FrSky Archer Plus R6 Mini-E – 6 Channel Micro W/ 5A Brushed ESCs

Finally, a modern FrSky solution for micro R/C aircraft.

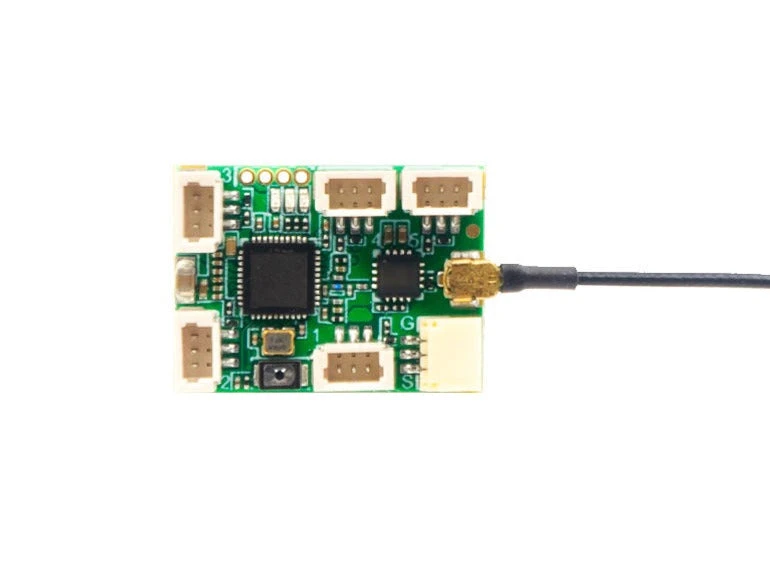

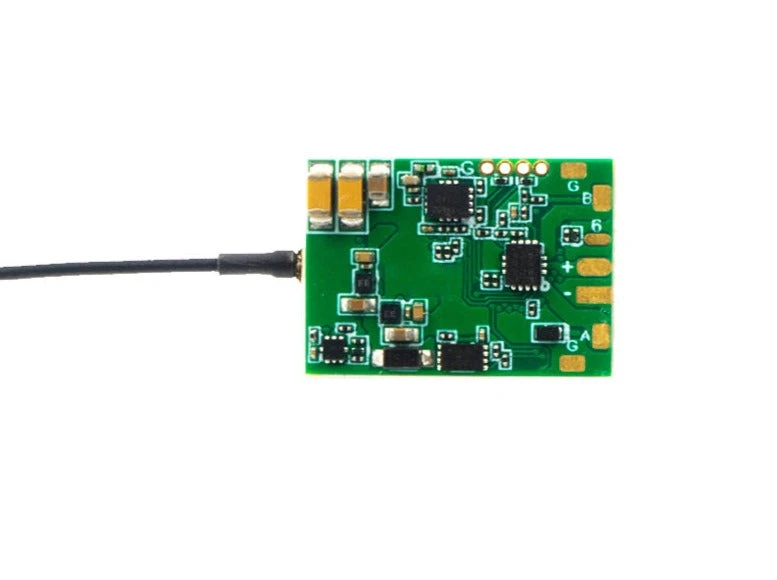

No bigger than a Quarter and weighing in at only 2.8 grams, the Archer Plus R6 Mini is a ideal solution for all sorts of micro R/C applications. It features six PWM channels and is equipped with a single 2.4ghz antenna with an IPEX1 connector. Don’t let its small size fool you, the R6 Mini is full range and is even telemetry capable too, so you can hook up all your favorite sensors to the SmartPort receptacle. If that isn’t enough, the R6 Mini-E is also equipped with two 5 amp brushed motor ESCs built in.

Your radio will need to be running the most recent IXJT v2.1.x firmware to use Archer Plus receivers!

 Manual and configuration scripts can be found HERE

Key Features:

• Enhanced Anti RF-Interference capability with more solid RF performance
• Smart-matched ACCESS & ACCST D16 modes
• Ultra small and lightweight
• 6 high-precision PWM channel ports (JST 1mm pitch, adapters to 1.2mm spacing are included)
• Two 5 amp brushed motor ESCs, built right in!
• Over-The-Air (OTA) FW update
• Full control range with telemetry (S.Port or FBUS)

Specifications:



• Dimension: 22×16×7mm (L*W*H)
• Weight:2.8g
• Number of Channels: 6/24 channels
  6 High-precision PWM & 16 FBUS channels Mode
  6 High-precision PWM & 24 FBUS channels Mode
• Operating Voltage Range: 3.0 -8.4V
• Operating Current: ＜65mA@5V
• Operating Range: ＞2km (Full range)(*Range may vary based on local conditions.)
• Antenna connector: IPEX1
• Compatibility: FrSky 2.4GHz ACCESS / ACCST D16 capable transmitters
