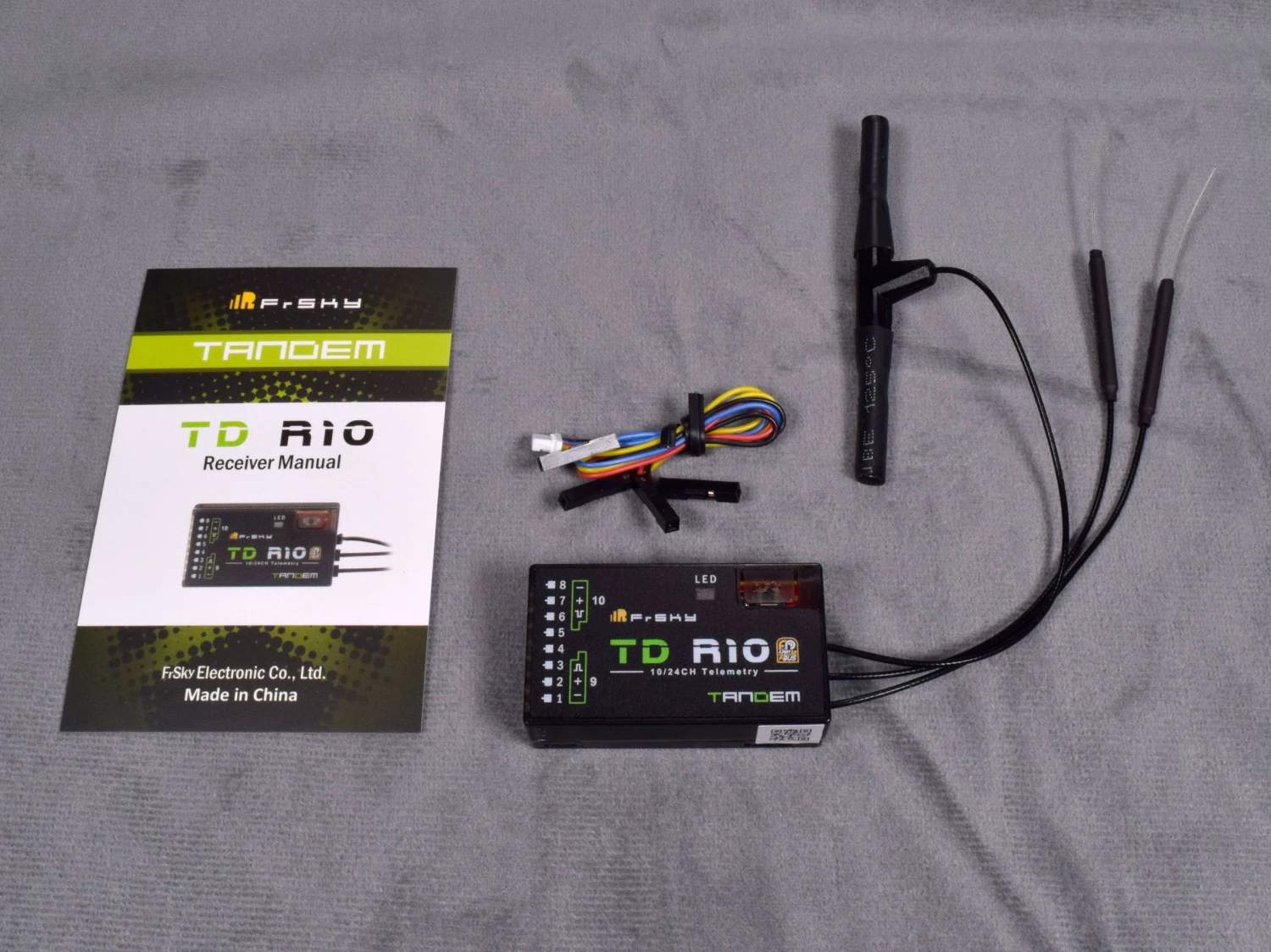

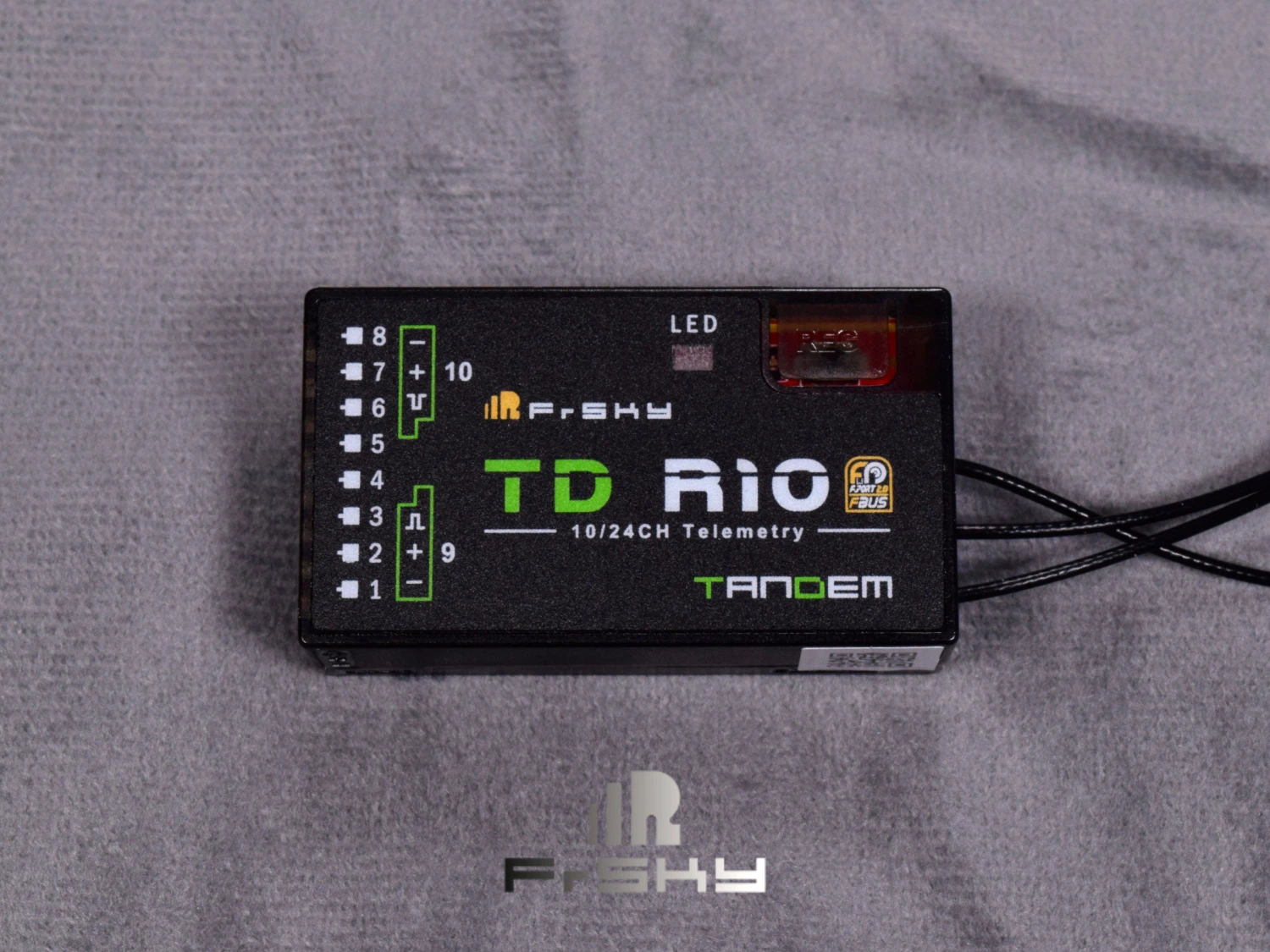

FrSky TD R10

The Tandem dual-band receivers are unlike any other FrSky 2.4Ghz or 900Mhz receivers, they work simultaneously at both 900Mhz and 2.4Ghz frequencies. That means Tandem receivers provide not only the low latency signal and long-range control, but also benefit from an enhanced level of reliability and anti-interference performance.

The Tandem series receivers adopt the triple antenna design that provides multi-directional wide coverage for the remote signal. Flight data can be recorded by Tandem receivers through a built-in black box module.

The configurable 10 channel ports are a big feature of TD R10. Each channel port can be assigned as PWM, SBUS, FBUS, or S.Port. With the FBUS protocol, the Tandem series receivers open up the possibility of seamlessly pairing with multiple telemetry devices (Neuron ESC, Advance Sensors, etc.) as well as simplifying the installation.

The space saving design means this very feature packed receiver is about the same size as a normal 8 channel receiver.

Features:

• Simultaneous dual-band radio connection
• Triple antenna design for multi-directional coverage
• Black Box function
• Built-in voltage sensor
• 4ms Race Mode with Telemetry
• Long Range Control (up to 50KM – 100KM)
• Over-The-Air (OTA) Firmware updates
• Supply current range（All Ports）
  ◦ Instantaneous current:5A
  ◦ Continuous current:3A
• 10 Configurable Channel Ports
  ◦ CP1: PWM / SBUS Out / FBUS / S.Port / SBUS In
  ◦ CP2-10: PWM / SBUS Out / FBUS / S.Port

Specifications:

• Frequency: 2.4GHz & 900MHz
• Dimension: 46.5*26.3*14.7mm (L*W*H)
• Weight: 16.6g
• Operating Voltage: 3.5-10v DC
• Operating Current: ≤180mA@5V
• Compatibility: Tandem series transmitter & TD protocol capable RF module
• Triple 2.4G/900M Antennas (2 for 2.4G (IPEX1), 1 for 900M (IPEX1)
