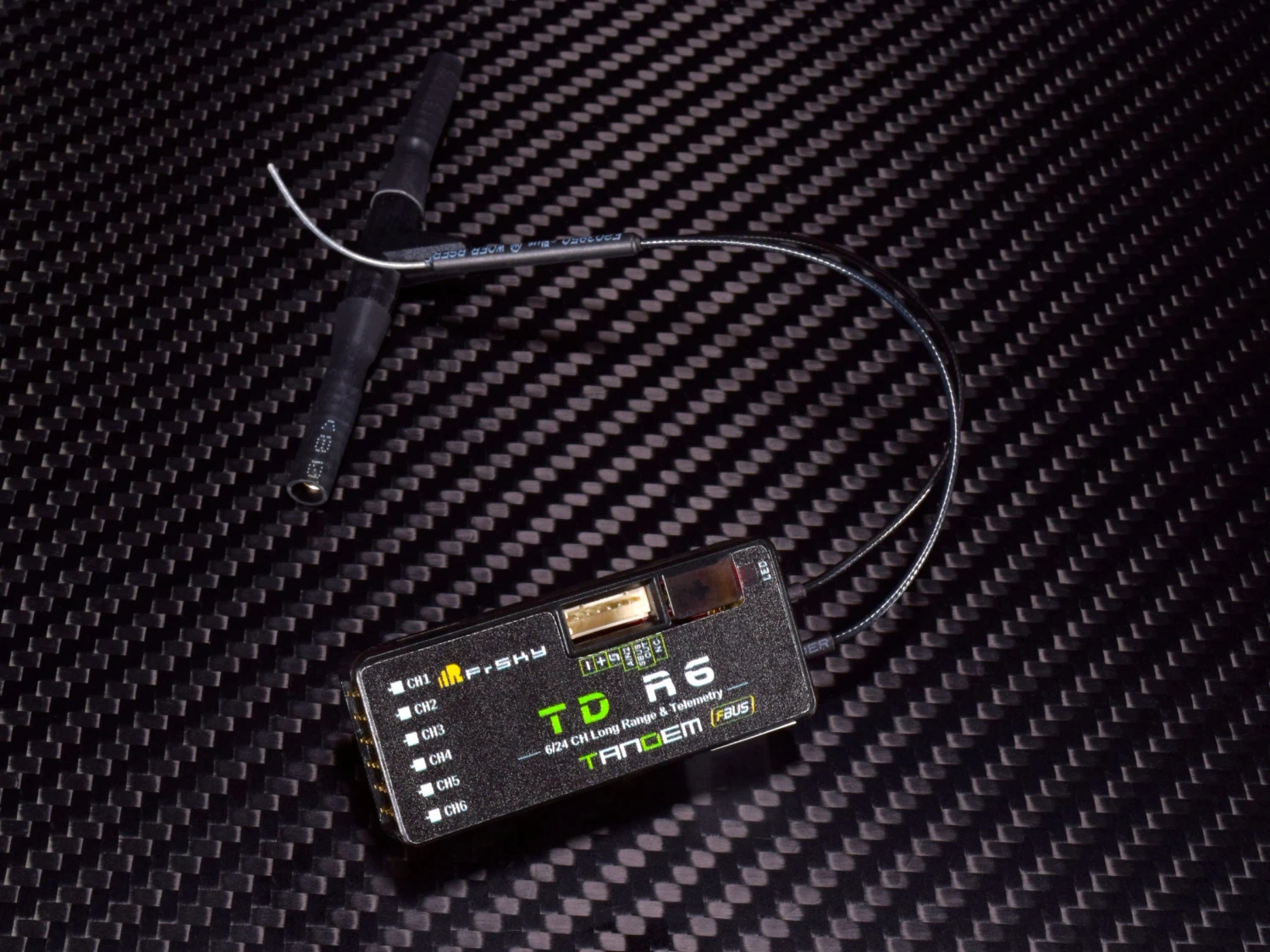

FrSky TD R6



The Tandem dual-band receivers are unlike any other FrSky 2.4Ghz or 900Mhz receivers, they work simultaneously at both 900Mhz and 2.4Ghz frequencies. That means Tandem receivers provide not only the low latency signal and long-range control, but also benefit from an enhanced level of reliability and anti-interference performance.

The Tandem TD R6 receiver adopts a dual antenna design for multi-directional wide coverage for the remote signal. Flight data can also be recorded by Tandem receivers through a built-in black box module.

It features 6 PWM channels, S.Port, SBUS output and the newer FBUS capability, which opens up the possibility of seamlessly pairing with multiple telemetry devices (Neuron ESC, ADV Telemetry Sensors, etc.) as well as simplifying your installation.

Features:

• Simultaneous dual-band radio connection
• Black Box function
• 6 PWM channel ports
• FBUS / S.Port
• SBUS Out (Supports 16CH / 24CH mode)
• Built-in voltage sensor
• 4ms Race Mode with Telemetry
• Long Range Control (up to 50KM – 100KM)
• Over-The-Air (OTA) Firmware updates

Specifications:

• Frequency: 2.4GHz & 900MHz
• Dimension: : 47.5*20.4*10.9mm (L*W*H)
• Weight: 11.5g
• Operating Voltage: 3.5-10v DC
• Operating Current: ≤110mA@5V
• Compatibility: Tandem series transmitter & TD protocol capable RF module
• Dual 2.4G/900M Antennas (1 for 2.4G (IPEX1), 1 for 900M (IPEX1)
