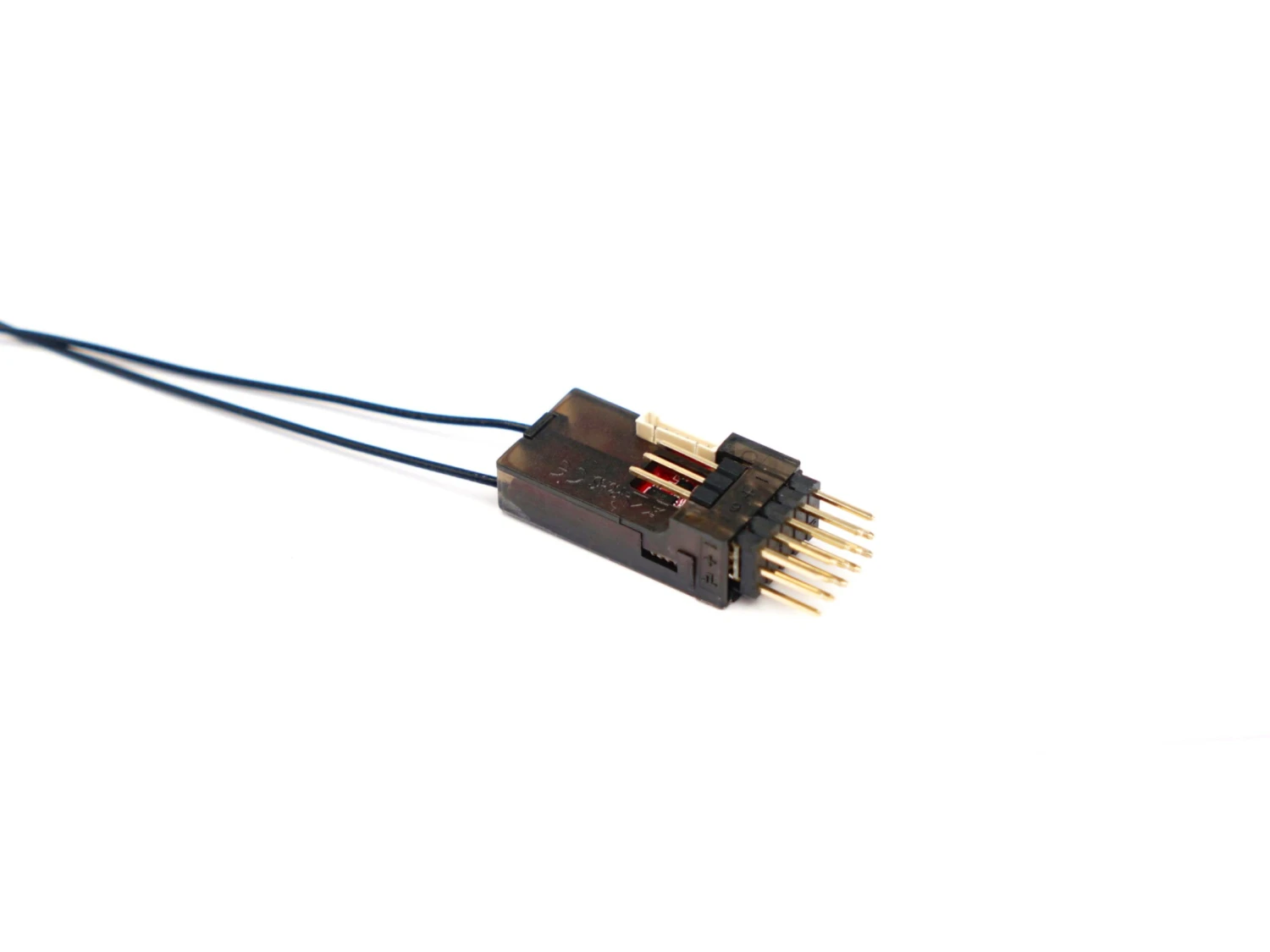

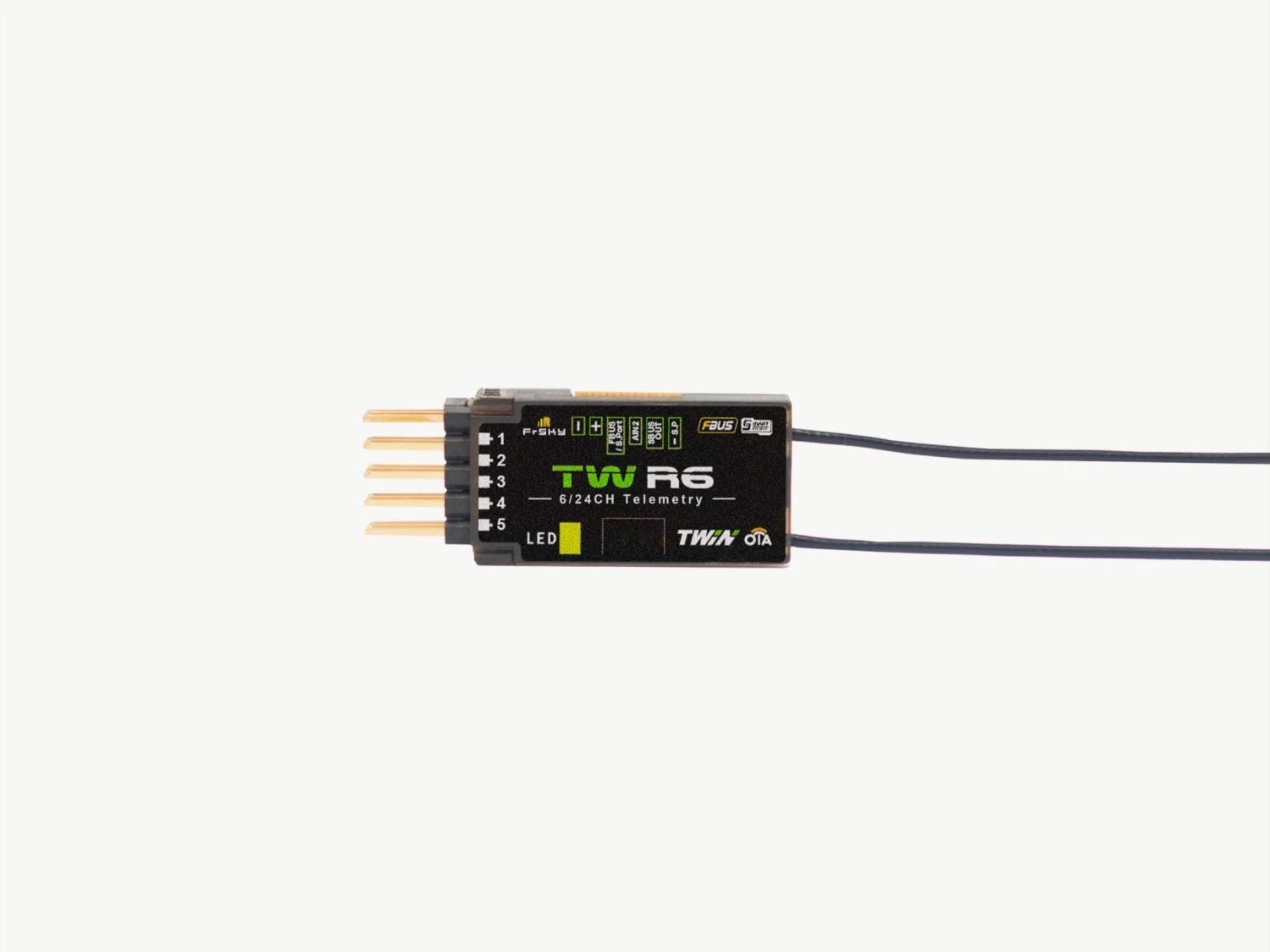

FrSky TW R6

This receiver is designed for rc users who want to benefit from resilience and long range in their radio communications, typically up to tens of kilometers is achievable.

The TW R6 receiver is equipped with 2x 2.4G antennas. The signal output ports include one SBUS output channel and 6 PWM output channel ports. It also supports telemetry functions through FBUS / S.Port. By setting the TW R6 to use FBUS protocol in the ETHOS system, the signal control and telemetry can be connected to any device that supports FBUS protocol through only one line to achieve bidirectional transmission, also simplifying the model build using fewer wires. In addition to all this, the inverted S.Port on the receiver can allow for easily connecting flight controllers.

Features:

• Simultaneous working dual 2.4G TW mode
• High-precision variometer sensor
• Long control range (Range varies based on the RF Power settings.)
• Over-The-Air (OTA) FW update
• 6 PWM channel ports
• SBUS Out (Supports 16CH / 24CH mode)
• FBUS / S.Port
• Inverted S.Port

Specifications:

• Frequency: Dual 2.4GHz
• Dimension: 38.1*14.6*9.5mm (L*W*H)
• Weight: 5g
• Operating Voltage: 3.5-10V (Please ensure the supplied voltage exceeds 2.8V during the use.)
• Operating Current: 60mA@5V
• Voltage Measurement Range via AIN2 (External device): 0-36V
• Antenna connector: IPEX4
• Compatibility: TWIN series Radio & RF module in TW mode.
