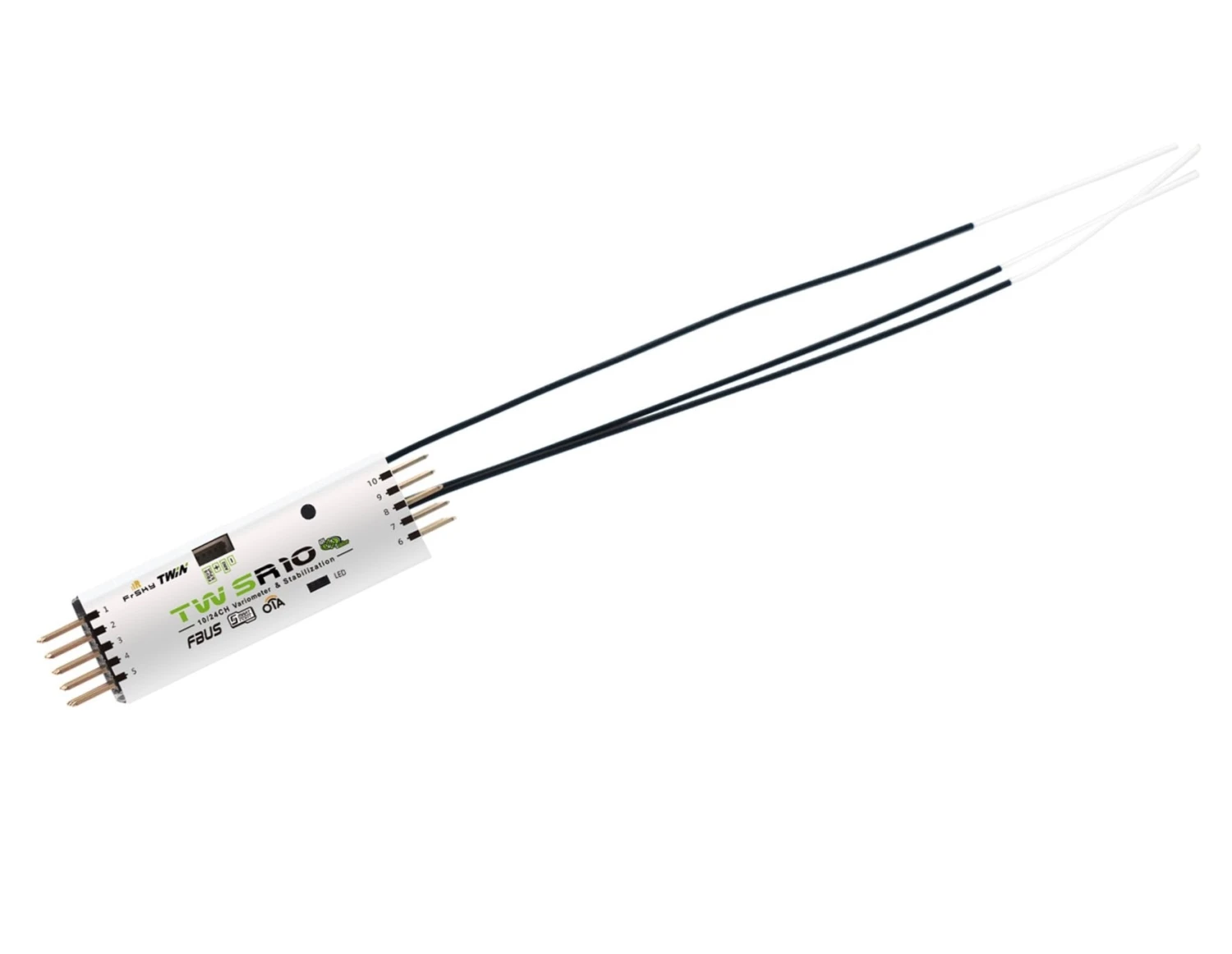

FrSky TW SR10

This receiver is designed for rc users who want to benefit from resilience and long range in their radio communications, typically up to tens of kilometers is achievable.

The TW SR10 receiver is equipped with triple 2.4G antennas!

The configurable channel ports on TW R10 & TW SR10 receivers are a big feature, each channel port can be assigned as PWM, SBUS, FBUS, or S.Port. By setting the port to use FBUS protocol in the ETHOS system, the signal control and telemetry can be connected to any device (XACT servos, ADV Sensors, etc.) that supports FBUS protocol through only one line to achieve bidirectional transmission, also simplifying the model build using fewer wires. (NOTE: If using FBUS or SBUS with servos, please pay attention to power distribution requirements of your servos, it is very easy to exceed normal servo connectors power limitations on a serial bus.)

ADV Stabilizer
The TW SR10 offers an ADV Stabilizer function which is an upgrade over the original classical gyroscope stabilization modes. The ADV Stabilizer offers an advanced mode that provides more programmable stabilized channels and flexibility.

The classical stabilization mode has been enhanced with 5 additional stabilization channels, providing pin mapping to each channel in the multiple flight modes like Stabilization, Auto-Level, Hover, and Knife-Edge with an airplane model.

In the advanced stabilization mode, all the output pins are configurable for stabilization and additional advanced features such as Stab file sharing, programmable parameters, and developer access, etc.

The advanced stabilizer feature incorporates high-precision telemetry sensors to monitor altitude, vertical speed, etc. This ADV feature is an additional benefit compared to using a regular S series stabilization receiver.

Features:

• Simultaneous working dual 2.4G TW mode
• Built-in Advanced Stabilization Functions
• Built-in High-Precision Telemetry Sensor (Altitude, Vertical Speed, etc.)
• Long control range (Range varies based on the RF Power settings.)
• Over-The-Air (OTA) FW update
• 10 Configurable Channel Ports
  – CP1: PWM / SBUS OUT / FBUS / S.Port / SBUS IN
  – CP2-10: PWM / SBUS OUT / FBUS / S.Port
• SBUS Out (Supports 16CH / 24CH mode)
• SBUS In Port (Supports Signal Redundancy)
• FBUS / S.Port

Specifications:

• Frequency: Dual 2.4GHz
• Triple 2.4GHz Antennas (with IPEX1 connectors)
• Dimension: 64.6×16.6×12.4mm (L*W*H)
• Weight: 10g
• Operating Voltage: 3.5-12V (Recommend 2S Li-Batteries if your servos can handle 8.4 volts)
• Operating Current: ≤120mA@5V
• Voltage Measurement Range via AIN2 (External device): 0-35V (Battery Voltage Divider Ratio: 1:10)
• Compatibility: TWIN series Radio & RF module in TW mode.

Manual and downloads can be found HERE.
