FrSky Xact BLS5403H 48.9Kg (679 Oz In), 0.08 Sec – 77g
Original price was: $79.99.$55.99Current price is: $55.99.
- The best quality products, always.
- Sustainable materials, for a better tomorrow.
- Control the delivery date and try to deliver it in the fastest time
- Safe and Secure Shopping
A high performance servo for whatever application you have in store, Connect to your FrSky gear and enjoy telemetry feedback, or connect it to any brand radio and enjoy the outstanding performance.

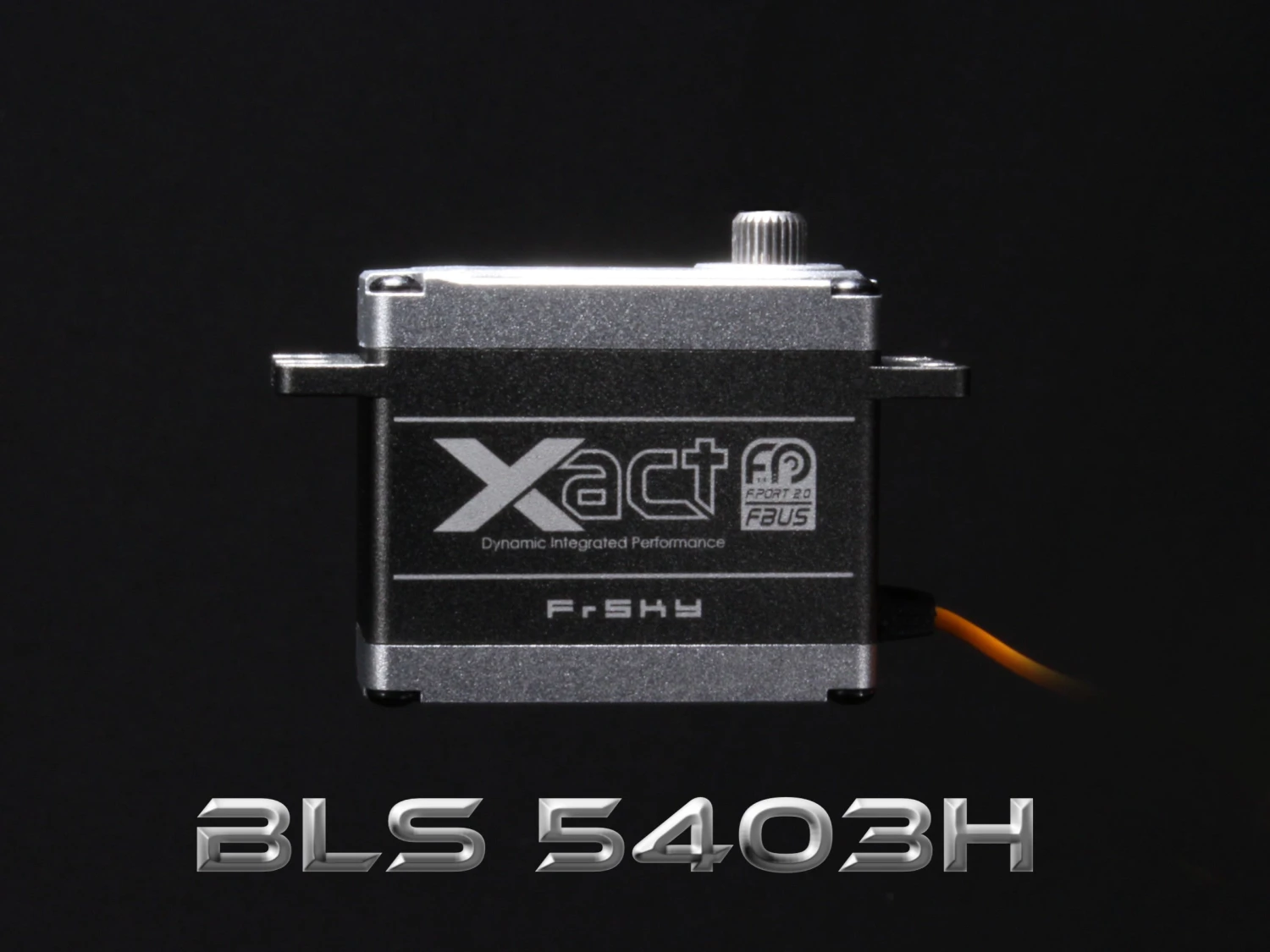

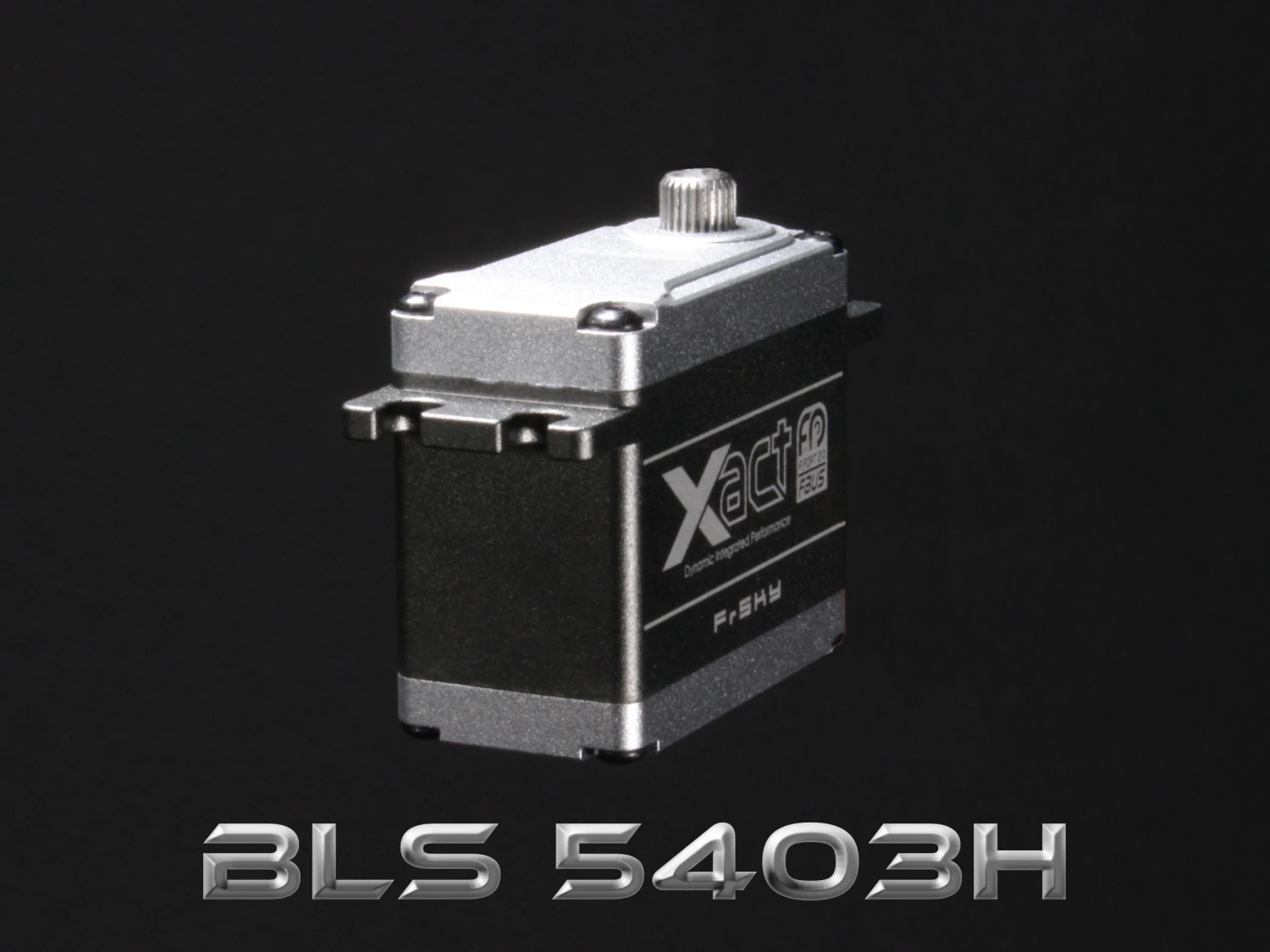

FrSky presents the Xact BLS5403H servo, ready for any application where you need a standard size,high speed servo with torque to spare.
Inside the CNC machined Aluminum case is a set of all metal gears, spun by a powerful brushless motor for high speed, torque and longevity and riding on dual ball bearings while a Hall Effect sensor keeps track of position. It is able to run on 6 to 8.4V, with amazing speed and torque across the board, especially at higher voltages.
But that’s not all, FrSky has incorporated telemetry sensors built right into the servo! They work with any FrSky F-Port 2.0 capable receiver and measure real time current draw and input voltage. You can also configure range of motion, direction and more via your radio’s LUA script and perform firmware updates through your radio’s SmartPort.
Specifications:
| Servo Type | Digital |
| Gear Type | Metal |
| Motor Type | Brushless |
| Stall Torque Stall Current | 35.5Kg-cm (493 oz-in) @6.0V 43Kg-cm (597.2oz-in) @7.0V 48.9Kg-cm (679.1 oz-in) @8.4V |
| Speed | 0.11sec/60°@6V 0.09sec/60°@7.4V 0.08sec/60°@8.4V |
| Spline | 6mm, 25T |
| Voltage Range | 6.0-8.4V |
| Dimensions | 40x20x33.5mm |
| Weight | 77.5g |
