FrSky Xact HV 5402 14.8Kg (205.5 Oz In) 0.08 Sec – 72g
Original price was: $65.20.$45.64Current price is: $45.64.
- The best quality products, always.
- Sustainable materials, for a better tomorrow.
- Control the delivery date and try to deliver it in the fastest time
- Safe and Secure Shopping
A high performance servo with telemetry and more!
The FrSky Xact HV5402 servo, ready for any application where you need a powerful, high torque servo.
Inside the CNC machined Aluminum case is a set of all metal gears, spun by a coreless motor for quicker response and riding on dual ball bearings while a Hall Effect sensor keeps track of position. It is able to run on 6 to 8.4V, with exceptional torque and good speed across the board.
But that’s not all, FrSky has incorporated telemetry sensors built right into the servo! They work with any FrSky F-Port 2.0 capable receiver and measure real time current draw and input voltage. You can also configure range of motion, direction and more via your FrSky radio’s LUA script and perform firmware updates through your radio’s SmartPort. It’s also waterproof.
Specifications:
| Servo Type | Digital |
| Gear Type | Metal |
| Motor Type | Coreless |
| Stall Torque Stall Current | 11.0Kg-cm (152.8 oz-in) @6.0V 12.5Kg-cm (173.6oz-in) @7.0V 14.8Kg-cm (205.5oz-in) @8.4V |
| Speed | 0.12sec/60°@6V 0.10sec/60°@7V 0.08sec/60°@8.4V |
| Spline | 6mm, 25T |
| Voltage Range | 4.8-8.4V |

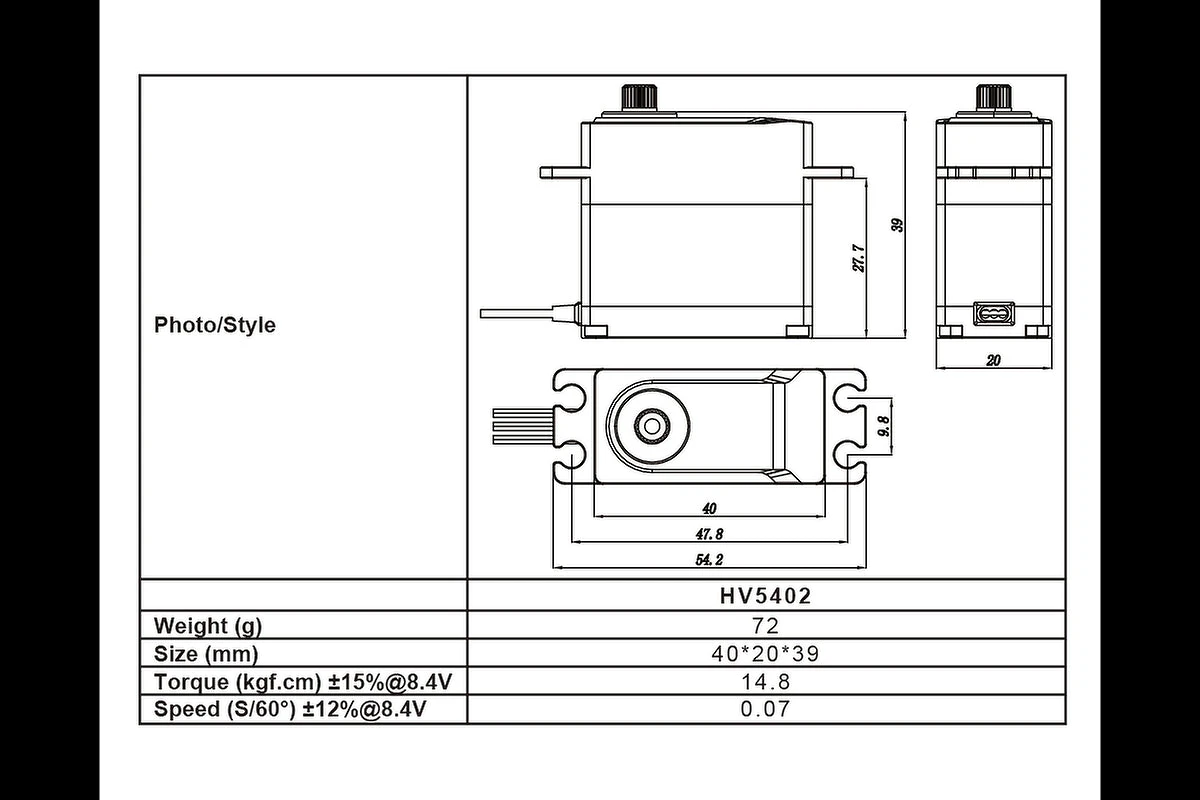

| Dimensions | 40x20x39mm |
| Weight | 72g |
