FrSky Xact M5253H 10.2Kg (141.5 Oz In), 0.07 Sec – 23g
Original price was: $36.50.$25.55Current price is: $25.55.
- The best quality products, always.
- Sustainable materials, for a better tomorrow.
- Control the delivery date and try to deliver it in the fastest time
- Safe and Secure Shopping
A high performance servo for whatever application you have in store, has built in FrSky telemetry too!

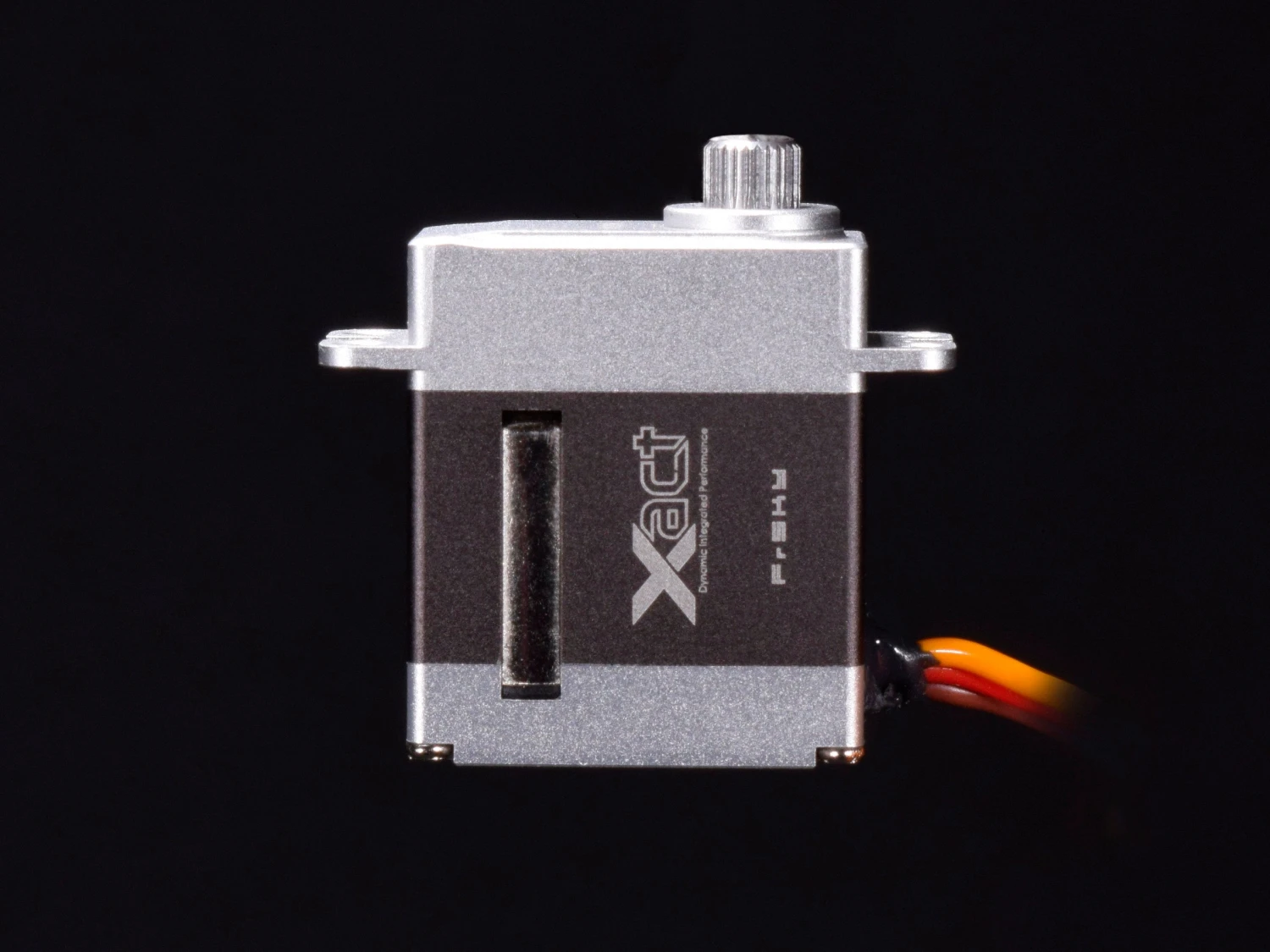

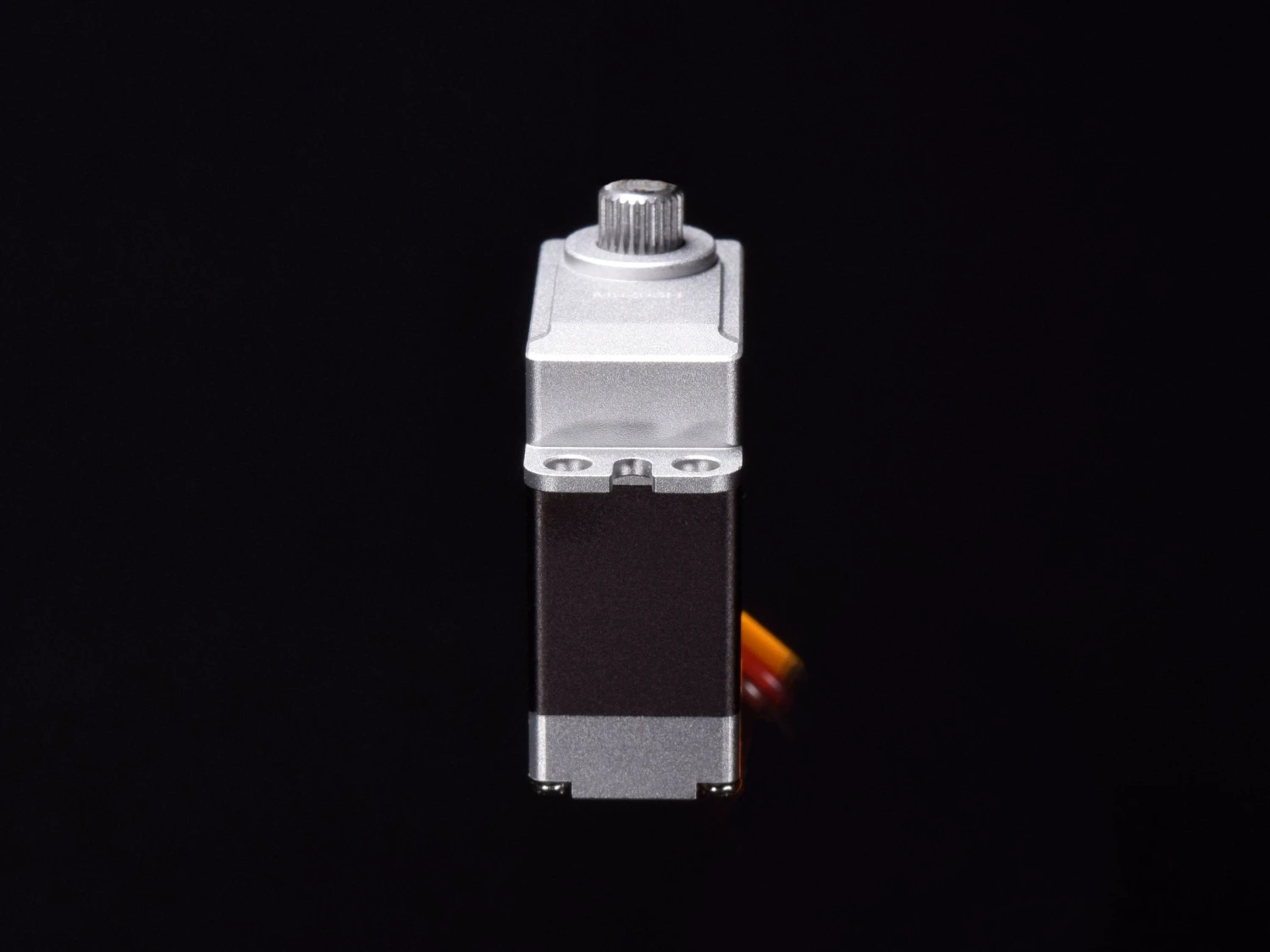

FrSky presents the Xact M5253H servo, ready for any application where you need a fast and powerful, high torque servo.
Inside the CNC machined Aluminum case is a set of all metal gears, spun by a coreless motor for quicker response and riding on dual ball bearings while a Hall Effect sensor keeps track of position. It is able to run on 6 to 8.4V, with exceptional torque and speed across the board.
But that’s not all, FrSky has incorporated telemetry sensors built right into the servo! They work with any FrSky F-Port 2.0 capable receiver and measure real time current draw and input voltage. You can also configure range of motion, direction and more via your radio’s LUA script and perform firmware updates through your radio’s SmartPort.
Specifications:
| Servo Type | Digital, High Voltage |
| Gear Type | Metal |
| Motor Type | Coreless |
| Stall Torque Stall Current | 7.3Kg-cm (101.3 oz-in) @6.0V 9.0Kg-cm (124.9oz-in) @7.4V 10.2Kg-cm (141.5oz-in) @8.4V |
| Speed | 0.10sec/60°@6.0V 0.08sec/60°@7.4V 0.07sec/60°@8.4V |
| Spline | 5mm, 25T |
| Voltage Range | 6.0-8.4V |
| Dimensions | 23x12x29mm |
| Weight | 23g |
