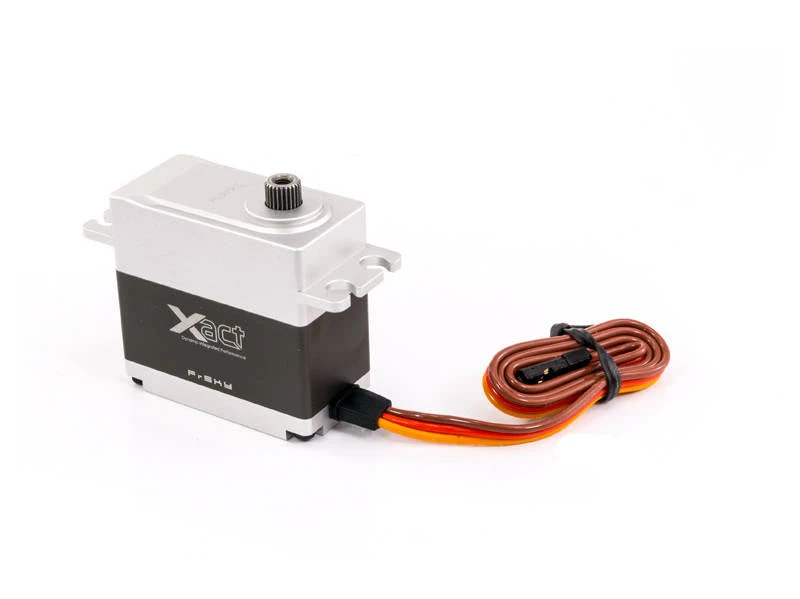

FrSky Xact S5452H 18.7Kg (260 Oz In) 0.04 Sec – 72g

A high performance servo with telemetry and more!

FrSky presents the Xact S5452H servo, ready for any application where you need a powerful, and quick servo.

Inside the CNC machined Aluminum case is a set of all metal gears, spun by a coreless motor for quicker response and riding on dual ball bearings while a Hall Effect sensor keeps track of position. It is able to run on 4.8 to 8.4V, with exceptional torque and high speed.

But that’s not all, FrSky has incorporated telemetry sensors built right into the servo! They work with any FrSky F-Port 2.0 capable receiver and measure real time current draw and input voltage. You can also configure range of motion, direction and more via your radio’s LUA script and perform firmware updates through your radio’s SmartPort.

Specifications:
Dimensions: 40 mm × 20 mm × 39 mm
Weight: 72 g
Motor: coreless
Voltage: 4.8 – 8.4 V
Max. frequency: 333 Hz
Stop current: 3,5 [email protected] / 4,[email protected] / 4,[email protected]
Tooth: 6 mm 25T
Digital, Metal gears
F.Port2 / SBUS and PWM support
Metal gears and two bearings in an aluminum housing
Hall sensor
Telemetry alarm, current overload and overheating
Updatable FW

Speed:
6 Volts: 0.06 sec / 60°
7.4 Volts: 0.05 sec / 60°
8.4 Volts: 0.04 sec / 60°

Torque:
 6 Volts: 13,3 kgf.cm (185 oz-in)
7.4 Volts: 16,4 kgf.cm (228 oz-in)
8.4 Volts: 18,7 kgf.cm (260 oz-in)
