FrSky Xact W5652H 4.8Kg (66.6 Oz In), 0.05 Sec – 10g Wing Servo
Original price was: $38.50.$26.95Current price is: $26.95.
- The best quality products, always.
- Sustainable materials, for a better tomorrow.
- Control the delivery date and try to deliver it in the fastest time
- Safe and Secure Shopping

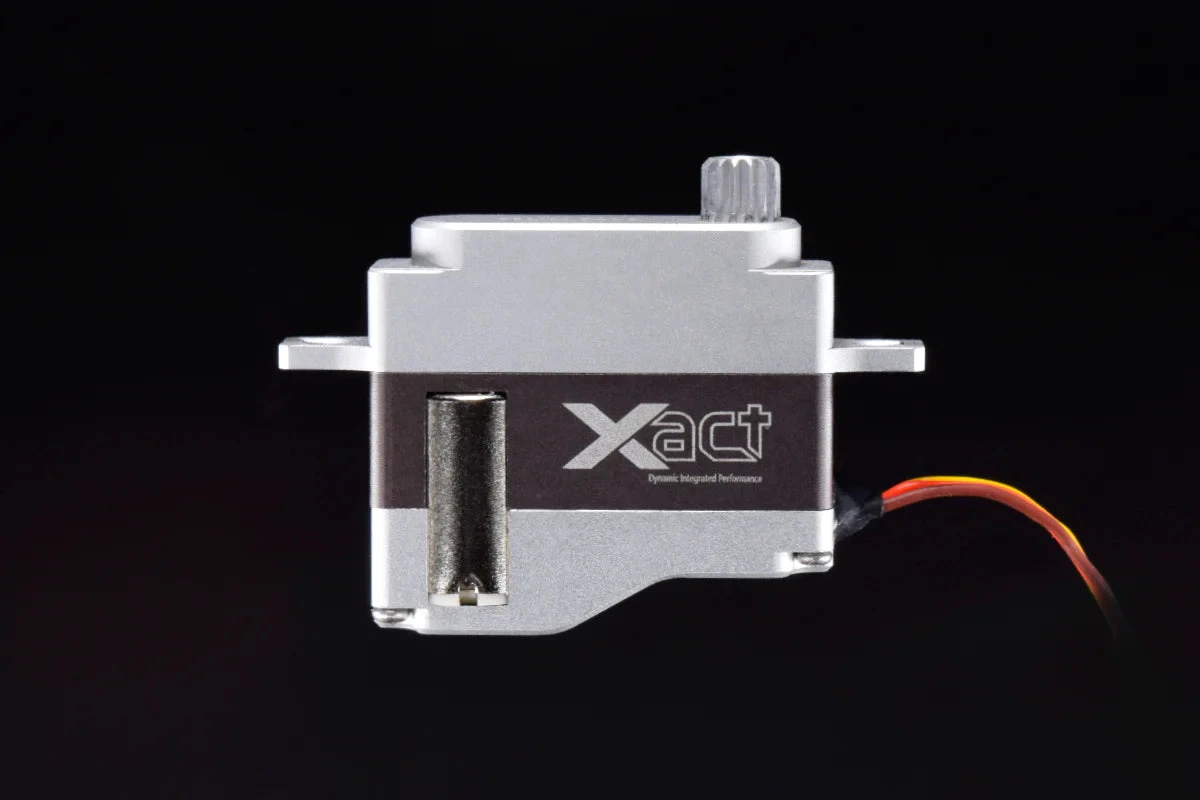

A high performance servo for F5J, DLGs or any other lightweight aircraft, telemetry capable too! FrSky presents the Xact HV5652 servo, ready for any application where you need a small, lightweight and powerful wing servo.
Inside the CNC machined Aluminum case is a set of all metal gears, spun by a coreless motor for quicker response and riding on dual ball bearings.
It’s slim at only 8mm thick and has excellent speed and torque as well as a wide voltage range from 3.7V, all the way up to 8.4V making it a versatile choice for DLGs, F5J and other small, lightweight aircraft.
But that’s not all, FrSky has incorporated telemetry sensors built right into the servo! They work with any FrSky F-Port 2.0 capable receiver and measure real time current draw and input voltage. You can also configure range of motion, direction and more via your radio’s LUA script and perform firmware updates through your radio’s SmartPort.
Specifications:
| Servo Type | Digital |
| Gear Type | Metal |
| Motor Type | Coreless |
| Stall Torque | 2.10Kg-cm (29.1 oz-in) @3.7V 2.4Kg-cm (33.3 oz-in) @4.2V 4.8Kg-cm (66.6 oz-in) @8.4V |
| Speed | 0.11sec/60°@3.7V 0.10sec/60°@4.2V 0.05sec/60°@8.4V |
| Spline | 4mm, 15T |
| Voltage Range | 3.7-8.4V (1-2s LiPo) |
| Dimensions | 19x8x23mm |
| Weight | 10g |
