GliderTimer-Pro
Original price was: $162.00.$98.99Current price is: $98.99.
- The best quality products, always.
- Sustainable materials, for a better tomorrow.
- Control the delivery date and try to deliver it in the fastest time
- Safe and Secure Shopping

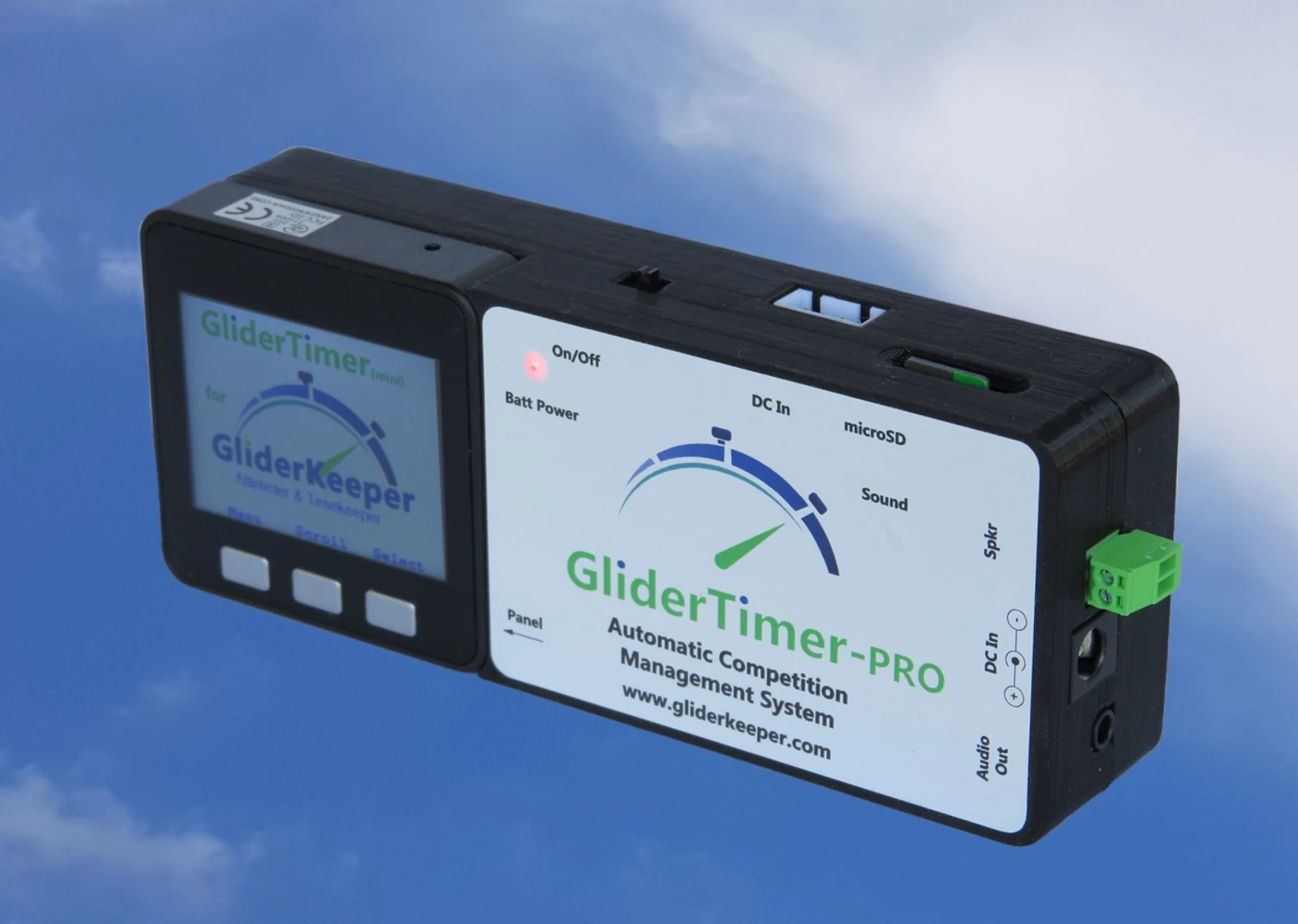

The Glider Timer-Pro can manage full size F5J competitions. The GliderTimer (mini) and the GliderKeeper do the time keeping and upload the results. No more transcription errors, delays or distracted timekeepers.
Here’s a link to the user manual.
The GliderTimer-Pro system utilizes the GKSync+ system and that allows all GliderTimers to run at UTC time precisely. During a contest The GliderTimer-Pro makes all of the announcements through the contest PA system for both launching and landing events. Upon landing the individual competing GliderKeepers transmit their data to the GliderTimer-Pro, which in turn uploads the contest data into the GliderScore app.
Below is diagram and list of the ports on the GliderTimer-Pro.
- 12C Port
- Serial Communication: Field Display Panel Terminals
- USB Charging Port
- Power / Reset summary
- Master Power Switch
- DC input Hx10 (3s batt balance)
- Micro SD Card Slot
- Local 3W Speaker Output Terminal
- DC Input Jack 5.5mm (outside barrel is ground)
- 3.5mm Stereo Minijack Output for PA System
- Control Buttons
Specifications:
- Dimensions: 228x135x54
- Weight: 155g
- Power Supply: 5.2 – 40Vdc (both Inputs) plus a 5V USB C charger.
- Current Consumption: Approx 200mAh
- Battery: 1000mAh 1s LiPo
- Speaker: (external, not supplied) 3 Watts Output
- Screen: 320×240 RGB TFT
- Memory Storage: One classification and one Flyoff (mode PRO) competitions. 16GB micro SD card supplied for speech and background sound.
- Panels Supported: Direct 12C, TTL Serial 9600 / 1920 baud rate, Standard or Extended Protocol.
- WiFi: 802.11 b/g/n WPA/2
Electrical Connectors:
- Panel: 15EDG 2.54mm x 4 pins
- Speaker: 15EDG 2.54mm x 2 pins
- Top DC in: XHB 2.54mm x 4 pins
- Side DC in: 5.5×2.1 DC Jack (outer barrel is Neg / Ground)
- PA Out: 3.5mm stereo minijack
