KST DS565X – 6.0Kg .04sec Heli Tail Servo

Put some extra whirly in your bird with KST’s DS565X tail servo. This mini sized servo has got CNC’d aluminum cases, all metal gears, a coreless motor, dual BB’s on the output shaft and handles 8.4 volts.

This is a narrow band (760us) servo, and so you’ll want to be sure that your that your gyro is compatible.

Operating Voltage	6.0 ~ 8.4V DC
Torque @ 6.0V	4kg.cm
Torque @ 7,4V	5kg.cm
Torque @ 8.4V	6kg.cm
Speed @ 6.0V	0.06sec / 60°
Speed @ 7.4V	0.05sec / 60°
Speed @ 8.4V	0.04sec / 60°
Travel Angle
Operating Temperature Range

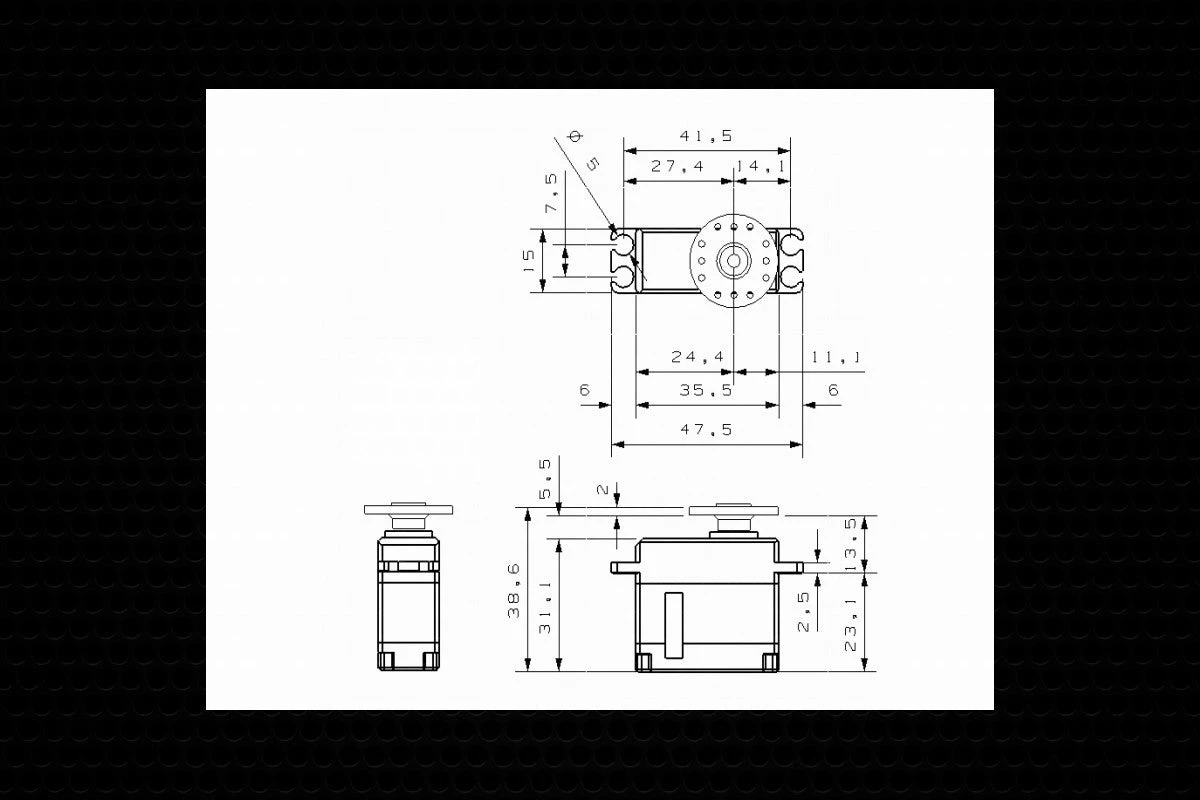

Dimensions

35.5x15x32.5mm (mini)

Weight

40g

Working Frequency	760us
Motor Type	15mm Coreless
Output Shaft Support	Dual Ball Bearing
