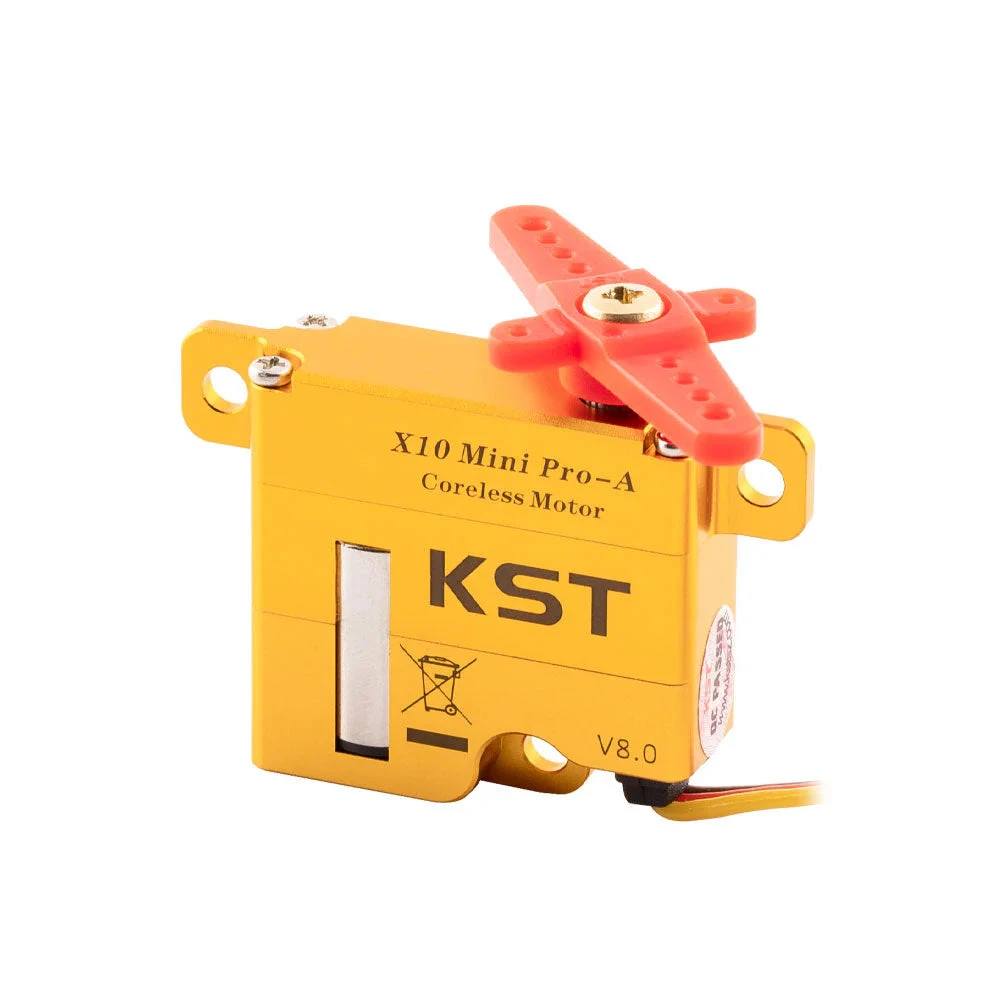

KST X10 Mini Pro-A Wing Servo – 8Kg (111 Oz In), 0.08sec – Wide Voltage

The new X10 Mini Pro servo is a brilliant mini servo for competition gliders, such as F5J and F5B and large scale gliders.

Compared to the regular X10 Mini servo, it has a higher torque, faster speed with a larger travel angle. X10 Mini Pro servo has an outstanding 8.0Kgf.cm torque and an amazing 0.08sec speed.

Support is available for customizing the servos for a unique flight experience via the programming feature. Moreover, this servo is equipped with a CNC aluminum case and hardened steel gear to improve durability and precision. It is definitely a superb micro servo for a fantastic flight.

Features:

• Ultra High Torque & Excellent Speed
• Programmable
• Supports Soft Start
• Hardened Steel Gears
• Anodized CNC Aluminium Case
• Smaller Size and Larger Travel Angle
• Ideal for Competition Gliders and Large Scale Gliders

Specifications:

• Voltage Range: DC4.8V-8.4V
• Torque: [email protected], [email protected], [email protected], [email protected]
• Speed: 0.13sec/60°@4.8V, 0.11sec/60°@6.0V, 0.09sec/60°@7.4V, 0.08sec/60°@8.4V
• Working Frequency: 1520μs/333Hz
• Default Travel Angle: ±60°=120° Total
• Temperature Range: -10℃…….+65℃
• Case Material: Aluminium Alloy
• Motor Type: Coreless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Potentiometer
• Case Dimensions: 30mm*10mm* 28mm±0.2mm
• Weight: 20g±10%

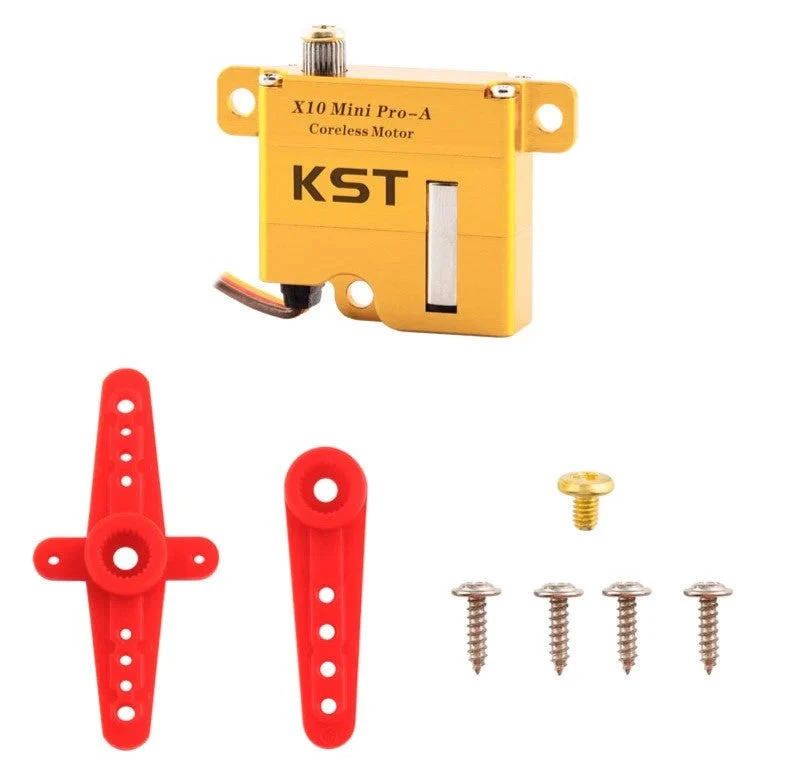

Package Includes:

1 * X10 Mini Pro Servo
1 * Servo Horn Screw
2 * Plastic Servo Horns
4 * Mounting Screws
