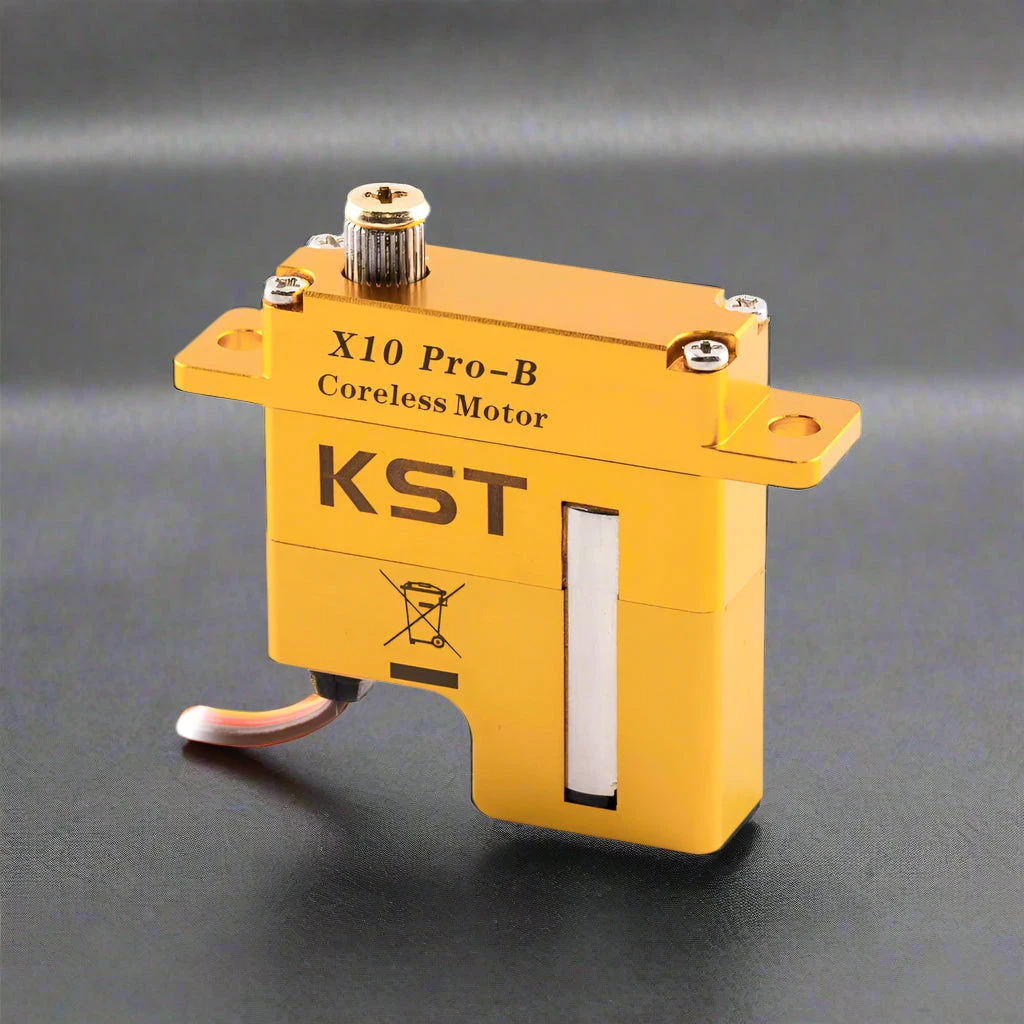

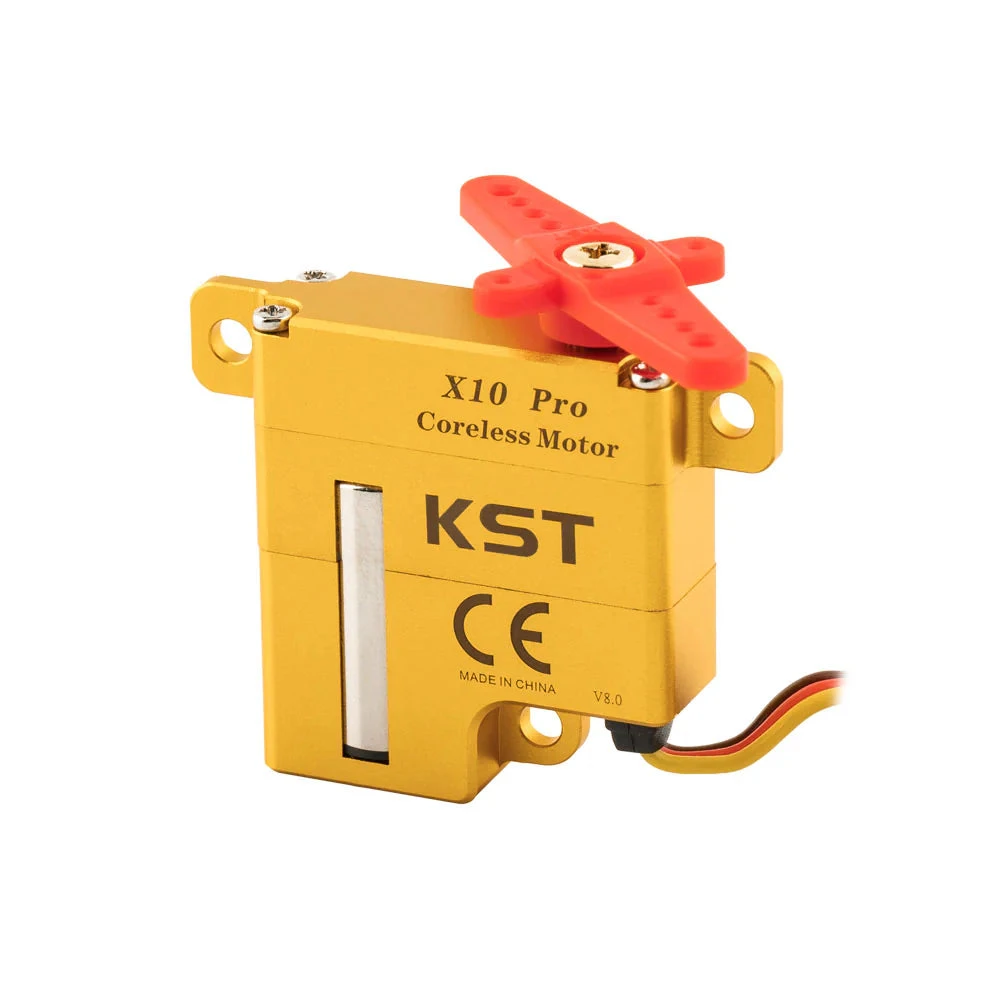

KST X10 Pro-A Wing Servo – 11.5Kg (149.98 Oz In), 0.10sec – Wide Voltage

Introducing the new KST X10 Pro-A servo, designed to take your competition gliders and large-scale gliders to new heights.

Compared to its predecessor, the X10 Pro surpasses expectations with its compact size, yet boasts an impressive 11.5kgf.cm high torque and a blazing fast 0.10sec speed. Built with hardened steel gears, it ensures durability and precision, making it reliable for demanding flights.

Customize your experience with the programmable features of the X10 Pro servo, tailoring it to your specific needs. Elevate your flight experience and conquer the skies with the KST X10 Pro servo, your ultimate choice for gliding excellence.

Features:

• Ultra High Torque & Excellent Speed
• Programmable
• Supports Soft Start
• Hardened Steel Gears

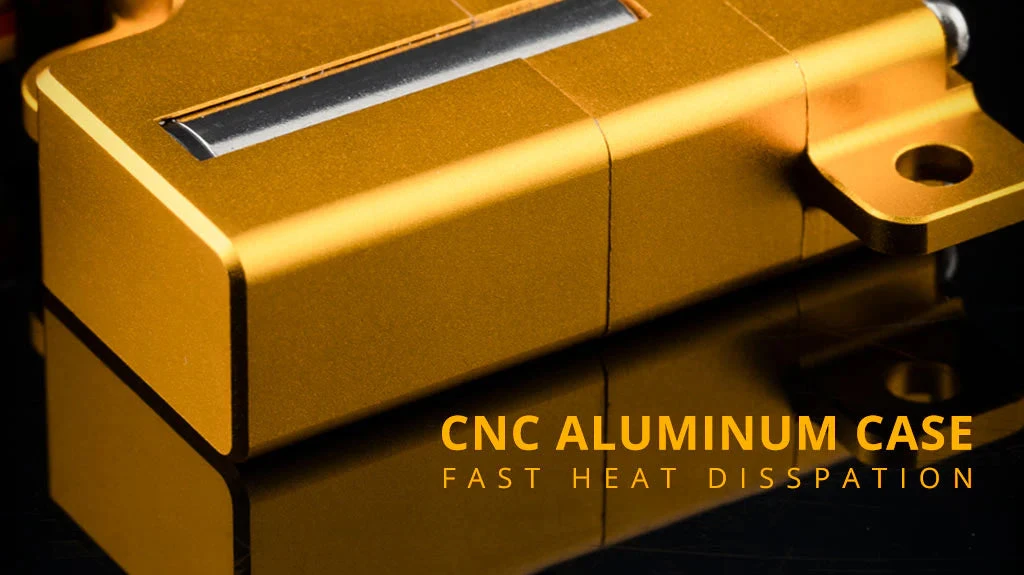

• Anodized CNC Aluminium Case
• Ideal for Competition Gliders and Large Scale Gliders

Specifications:

• Voltage Range: DC4.8V-8.4V
• Torque: [email protected], [email protected], [email protected], [email protected]
• Speed: 0.16sec/60°@4.8V, 0.14sec/60°@6.0V, 0.12sec/60°@7.4V,0.10sec/60°@8.4V
• Working Frequency: 1520μs/333Hz
• Default Travel Angle: ±60°=120° Total
• Temperature Range: -10℃…….+65℃
• Case Material: Aluminium Alloy
• Motor Type: Coreless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Potentiometer
• Case Dimensions: 30mm*10mm* 33.5mm±0.2mm
• Weight: 25g±10%

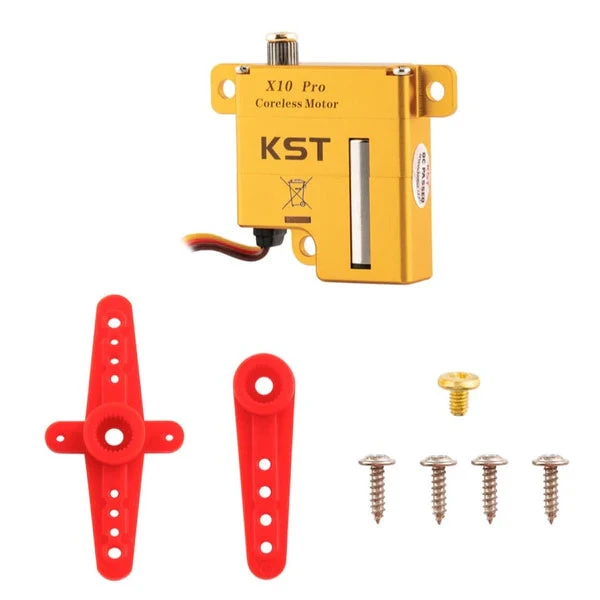

Package Includes:

1 * X10 Pro Standard Servo
1 * Servo Horn Screw
2 * Plastic Servo Horn
4 * Mounting Screw
