Mega 16/25/4 CE F5J
Original price was: $135.00.$94.50Current price is: $94.50.
- The best quality products, always.
- Sustainable materials, for a better tomorrow.
- Control the delivery date and try to deliver it in the fastest time
- Safe and Secure Shopping

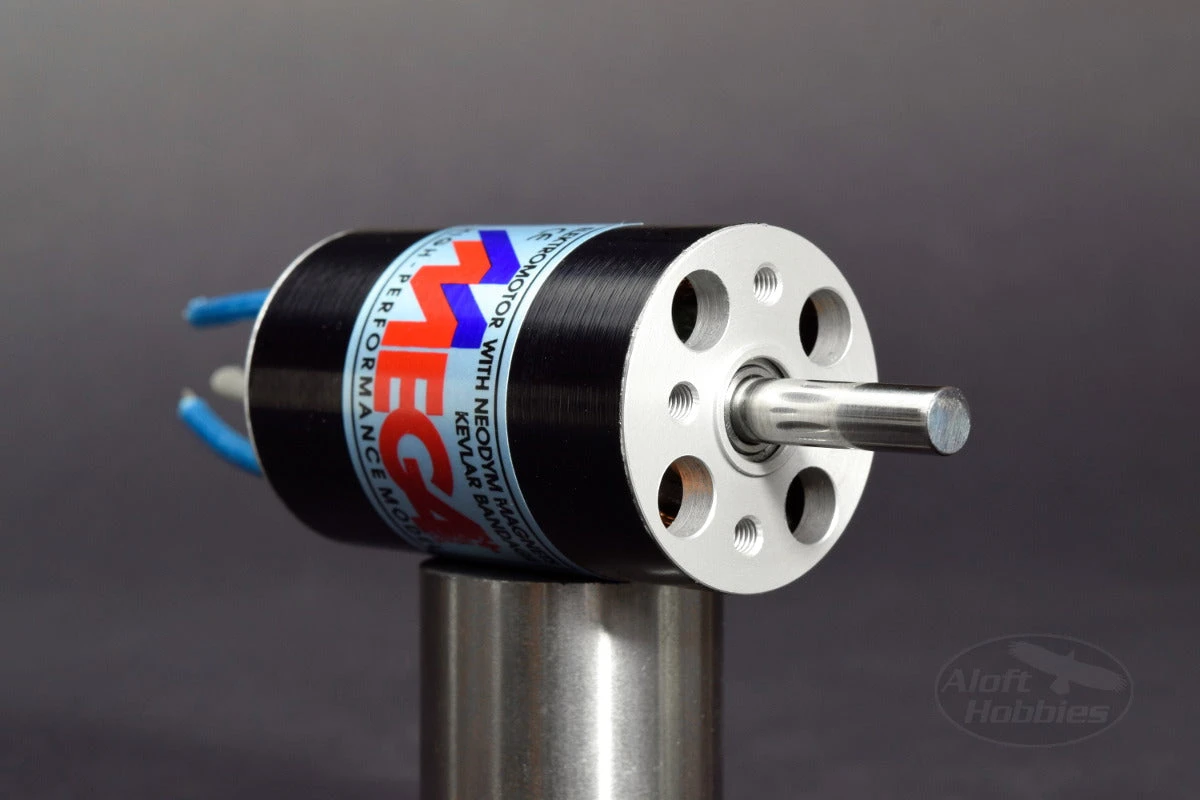

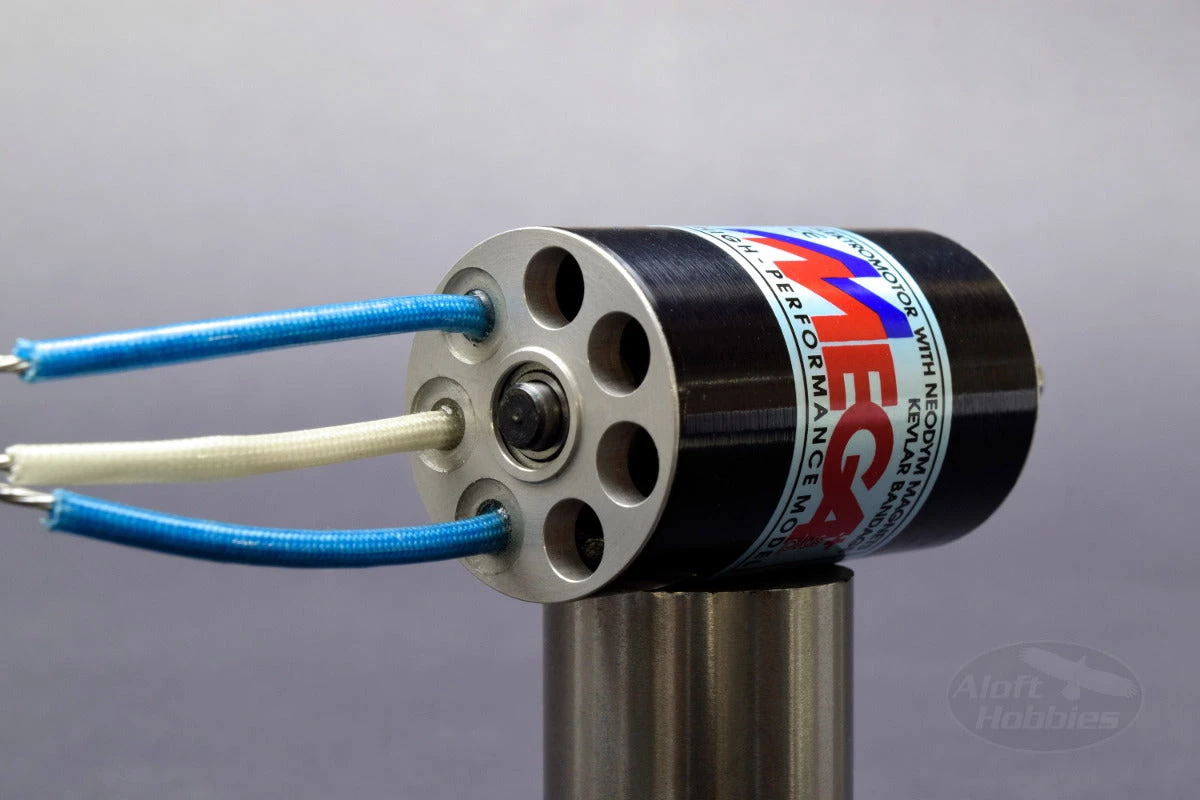

Specifically designed for F5J, this is the Mega 16/25/4CE F5J. It is a 3 Phase, 6 pole, permanent magnet inrunner, with a hardened steel, 5mm shaft riding on high quality ball bearings. The lightweight rotor is loaded with neodymium magnets and wrapped in kevlar and then dynamically balanced. The kevlar hold the magnets in place, withstanding RPMs in excess of 35,000. The hand wound stators and tight tolerances of the rotor / stator all contribute to its 86% efficiency rating.
Suggested props:
3S – 10×8 = 38 amps, Static Thrust: 2018g/71oz estimated 63mph
4S – 8×7 = 30 amps, Static Thrust: 1970g/69.5oz estimated 80mph
4S – 9×6 = 38 amps, Static Thrust: 2211g/78oz estimated 68mph

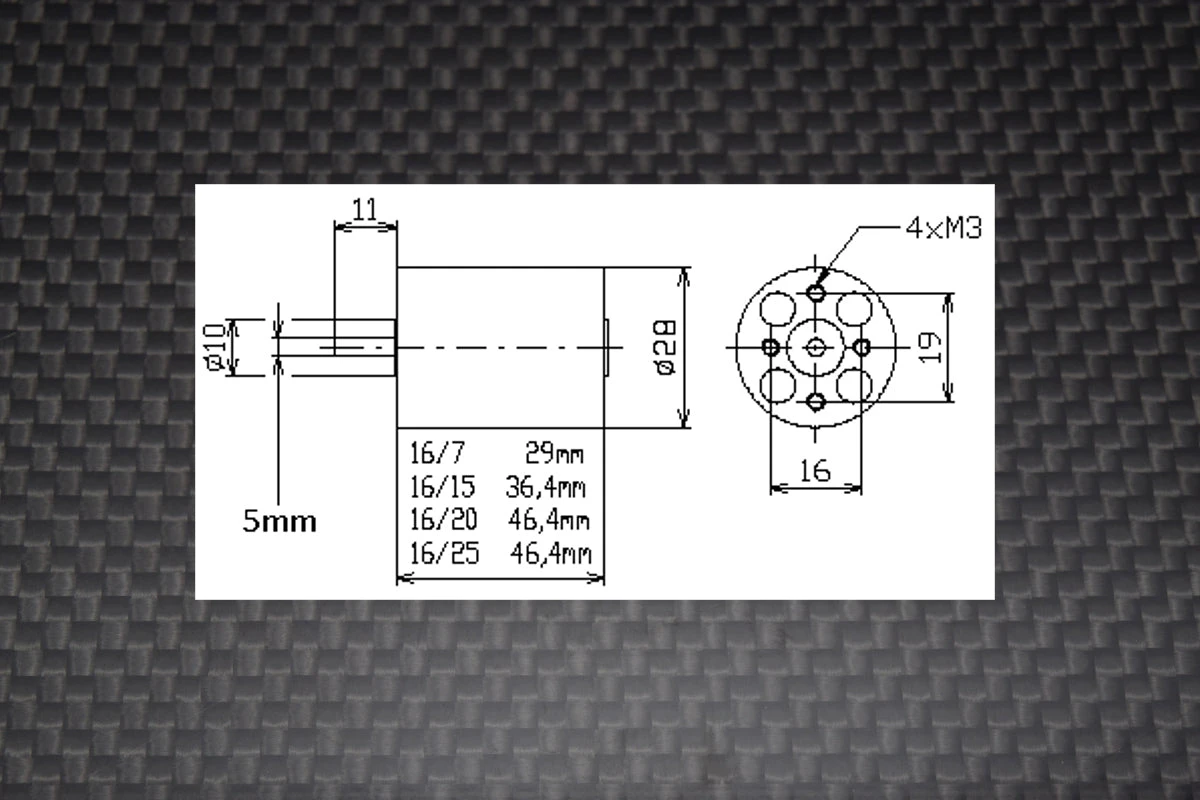

| Dimensions | Dia: 28mm L: 46mm |
| Weight | 115g |
| No. of Cells (LiPo) | 3-4s |
| Max Current | 40A |
| KV | 1165 |
