MKS DS6100 Servo – 3.32 Kg (46.11 Oz-in), 0.11 Sec – 9.5g
Original price was: $42.50.$29.75Current price is: $29.75.
- The best quality products, always.
- Sustainable materials, for a better tomorrow.
- Control the delivery date and try to deliver it in the fastest time
- Safe and Secure Shopping

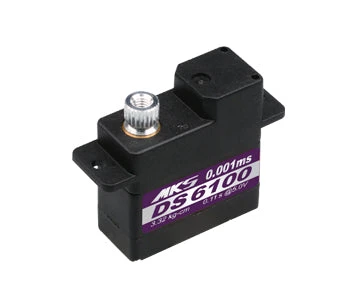

The MKS DS6100 Servo.
Specs :
- Dead Band : 0.001ms (Default)
- RX Required Pulse : 3.0 ~ 5.0 Volt Peak to Peak Square Wave
- Potentiometer Drive : Direct Drive
- Driver Type : FET
- Bearing Type : 2 Jewel Bearing + 1 Bronze Bushing
- Connector Wire Length : 15cm (5.9 in)
| SERVO TYPE | PWM |
|---|---|
| GEAR TYPE | Chrome-Titanium |
| STALL TORQUE | 3.19Kg.cm (44.3 oz-in)@4.8v | 3.32Kg.cm (46.11 oz-in)@5v |
| SPEED | 0.12sec/60°@4.8V | 0.11sec/60°@5V |
| DIMENSIONS | 22.5 x 10 x 23.5mm (0.89x 0.39x 0.93 in) |
| WEIGHT | 9.5g (0.335 oz) |
| OPERATING TEMPERATURE | -10 to + 60° C |
| OPERATING VOLTAGE | 4.8 ~ 5.0V |
| SERVO WORKING FREQUENCY | 1500μs / 333hz, data: 850μs~2150μs |
| SERVO MOTOR TYPE | Coreless Motor |
