MKS DS75k Servo – 2.20 Kg (30.55 Oz-in), 0.13 Sec
Original price was: $67.99.$47.59Current price is: $47.59.
- The best quality products, always.
- Sustainable materials, for a better tomorrow.
- Control the delivery date and try to deliver it in the fastest time
- Safe and Secure Shopping

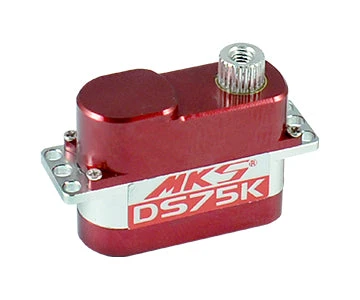

MKS DS75K Servo
The MKS DS75K is another small servo tailored for a variety of uses including but not limited to F3K, F5D, and other applications that require or desire excellent precision, great torque, and adequate speed all in a 9mm package.
Specs:
- Dead band : 0.001ms (Default)
- Potentiometer Drive : Direct Drive
- Driver Type : FET
- Bearing Type : 2 Bearing
Here’s a video for you to see how one guy used these servo’s.
| SERVO TYPE | PWM |
|---|---|
| GEAR TYPE | 7075 Chrome-Titanium |
| STALL TORQUE | 1.85Kg.cm (25.69 oz-in)@4.8v | 2.20Kg.cm (30.55 oz-in)@6v |
| SPEED | 0.16sec/60°@4.8V | 0.13sec/60°@6V |

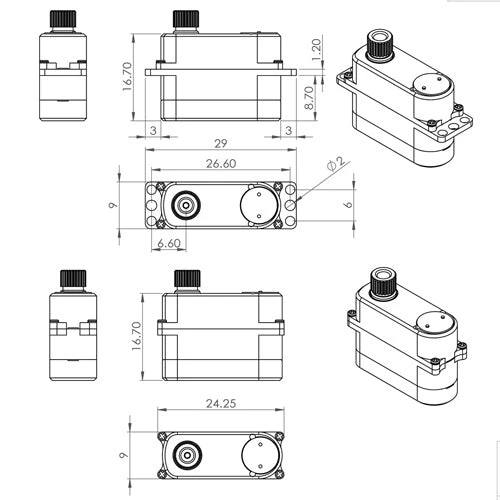

| DIMENSIONS | 23 x 9 x 16.7 mm |
| WEIGHT | 7.5g |
| OPERATING TEMPERATURE | -10 to + 60° C |
| OPERATING VOLTAGE | 3.7 ~ 6.0V |
| SERVO WORKING FREQUENCY | 1500μs / 333hz, data: 850μs~2150μs |
| SERVO MOTOR TYPE | Coreless Motor |
