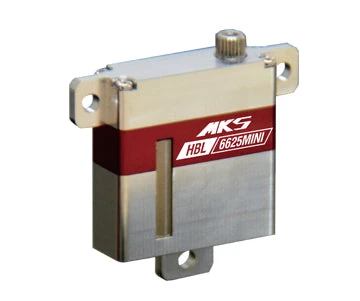

The all new MKS HBL6625 mini is their latest 10mm thick wing servo.

This is a market first, bringing brushless motor technology into a 10mm thick wing servo! Once you have tried MKS, you will know you have tried the very best! Never has a glider servo been so accurate and tight! This is what we all have been searching for!! The HBL6625 has a full CNC aluminum case that has been milled to the highest of tolerances.

Specs :

Dead Band : 0.001 ms
Potentiometer Drive : Direct Drive
Bearing Type : Dual Ball Bearings
Programmable : No
Connector Wire Length : 15.0 cm (5.89 in)

SERVO TYPE	PWM
GEAR TYPE	Chrome-Titanium
STALL TORQUE	5.2Kg.cm (72.21 oz-in)@6v \| 5.6Kg.cm (77.77 oz-in)@7.4v \| 6.0Kg.cm (83.32 oz-in)@8.4v
SPEED	0.14sec/60°@6V \| 0.11sec/60°@7.4V \| 0.10sec/60°@8.4V

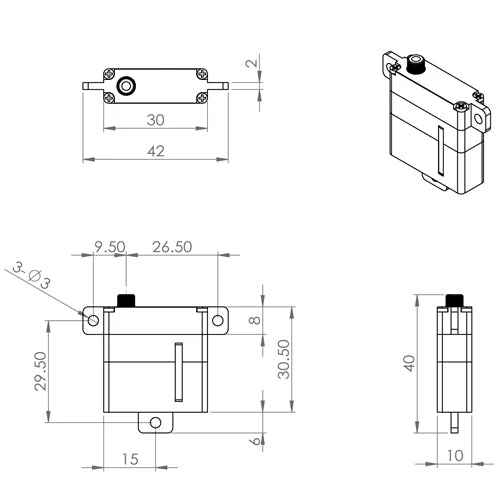

DIMENSIONS	30 x 10 x 29.9mm
WEIGHT	26.97g
OPERATING VOLTAGE	4.8~8.4V
SERVO WORKING FREQUENCY	1520μs / 333hz
SERVO MOTOR TYPE	Brushless Motor
