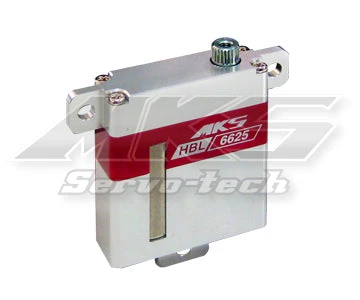

The MKS HBL6625 Wing Servo

The all new MKS HBL6625 is their latest 10mm thick wing servo.

This is a market first, bringing Brushless motor technology into a 10mm thick wing servo! Once you have tried MKS, you will know you have tried the very best! Never has a glider servo been so accurate and tight! This is what we all have been searching for!! The HBL6625 has a full CNC aluminum case that has been milled to the highest of tolerances.

Specs:

Dead Band : 0.001 ms
Potentiometer Drive : Direct Drive
Bearing Type : Dual Ball Bearings
Programmable : No
Connector Wire Length : 15.0 cm (5.89 in)

SERVO TYPE	PWM
GEAR TYPE	Chrome-Titanium
STALL TORQUE	8.2Kg.cm (113.88 oz-in)@6v \| 9.6Kg.cm (133.32 oz-in)@7.4v \| 10.4Kg.cm (144.43 oz-in)@8.4v
SPEED	0.16sec/60°@6V \| 0.127sec/60°@7.4V \| 0.11sec/60°@8.4V
DIMENSIONS	30 x 10 x 35.5mm (1.18 x 0.39 x 1.39 in)
WEIGHT	27.85g
OPERATING VOLTAGE	4.8~8.4V
SERVO WORKING FREQUENCY	1520μs / 333hz
SERVO MOTOR TYPE	Brushless Motor
