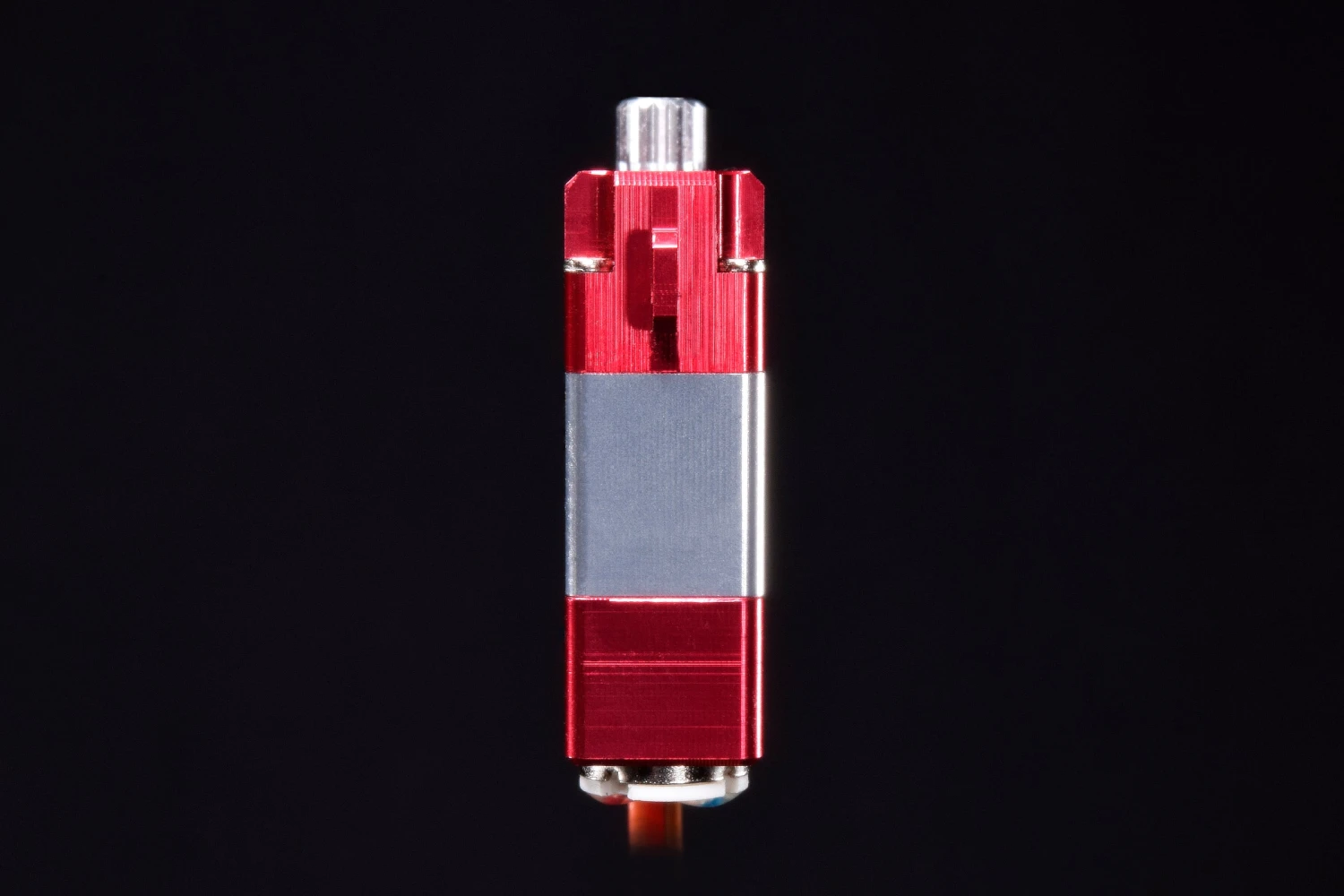

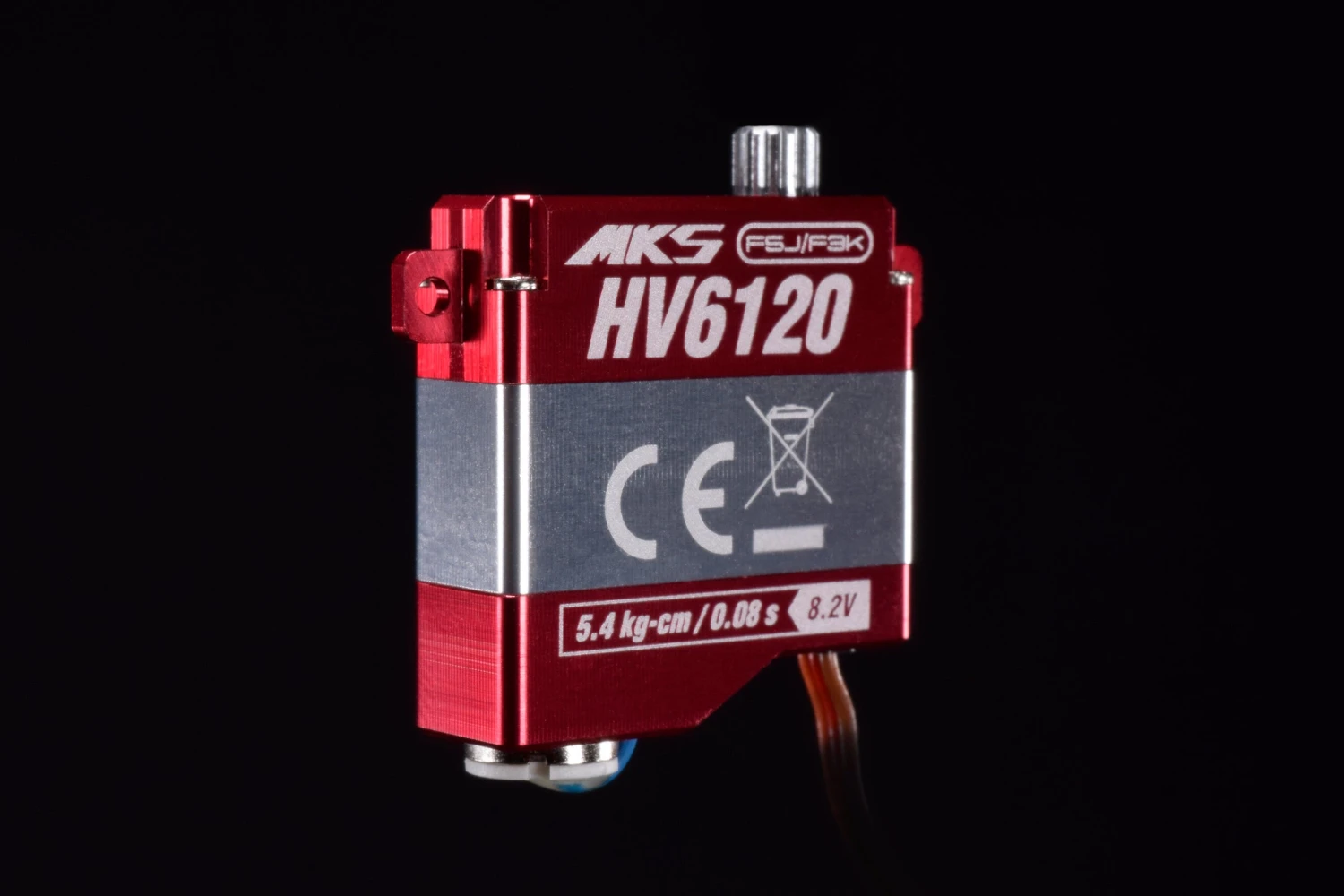

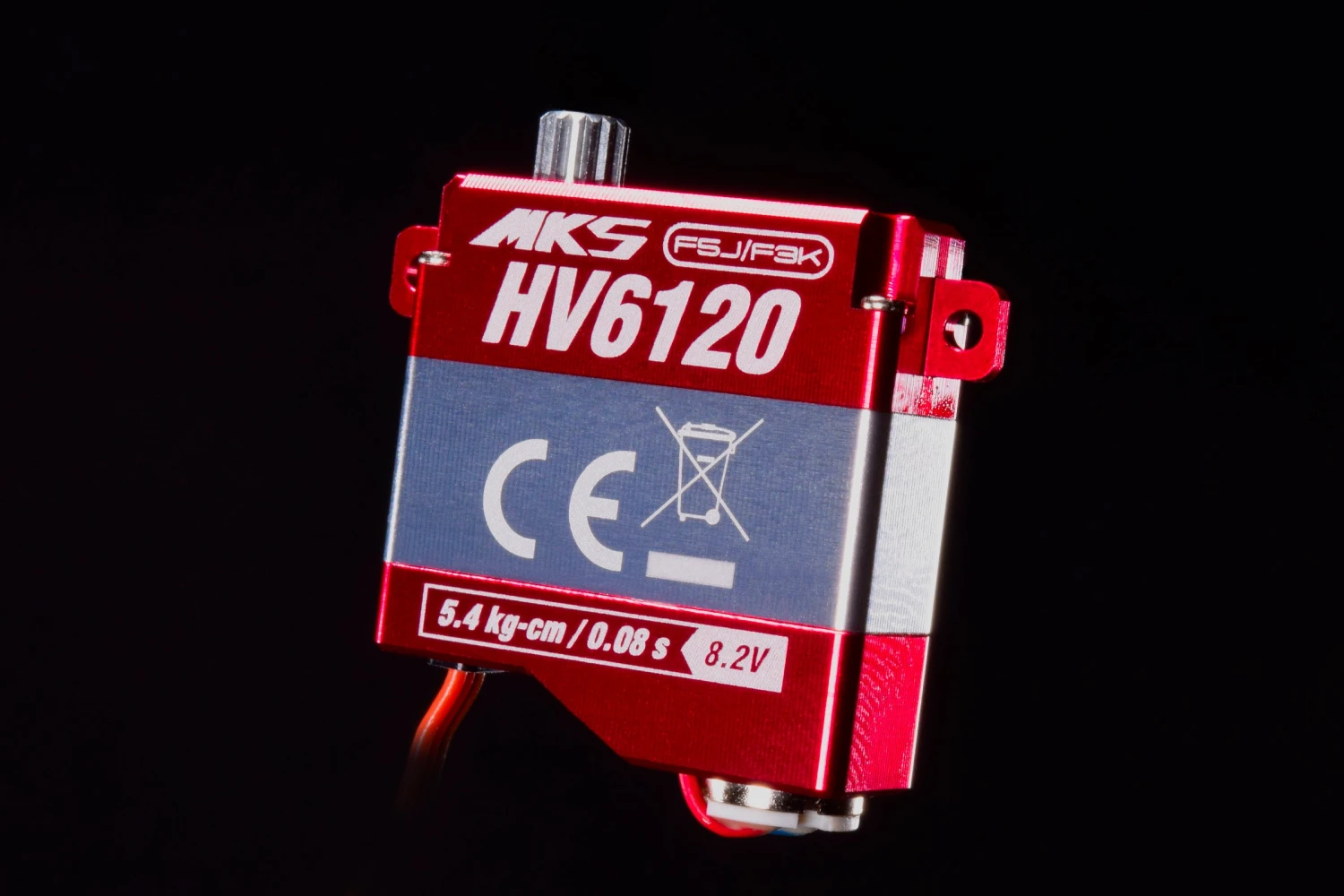

MKS HV6120 Wing Servo – 5.4 Kg (74.9 Oz-in), 0.08 Sec – 11g

Original price was: $62.10.Current price is: $43.47.

SKU: YWXVZ 6812202827913 Categories: Radio Gear, Servos Tags: Tabs:horizontal, Torque:5.4, Voltage:7.4, Width:8

The best quality products, always.
Sustainable materials, for a better tomorrow.
Control the delivery date and try to deliver it in the fastest time
Safe and Secure Shopping

Description
Reviews (0)

A high performance sub micro wing servo for F5K/F5J. MKS presents the HV6130. Like all MKS servos, it utilizes quality components and ultra tight tolerances for superb resolution and holding torque. It features a wide voltage range, from 3.7 to 8.4V. At 8mm thick, it’s an excellent choice for use as a wing servo in F5J/F6K gliders. 5.4kg of torque on 8.4v and a 0.008 transit time means these little servos will make short work of any application where you need a small, thin, high quality sub micro wing servo.

Servo Type	Digital, Sub Micro, Wing
Gear Type	Metal Alloy
Motor Type	Coreless
Stall Torque	2.54Kg-cm (35.2 oz-in) @3.7V 3.3Kg-cm (45.8 oz-in) @4.8V 4.1Kg-cm (56.9 oz-in) @6.0V 5.0Kg-cm (69.4 oz-in) @7.4V 5.4Kg-cm (74.9 oz-in) @8.4V
Speed	0.18sec/60°@3.7V 0.139sec/60°@4.8V 0.11sec/60°@6V 0.089sec/60°@7.4V 0.08sec/60°@8.4V
Working Frequency	1520μs / 333Hz
Deadband	0.001 ms
Bearing	2x Ball Bearings
Voltage Range	3.7-8.4v 1s-2s LiPo
Dimensions	23x8x25.2mm
Weight	11g
