MKS HV69 Wing Servo – 10.2 Kg (141.7 Oz-in), 0.10 Sec – Wide Voltage

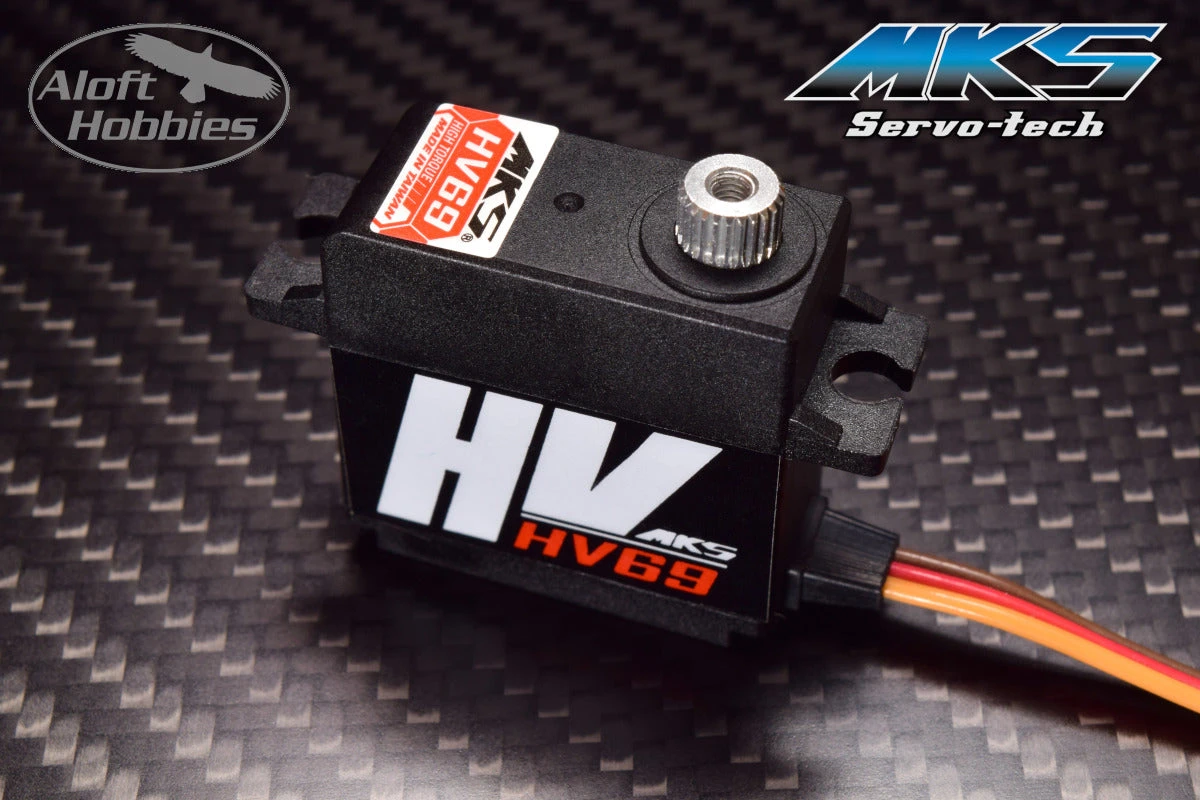

MKS HV69 Wing Servo

The MKS HV69 servo is a well priced high performance servo with excellent torque and speed. At 13 mm thick it is suitable for mounting in the fuselage or in thicker wings and tails.

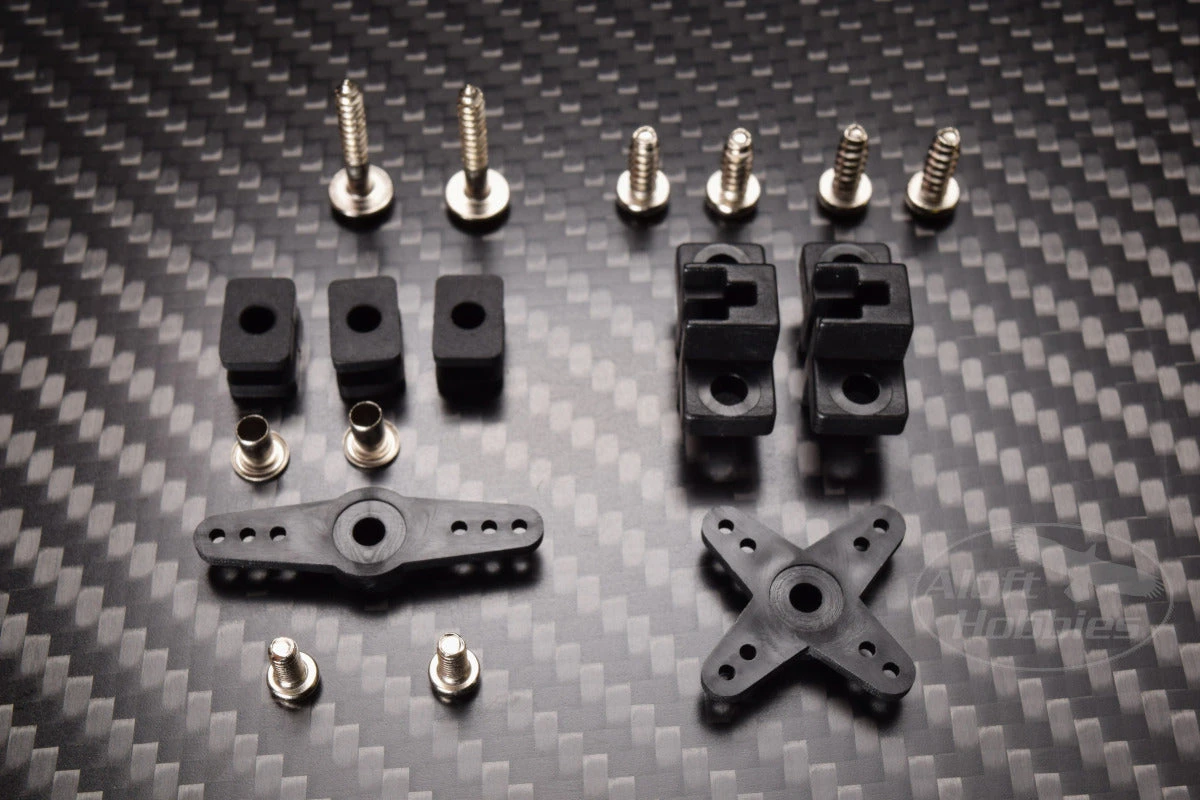

It is supplied with very useful wing mounting brackets which allow it to be mounted easily horizontally as a wing servo, in addition to conventional mounting.

Output shaft is the larger 6mm 25 spline.

Specs :

Spline Size	6mm 25 Tooth
Dead Band	0.001ms (Default)
Control System	+Pulse Width
Working Frequency	1520µs / 333HZ
Operating Voltage	3.7~8.2VDC (1s~2s LiPo)
Operating Temperature Range	-10° ~ 60°C (14° ~ 140°F)
Operating Speed 4.8V	0.17 sec/° no load
Operating Speed 6V	0.13 sec/° no load
Operating Speed 7.4V	0.11 sec/° no load
Operating Speed 8.4V	0.10 sec/° no load
Stall Torque 4.8V	6.0kg-cm / 83.3oz-in
Stall Torque 6V	7.50kg-cm / 104.2oz-in
Stall Torque 7.4V	9.20kg-cm / 127.8oz-in
Stall Torque 8.4V	10.2kg-cm / 141.7oz-in
Motor Type	Coreless
Potentiometer	Direct Drive
Bearing Type	2x Ball Bearings
Gear Material	Metal Alloy

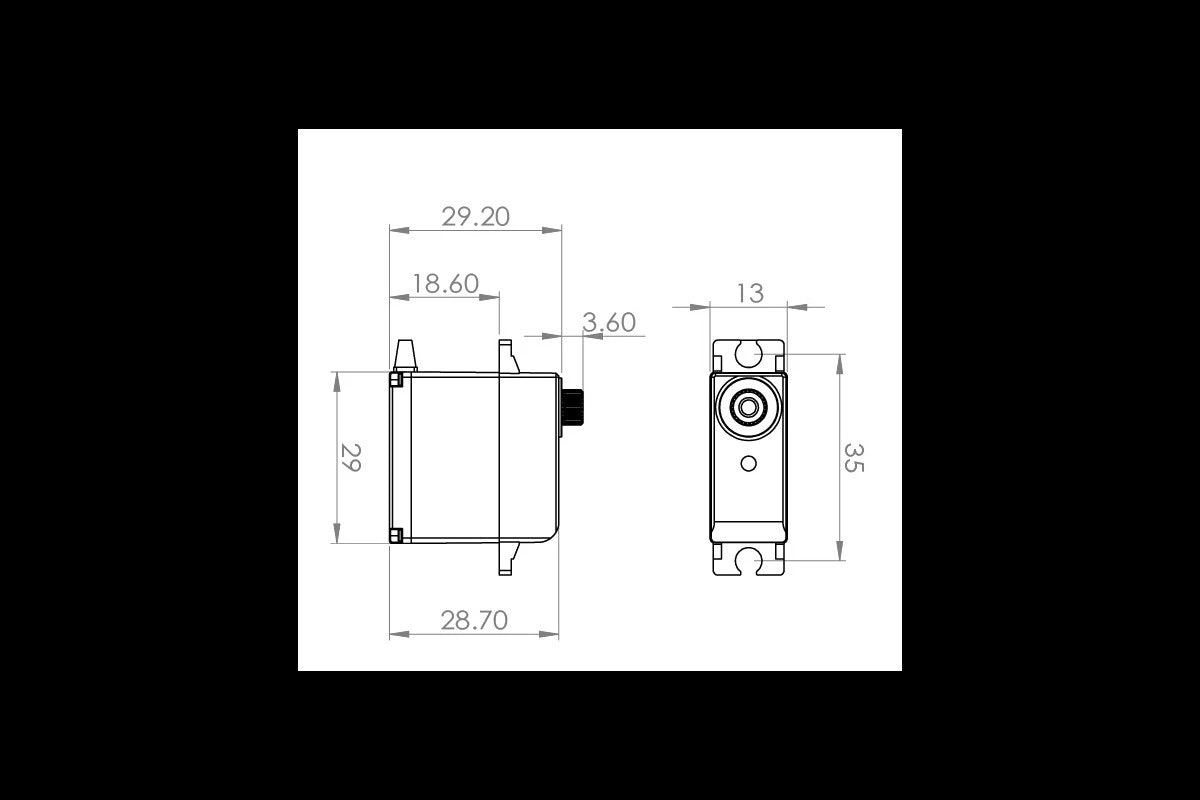

Dimensions	29x13x28.7mm / 1.14x.51×1.13in
Weight	21g / .74oz
