MKS HV75K-N Wing Servo – 3.3 Kg (45.83 Oz-in), 0.09 Sec – Wide Voltage
Original price was: $73.80.$51.66Current price is: $51.66.
- The best quality products, always.
- Sustainable materials, for a better tomorrow.
- Control the delivery date and try to deliver it in the fastest time
- Safe and Secure Shopping

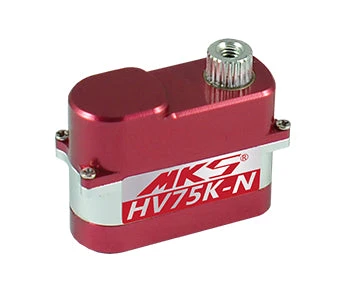

MKS HV75K-N Flangeless Wing Servo
MKS HV75K-N Flangeless Wing Servo
Specs :
- Dead Band : 0.001ms (Default)
- Potentiometer Drive : Direct Drive
- Driver Type : FET
- Bearing Type : 1x Ball bearing + 1x Oil retaining bearing + x Jewel bearing
| SERVO TYPE | Digital |
|---|---|
| GEAR TYPE | 7075 Chrome-Titanium |
| STALL TORQUE | 2.30Kg.cm (31.94 oz-in)@6v | 2.8Kg.cm (38.88 oz-in)@7.4v | 3.3Kg.cm (45.83 oz-in)@8.4v |
| SPEED | 0.13sec/60°@6V | 0.10sec/60°@7.4V | 0.09sec/60°@8.4V |

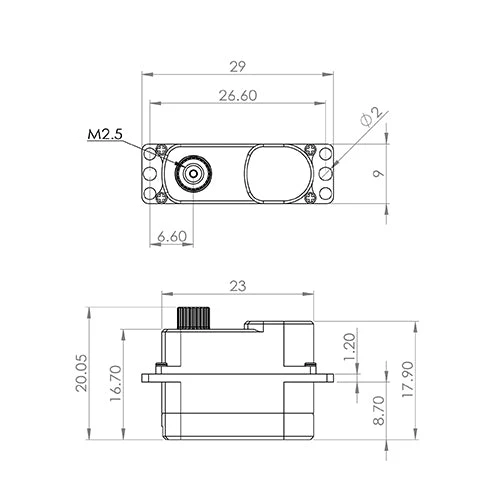

| DIMENSIONS | 23 x 9 x 16.7mm |
| WEIGHT | 7.4g |
| OPERATING TEMPERATURE | -10 to + 60° C |
| OPERATING VOLTAGE | 3.7 ~ 8.2V |
| SERVO WORKING FREQUENCY | 1520μs / 333Hz |
| SERVO MOTOR TYPE | Coreless Motor |
