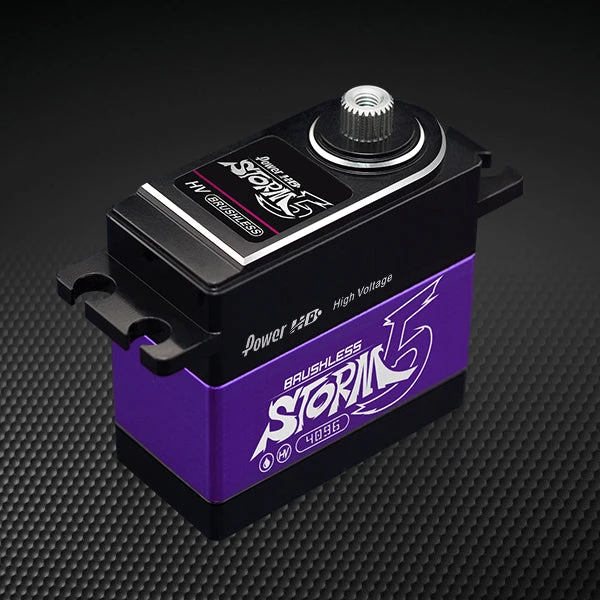

Power HD Storm-5 Servo – 18kg-cm (249.97 Oz-in), 0.065sec – High Voltage

Titanium and Aluminum gears, brushless motor; Quick.

Built to endure this rigors of 1/8 scale cars, the constant abuse from 600-800 size heli cyclics, the Storm-5 is ready to stand up to the job.

Why is it so good?

Brushless servo motors consistently provide more torque and power per gram of motor weight, while simultaneously being more efficient than either their brushed or coreless counterparts. Brushless servo motors are extremely tough and precise. They excel at relentless, cyclic, full speed direction reversals, handling them with ease. A very desirable characteristic for a servo motor.

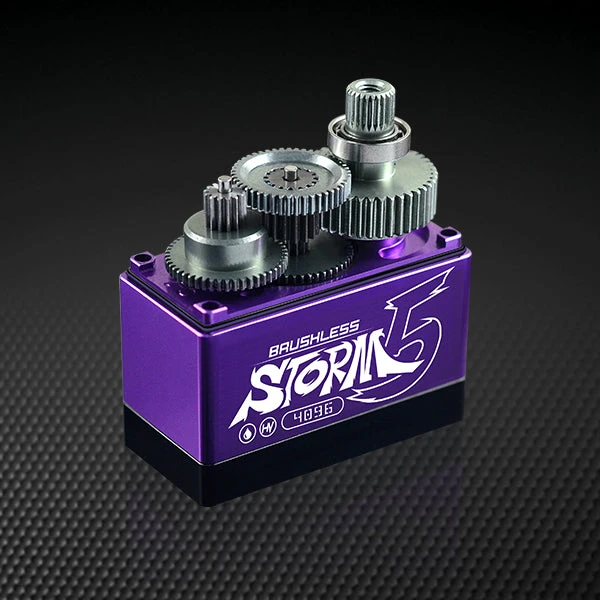

The Storm-5’s brushless motor spins titanium and aluminum gears that are supported by bronze bushings and dual ball bearings on the output shaft. The entire body of the servo is machined from aluminum making it stronger and more flex resistant than typical plastic cased servos.

Note: At the time of this writing the Storm-5 servos come with a black servo lead. There is a thin white stripe on one of the wires. That white stripe denotes the Signal wire. FYI

• We only carry the Storm-5 servos in Black at this time.

GEAR TYPE	Titanium and Aluminium
STALL TORQUE	15Kg.cm (208.31 oz-in)@6v | 18Kg.cm (249.97 oz-in)@7.4v
SPEED	.085sec/60°@6V | .065sec/60°@7.4V
DIMENSIONS	41 x 20 x 38.8mm (1.6 x .79 x 1.53in)
WEIGHT	78g (2.7oz)
OPERATING TEMPERATURE	-20°C ~ 60°C (-4°F ~ 140°F)
OPERATING VOLTAGE	6 ~ 8.4V DC
SERVO WORKING FREQUENCY	1520µs / 333hz
SERVO MOTOR TYPE	Brushless
BEARINGS	Dual Ball Bearings
