Servo Connector Crimping Tool

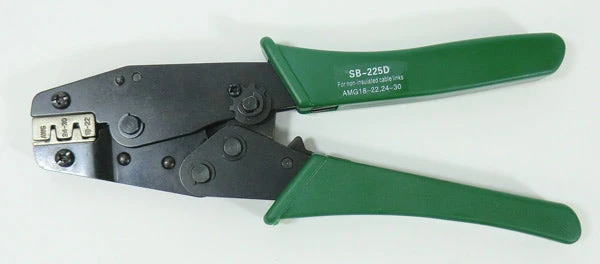

SB-225D Full cycle ratchet crimping tool for making servo extensions, etc.

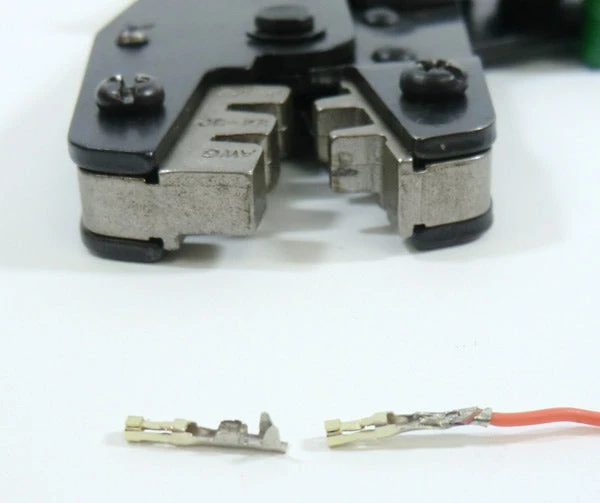

If the idea of being able to make your own custom length servo leads appeals to you, you might be interested in this crimping tool. I used to think a crimping tool was a waste of money. I used to use pliers when crimping and got , ummm,, well, mostly, “usable?” results. What can I say – the crimp tool does it better. The crimped connectors look factory made and the wire will not easily pull out.

SB-225D Full cycle ratchet crimping tool with interchangeable die set. For use with 18, 22, 24 and 30 gauge wires. Crimps D-Sub, Open Barrel, and 3 and 4 pin Molex connectors.

• Specifications:
• Model number: SB-225D
• The frame is made from heat treated, mild carbon steel.
• Dies are made from SAE J404C alloy steel.
• Black oxide finish
• Weight: 390g
• Crimping Range: AWG 18-22,24-30
