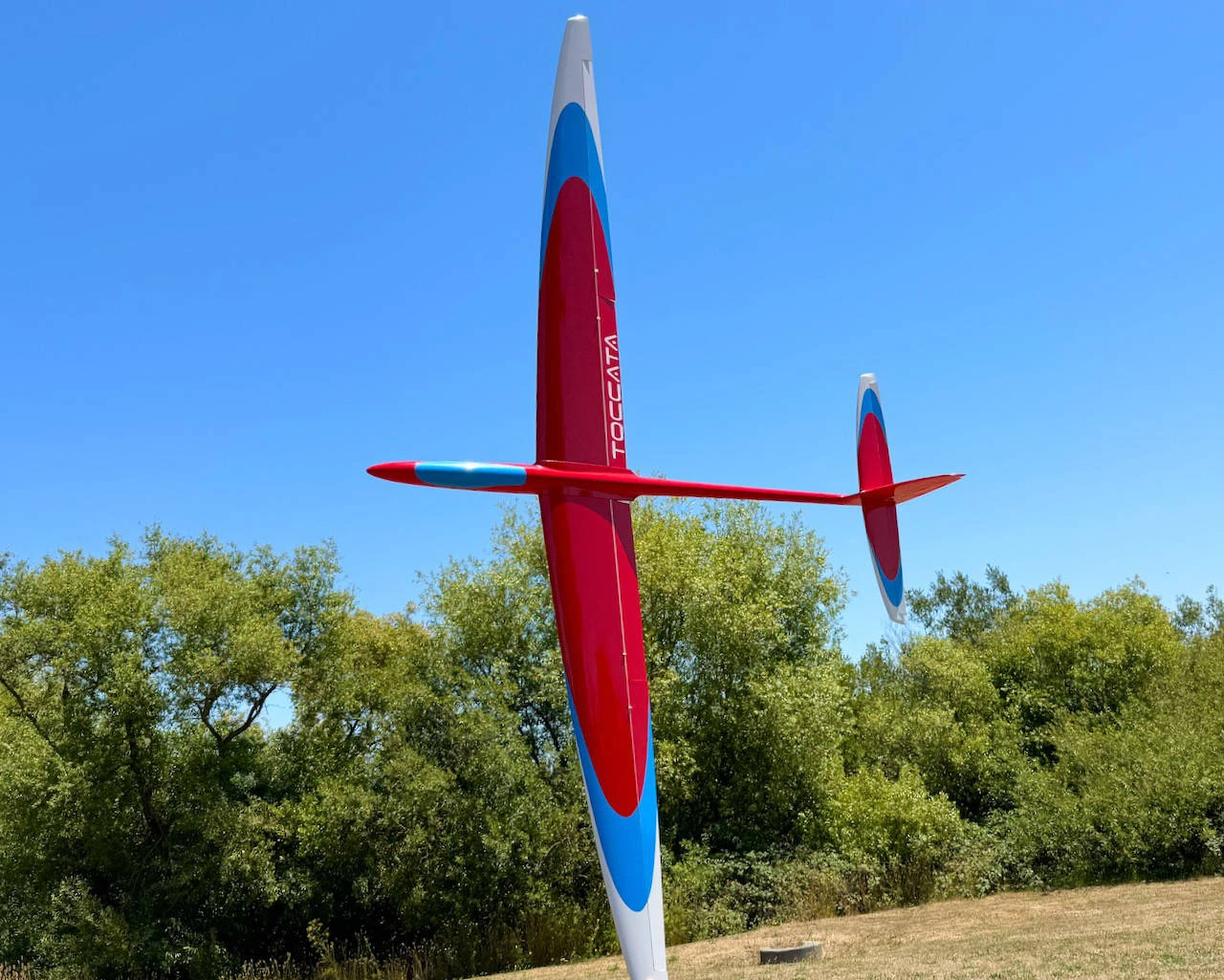

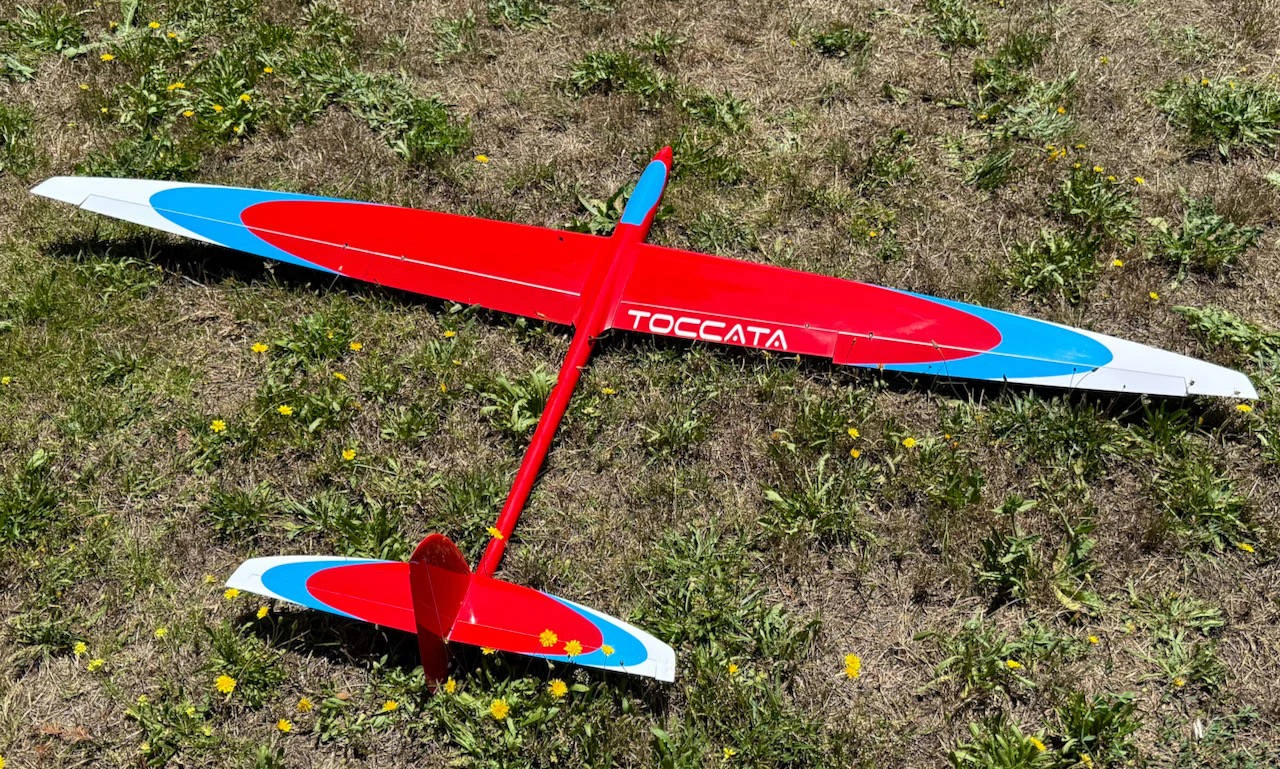

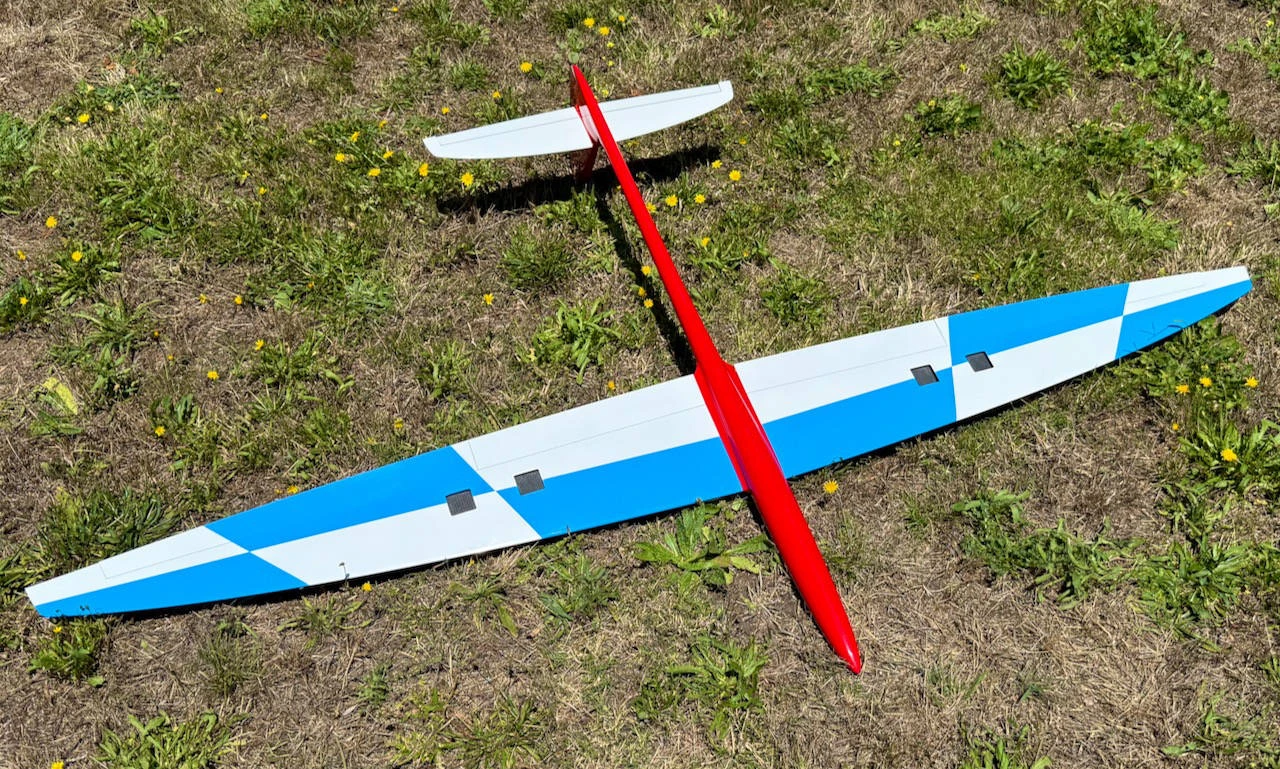

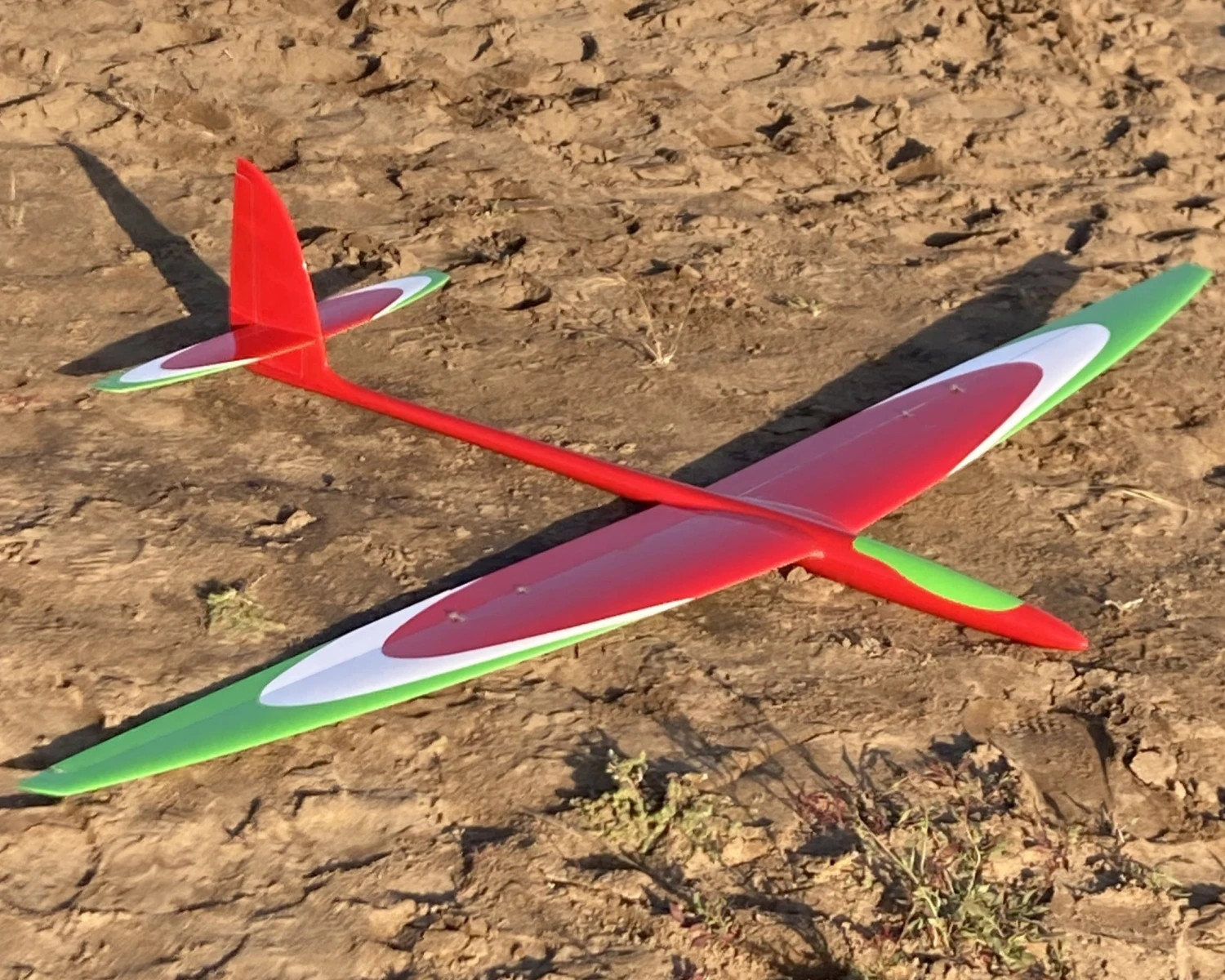

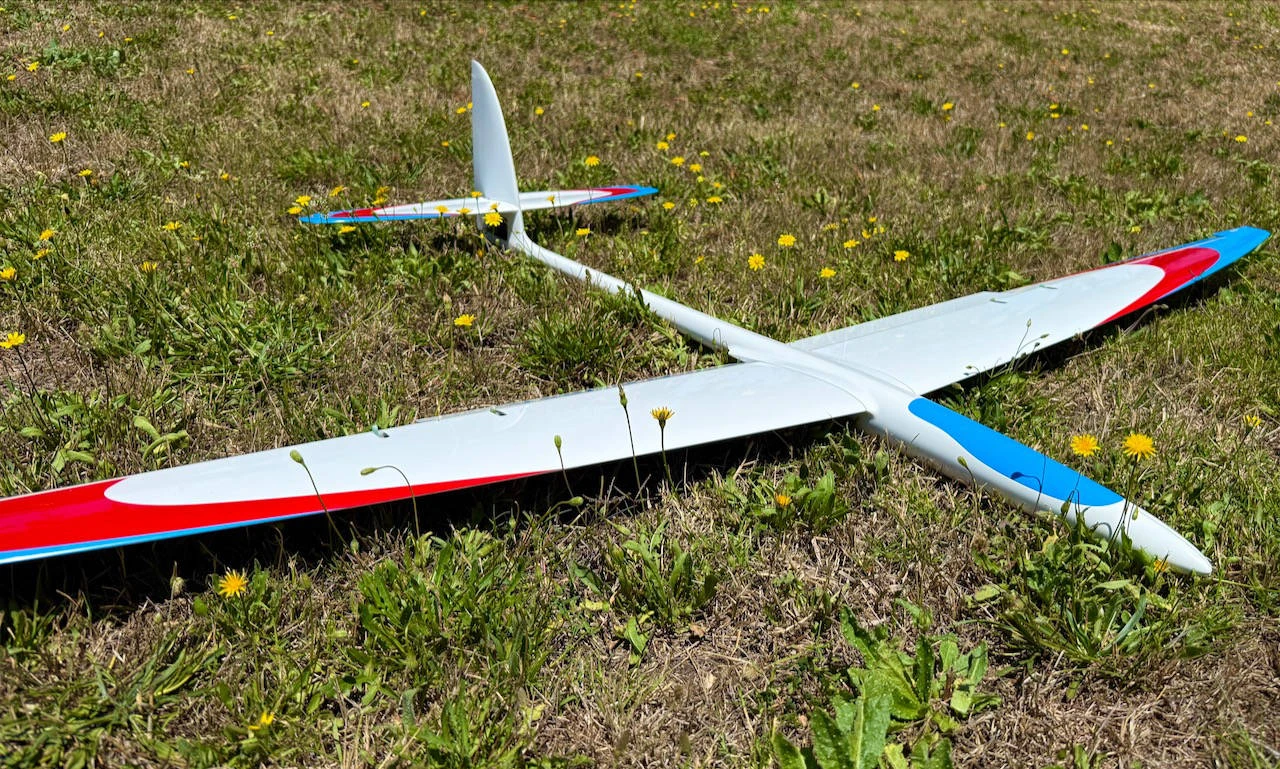

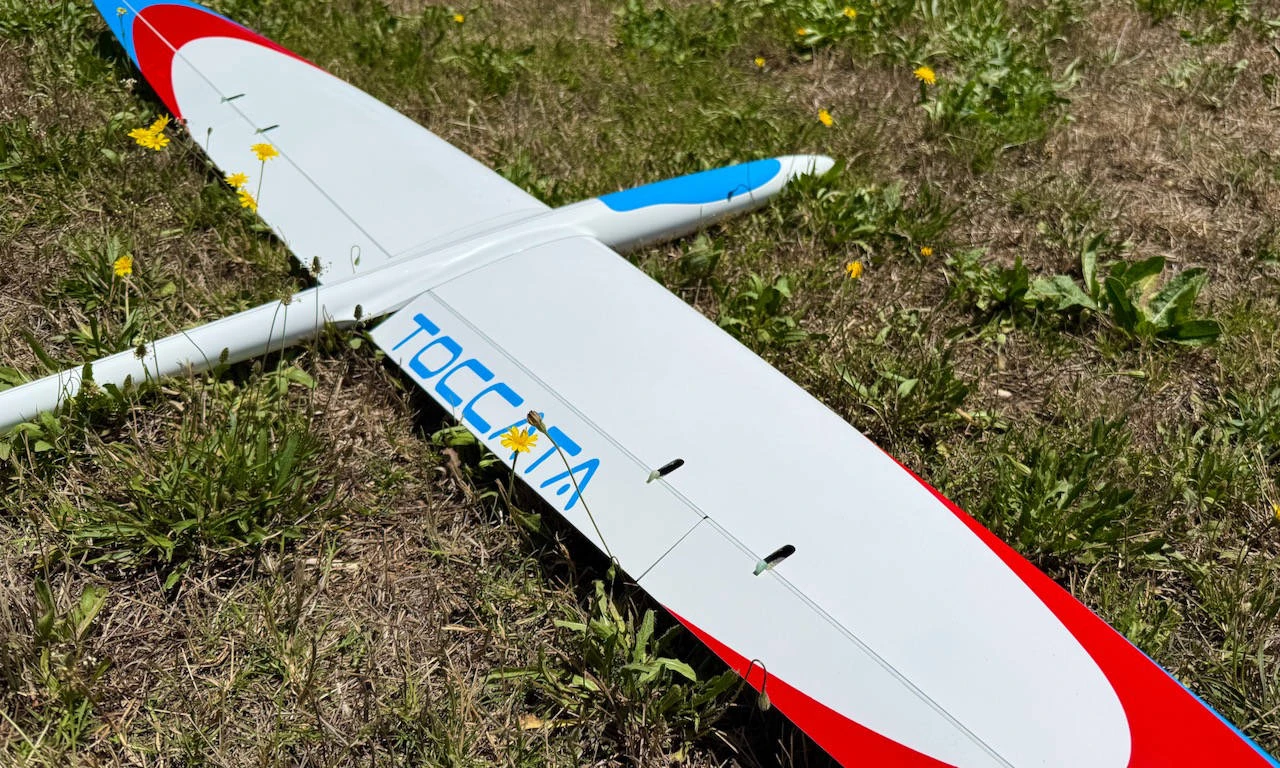

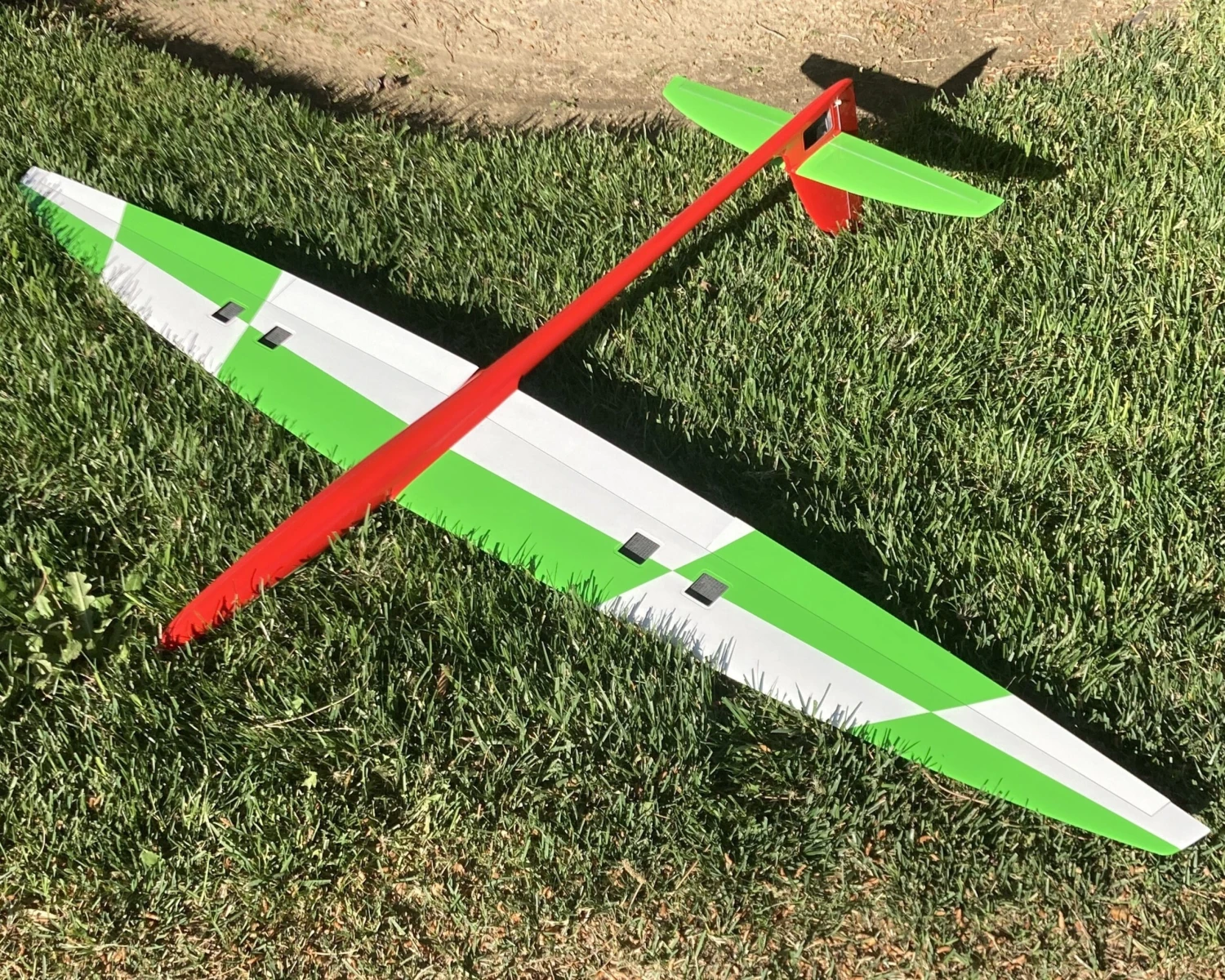

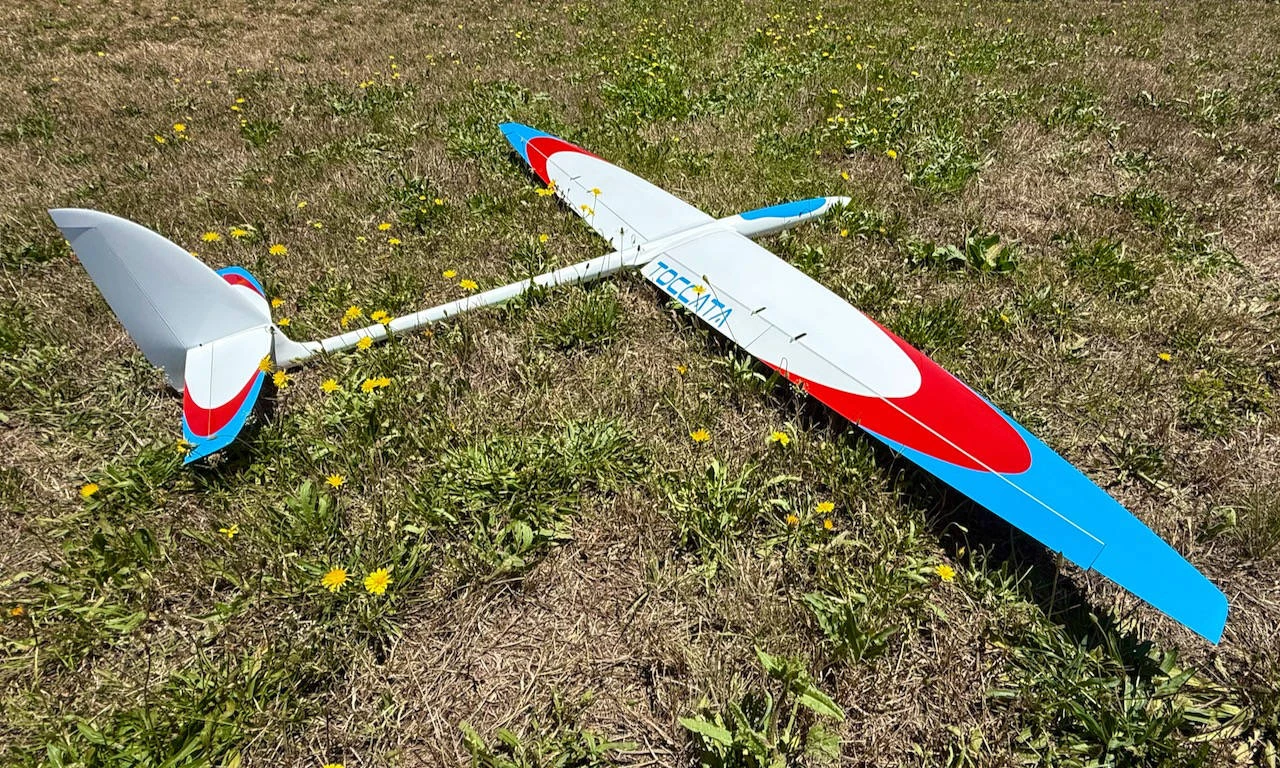

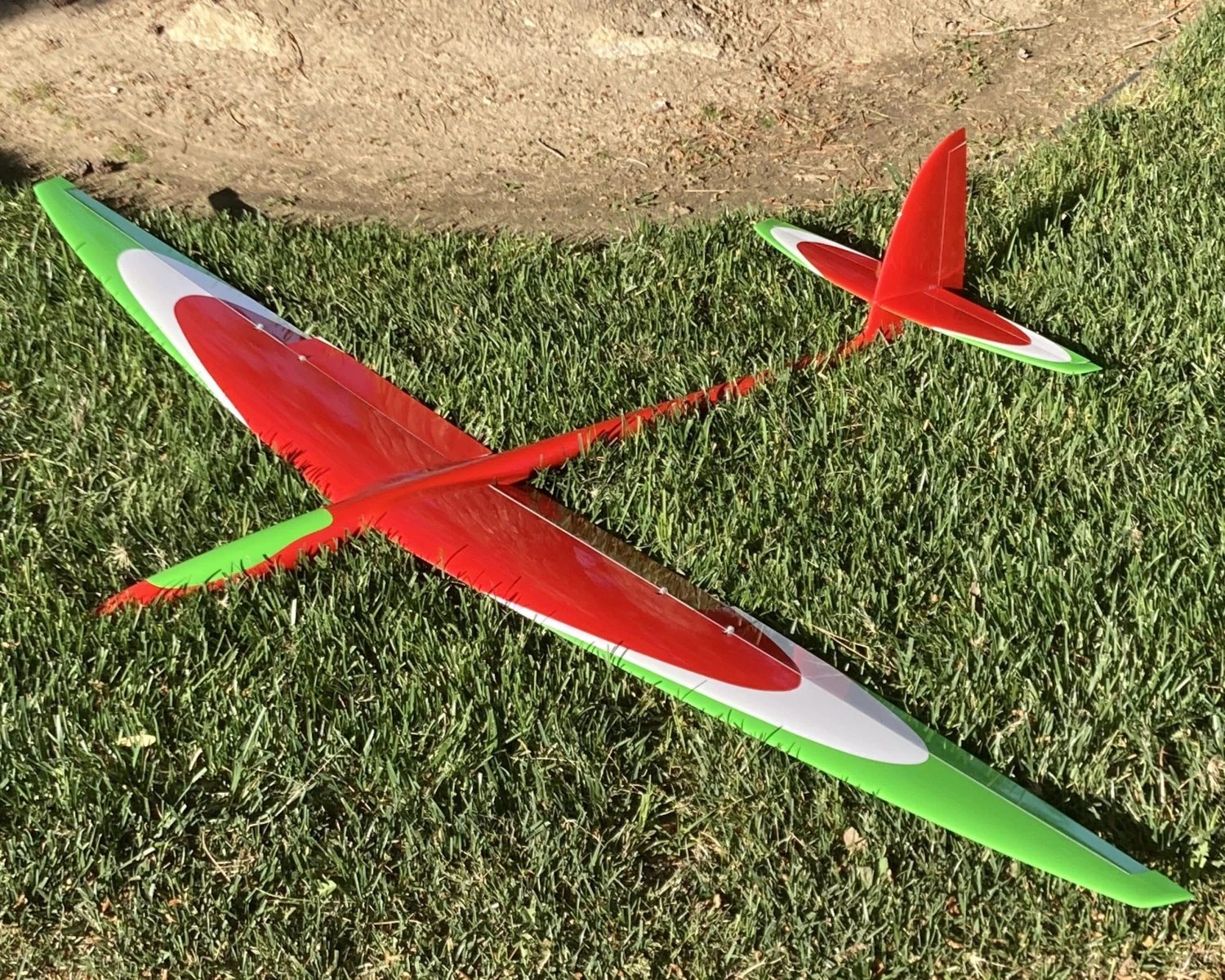

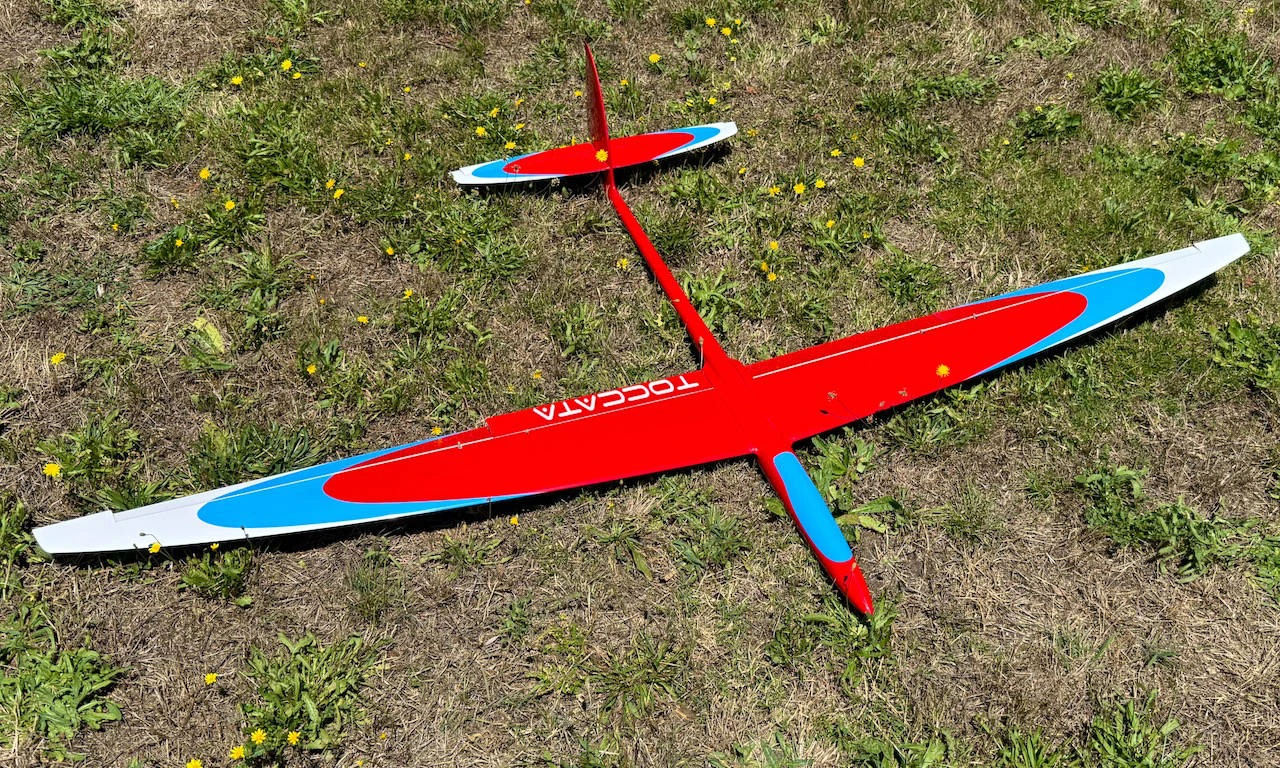

Toccata 2m By Aeroic

This is the long-awaited replacement for the classic Typhoon designed by Dr. James D. Hammond over 15 years ago. With over 2,500 sold, the Typhoon is now the biggest-selling 2-metre composite model of all time. Originally intended to introduce moulded models, it has been the first model for many, a trainer, and a good-flying, reliable, and easy-to-install model for hundreds of slope flyers.

Everything has been improved in the new version in both construction and aerodynamics, while the basic dimensions and curves that distinguish the model from its peers and have made it a classic remain. The all-new Toccata is lighter, stronger, faster, and slower on landing than the original; it maintains its easy-to-install radio and has the added benefit of better flying performance, especially in light winds and with better acceleration and more energy retention!

At Aloft we love the huge wing joiners in all of the Aeroic models.

Toccata is electric-ready with the removal of the nose.

The wings on all of Aeroic’s models are the result of decades of model design and refinement, There is no other models with this planform or airfoils. And this refinement really shows in the performance.

The “sinusoidal” wave spar creates a very strong and torsional wing:

• Wingspan: 2m (80”)
• Length: 950mm (37.375“)
• Wing area: 15.3dm² (237in²)
• Wing aerofoil: JH817, tailplane aerofoil: JH10SYM
• Designer: Dr. James D. Hammond

General Construction: GFK/CFK Hybrid
Wing Construction: Carbon with Aeroic Sine Wave Spar
Fuselage Construction: Strong Carbon/Kevlar Reinforced Glass (2.4Ghz friendly)

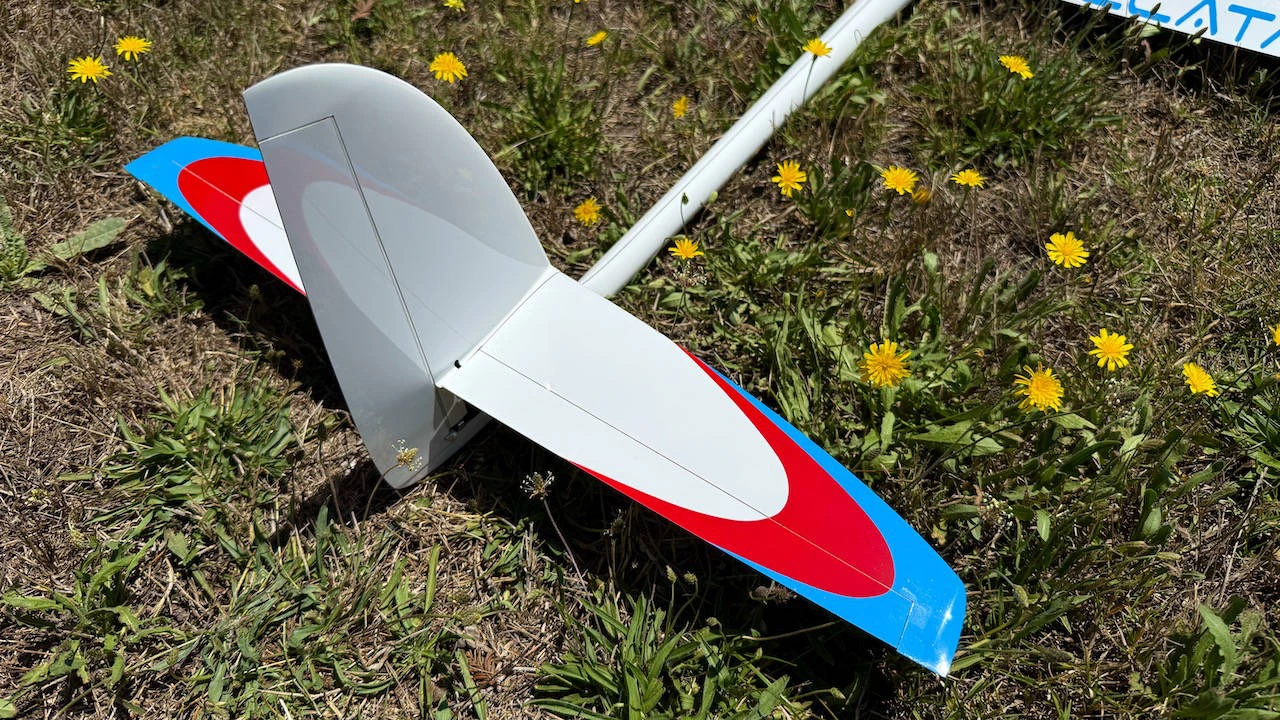

Wing and tailplane construction:

• High-strength gel-coat carbon reinforced glass wings in DPS sandwich build
• Clean, high-quality processing
• Painted in the mould


Fuselage:

• High-strength gel-coat carbon reinforced glass wings in DPS sandwich build
• Clean, high-quality processing
• Painted in the mould


Accessories included:

• Glass canopy with built-in keeper
• Glass servo covers (wing)
• Servo cover (fuselage)
• small parts, clevises included
• Pre-assembled wiring harness

Servo recommendations:

• Elevator: KST X08H (or similar 8mm servo)
• Rudder: KST X08H (or similar 8mm servo)
• Aileron: 2x KST HS08 (or similar 8mm servo)
• Flaps: 2x KST HS08 (or similar 8mm servo)

Suggested Throws:

• Elevator: 8 mm up / down
• Rudder: 35 mm left / right
• Aileron: 8 mm up, 6 mm down
• Flaps Landing: 85 degrees down
• Flaps Mix: 5 mm up, 5 mm down

Butterfly/Landing:

• Flaps: full down
• Ailerons 16 mm up (Optional)
• 6mm elevator compensation at full flaps down position.

(All mm data measured at the position of the largest control deflection)
