Top Model XPower XC 3522 – 5 LS 1000KV
Original price was: $104.00.$72.80Current price is: $72.80.
- The best quality products, always.
- Sustainable materials, for a better tomorrow.
- Control the delivery date and try to deliver it in the fastest time
- Safe and Secure Shopping

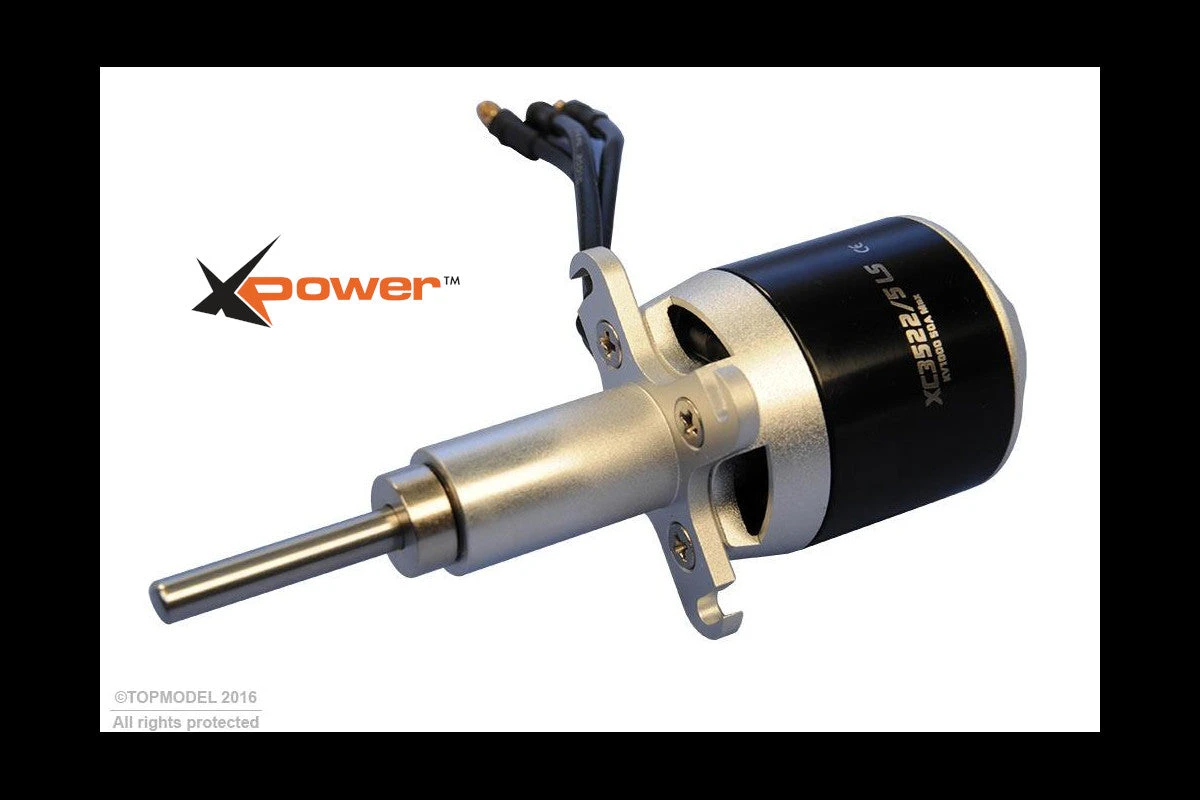

A new long shaft motor design from TopModel.

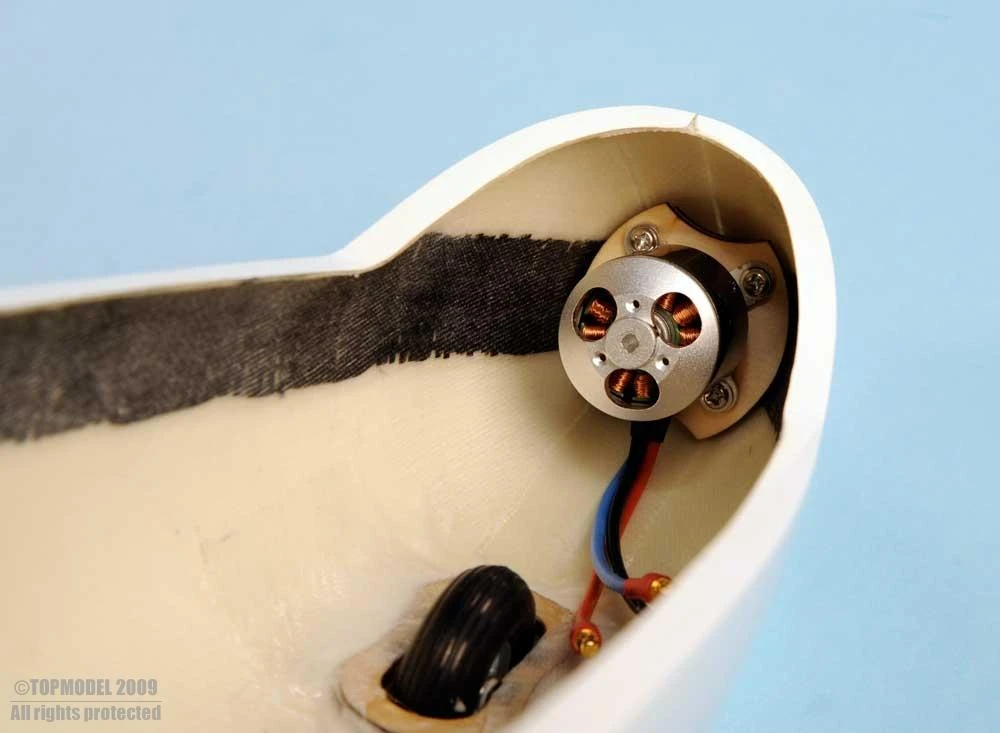

Have you ever run into the problem that your chosen outrunner diameter is too big to fit into the nose of your sailplane; or would you like to power your sailplane without cutting the nose off the fuselage?
Maybe this will help.

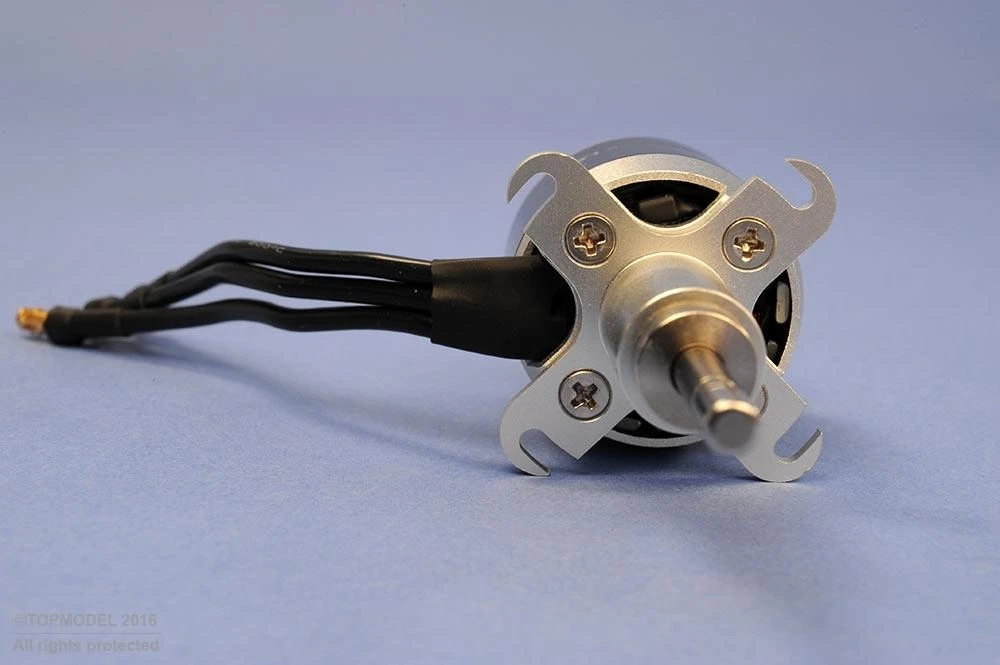

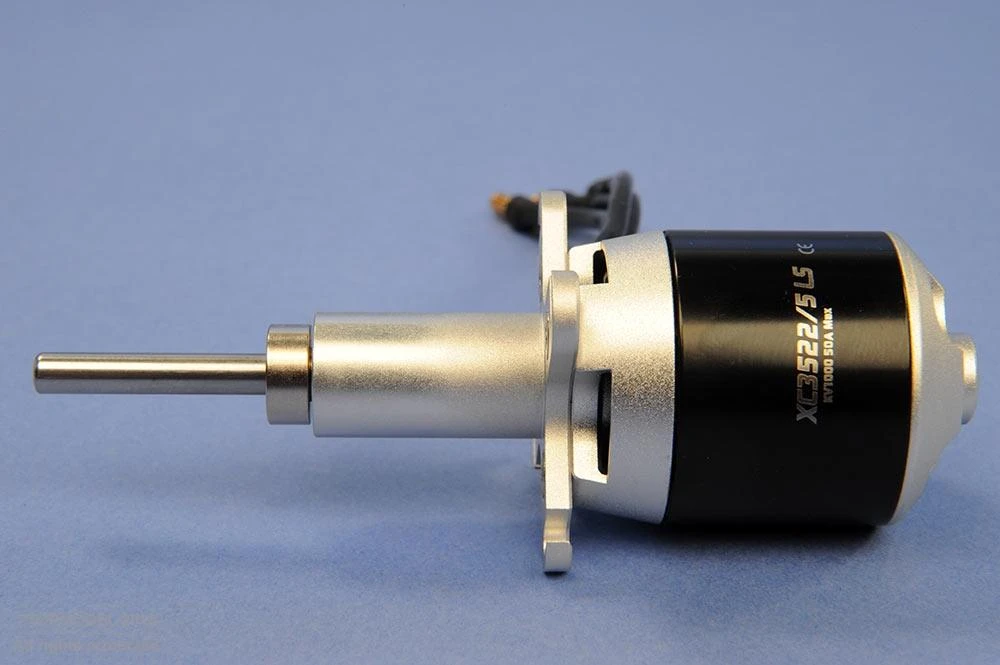

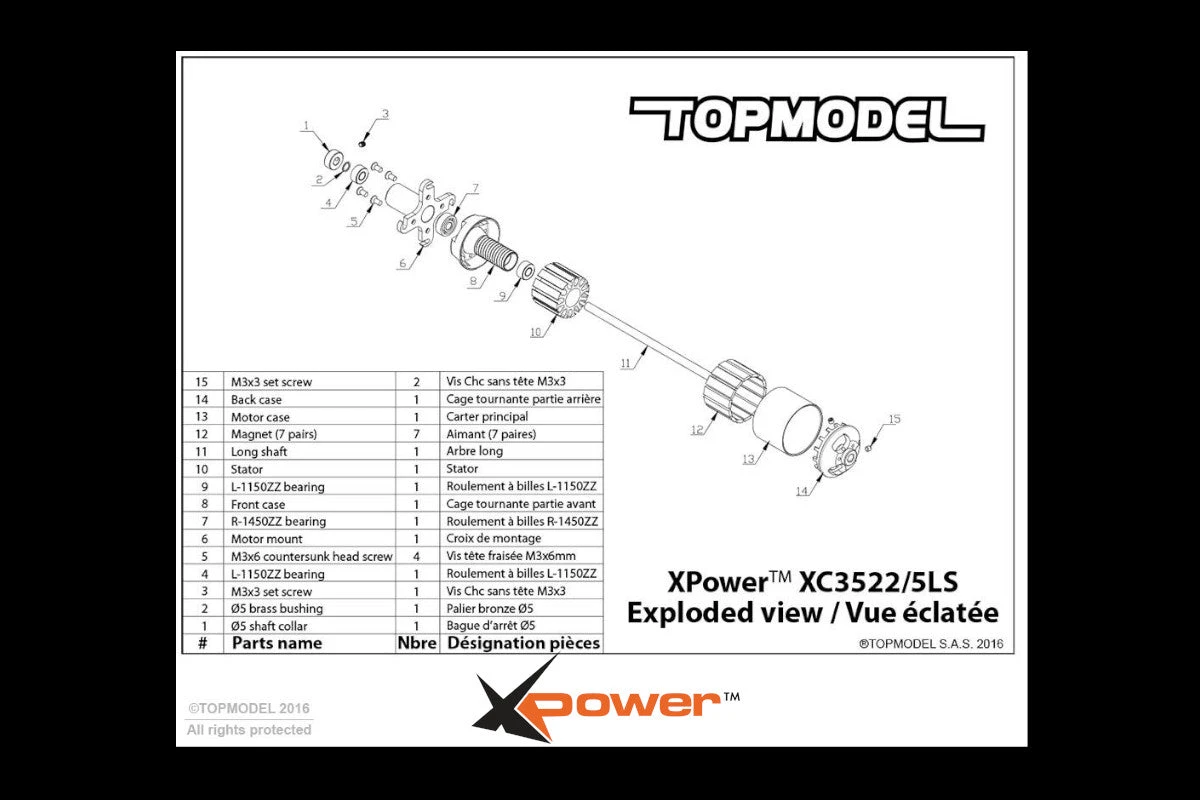

Basically, what we have here is a outrunner with a very long shaft and a machined aluminum bearing housing that bolts to the base of the outrunner. The bearing housing contains 2 ball bearings on the output end, bringing the bearing total to 5 ball bearings supporting the motor shaft (see exploded veiw on the pics above).
Specifications:
- Recommended number of cells: 2-3s LiPo
- KV: 1000
- Max current: 50A
- Internal resistance: 18.5mOhm

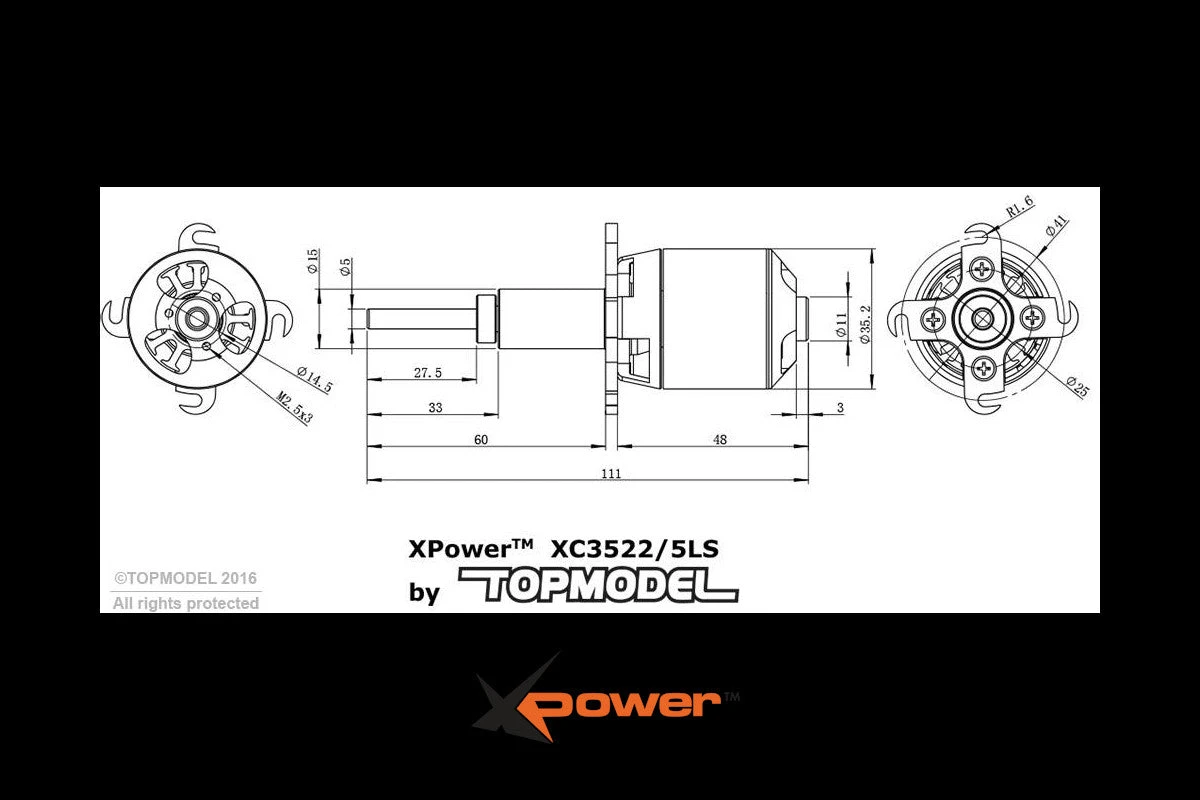

- Dimensions: Ø35×48
- Shaft Diameter: 5mm
- Weight: 165g
-

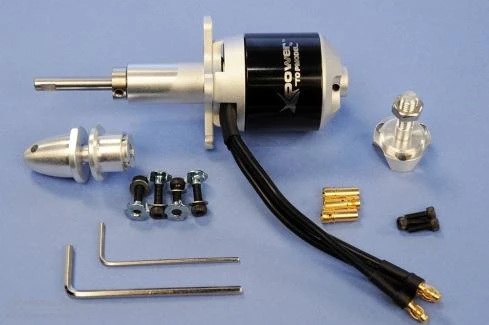

- Whats in the box:
- Long Shaft Motor
- Mounting Hardware (cap screws, washers, T-nuts)
- Female Bullet Connectors
- 2 Allen Wrenches
- Prop Nut and Collet
- Bolt on Prop Mount (See pics above)
