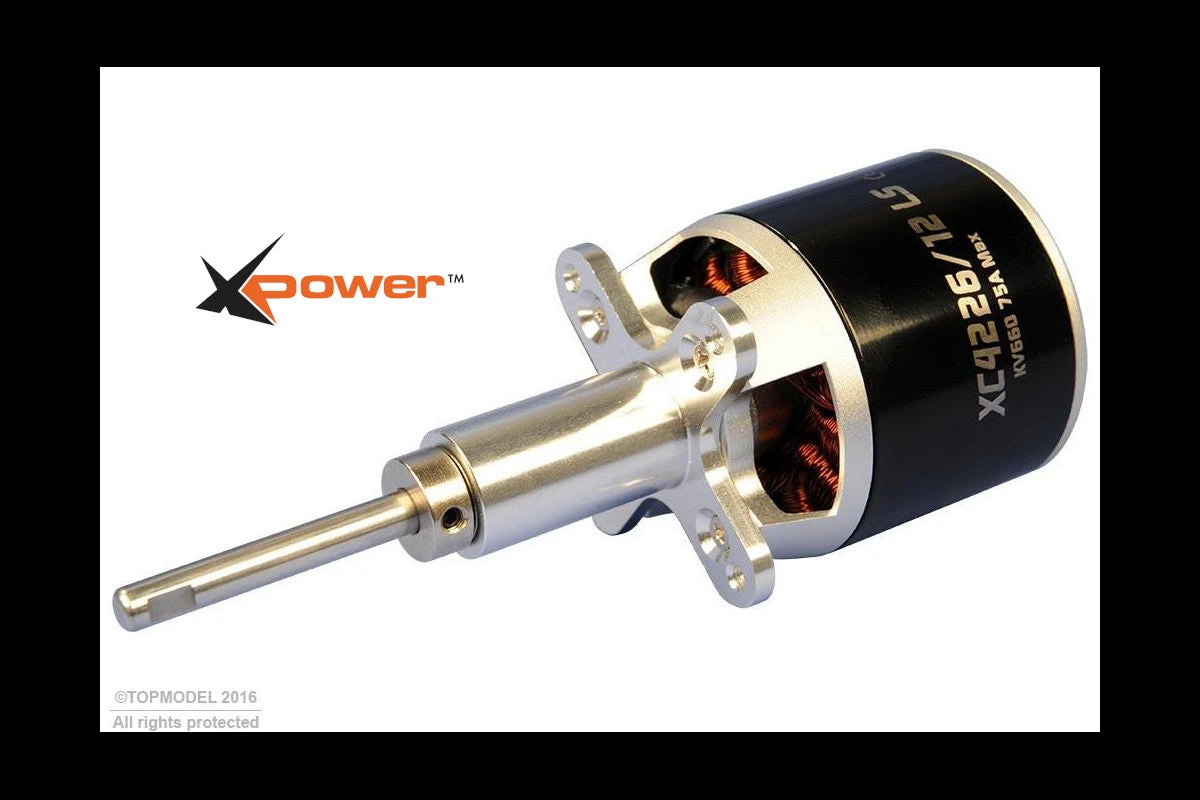

Top Model XPower XC 4226 – 12 LS 660KV

A new long shaft motor design from TopModel.

Have you ever run into the problem that your chosen outrunner diameter is too big to fit into the nose of your sailplane; or would you like to power your sailplane without cutting the nose off the fuselage?

Maybe this will help.

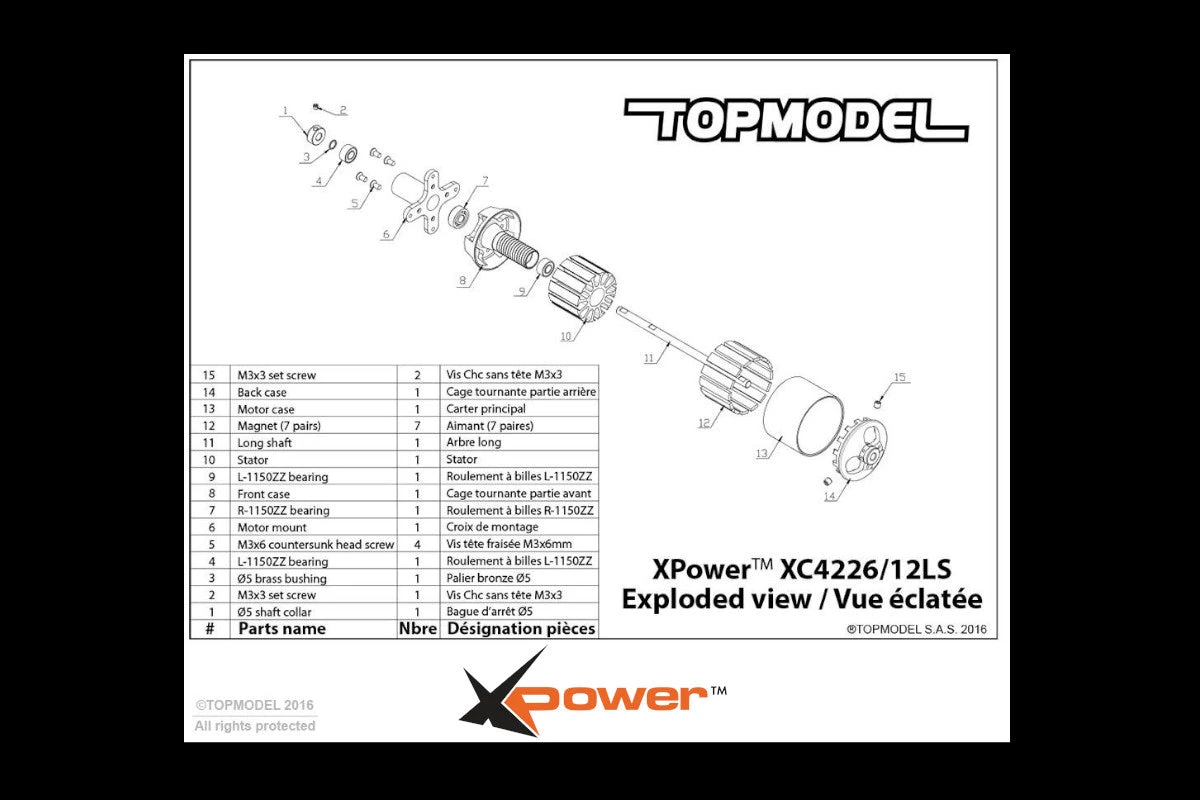

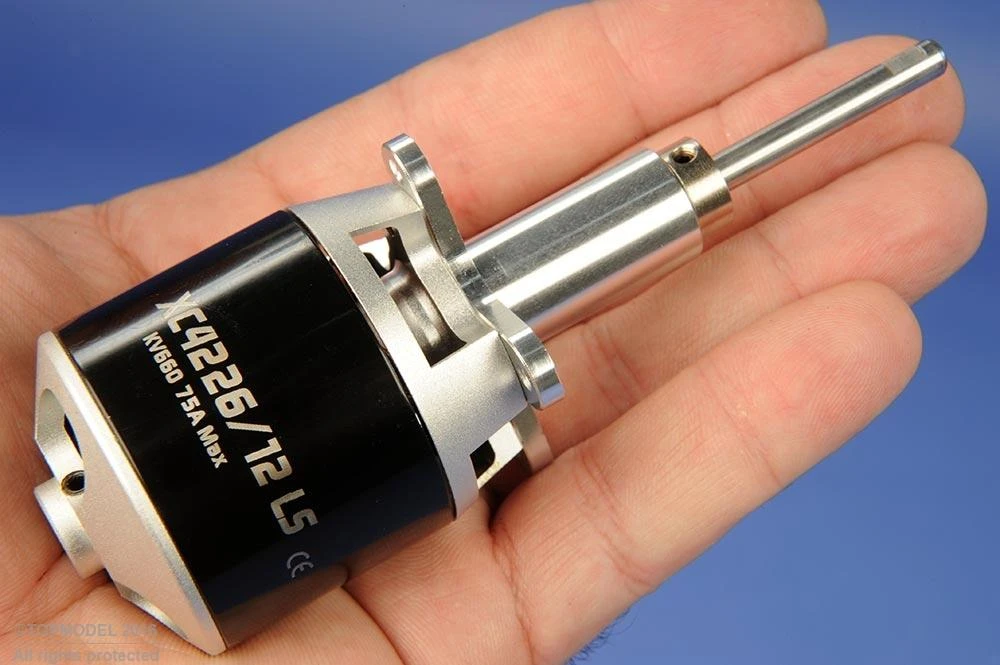

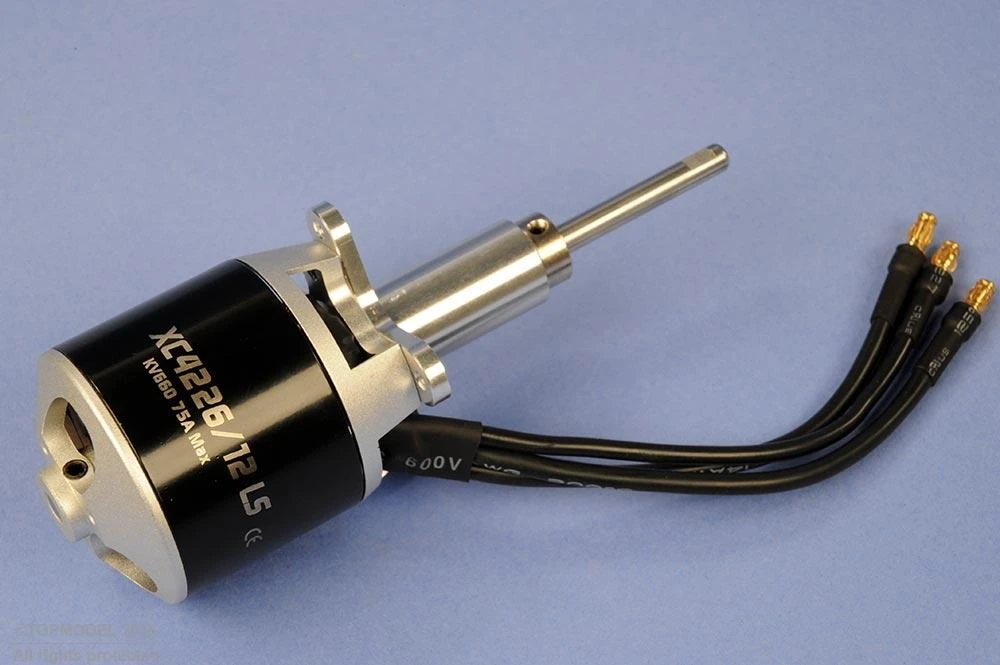

Basically, what we have here is a outrunner with a very long shaft and a machined aluminum bearing housing that bolts to the base of the outrunner. The bearing housing contains 2 ball bearings on the output end, bringing the bearing total to 5 ball bearings supporting the motor shaft (see exploded veiw on the pics above).

Specifications:

• Recommended number of cells: 4 LiPo
• KV: 660
• Max current: 75A
• Internal resistance: 18.5mOhm

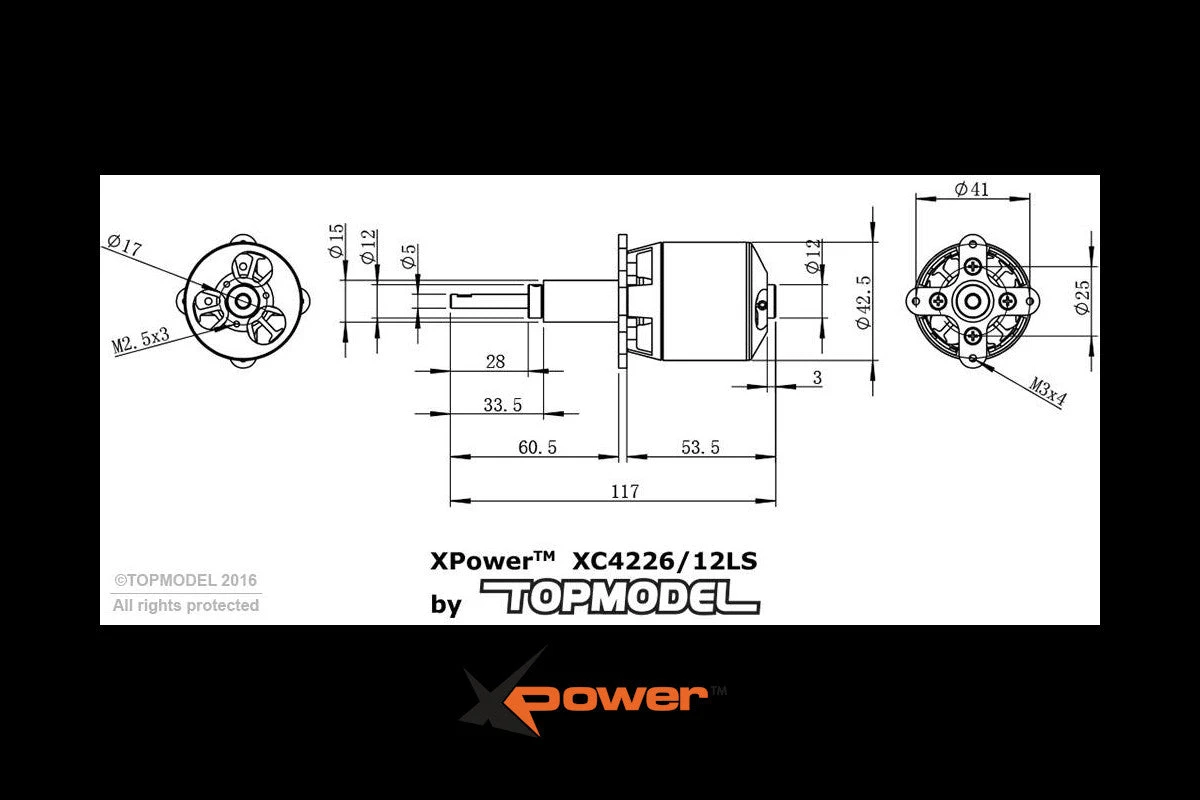

• Dimensions: Ø42×58 (90)mm
• Shaft Diameter: 5mm
• Weight: 280g

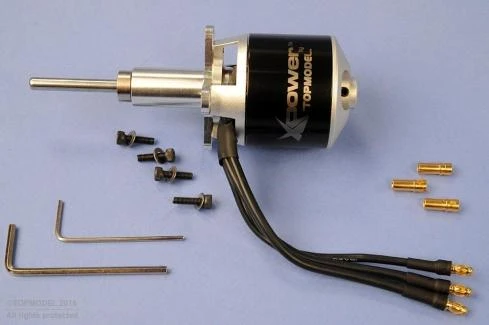

• • Whats in the box:

• Long Shaft Motor
• Mounting Hardware (cap screws, washers)
• Female Bullet Connectors
• 2 Allen Wrenches
